Hardware Setup
2-7

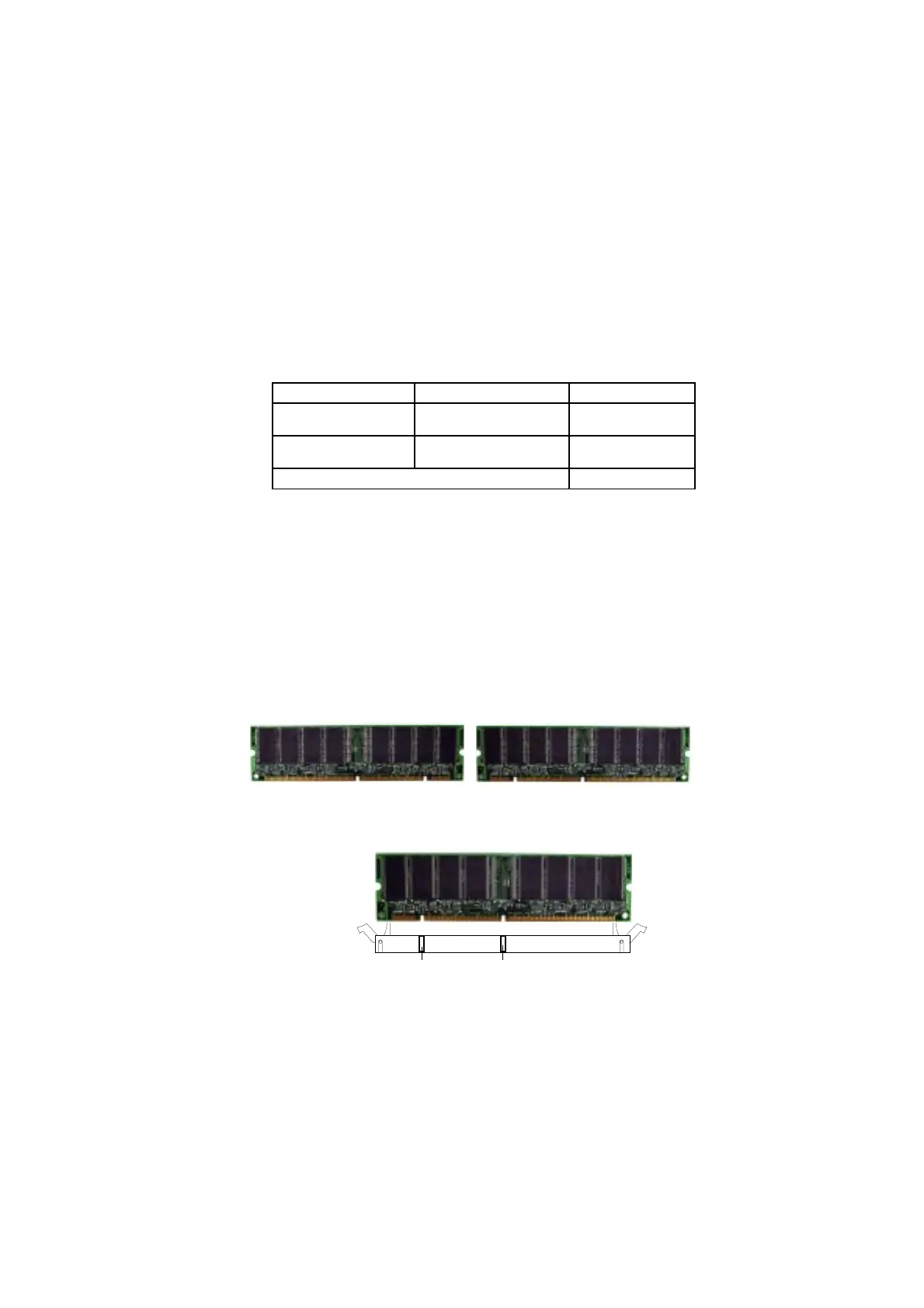

SDRAM Module Combination
You can install memory modules in any combination as follows:
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically close.
VOLTDRAM
Front View Rear View
Installing SDRAM Modules
Memory Population Rules
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be installed.
3. This mainboard supports Table Free memory, so memory can be installed on
DIMM1 or DIMM 2 in any order.
4. Supports 3.3 volt DIMM.
Slot Memory Module Total Memory
Slot 1
(Bank 0 & Bank 1)
64MB, 128MB,
256MB, 512MB, 1GB
64MB~1GB
Slot 2
(Bank 2 & Bank 3)
64MB, 128MB,
256MB, 512MB, 1GB
64MB~1GB
Total System Memory
64MB~2GB
