Chapter 2
2-18
I
2

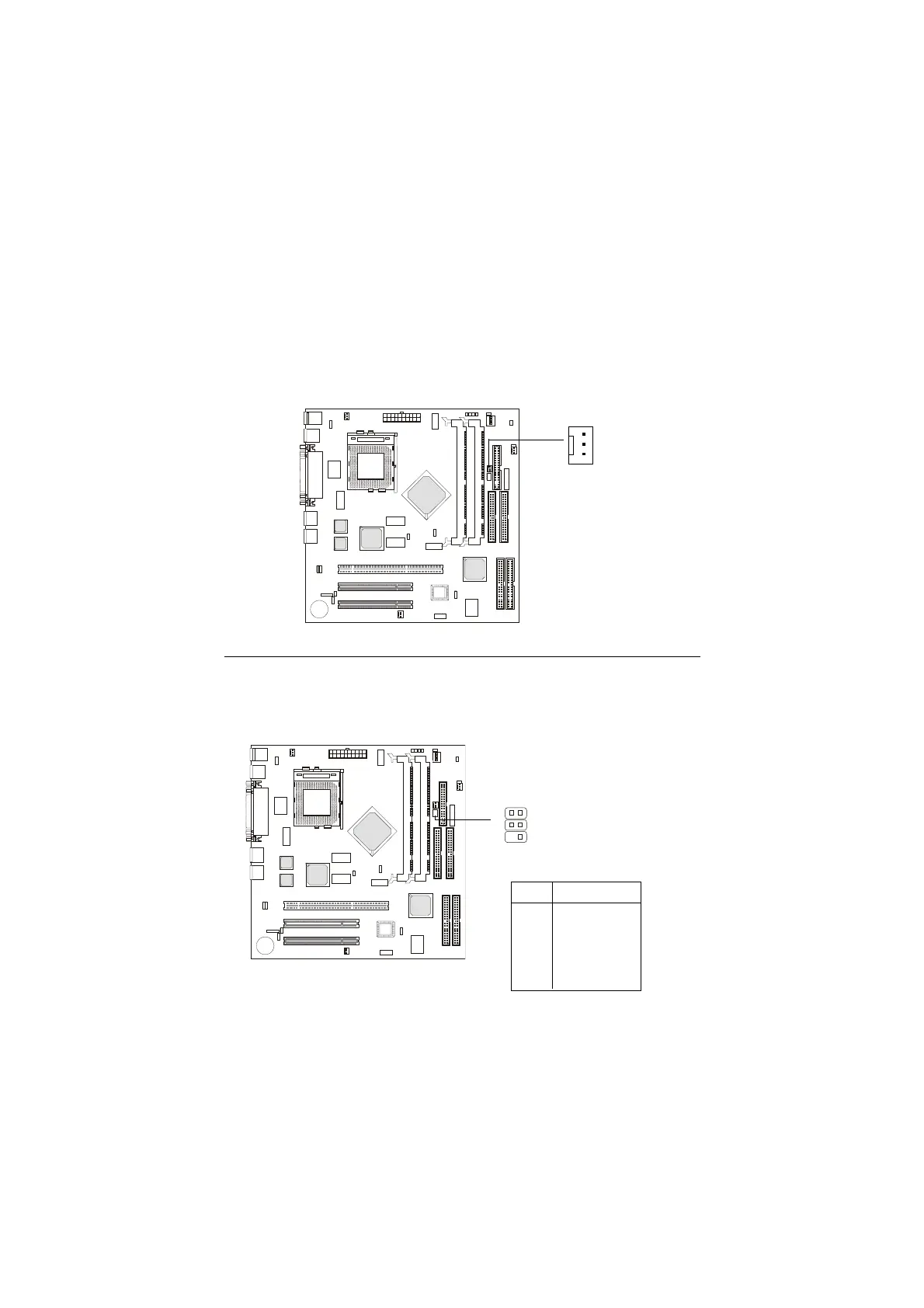

C Clock/Data Connector: HD THERM1
The connector is for connection to an external display to show I
2
C clock and
data.
Serial Connector: JDIP1
The connector is additionally provided for serial data input/output.
PIN
Assignments
1T
x
2R
x
3
GND0
4
GND1
5N
C
6
VCC
1 2
5 6
JDIP1
HD THERM1
I
2
C Data
I
2
C Clock
GND
34
36
