Hardware Setup
2-9

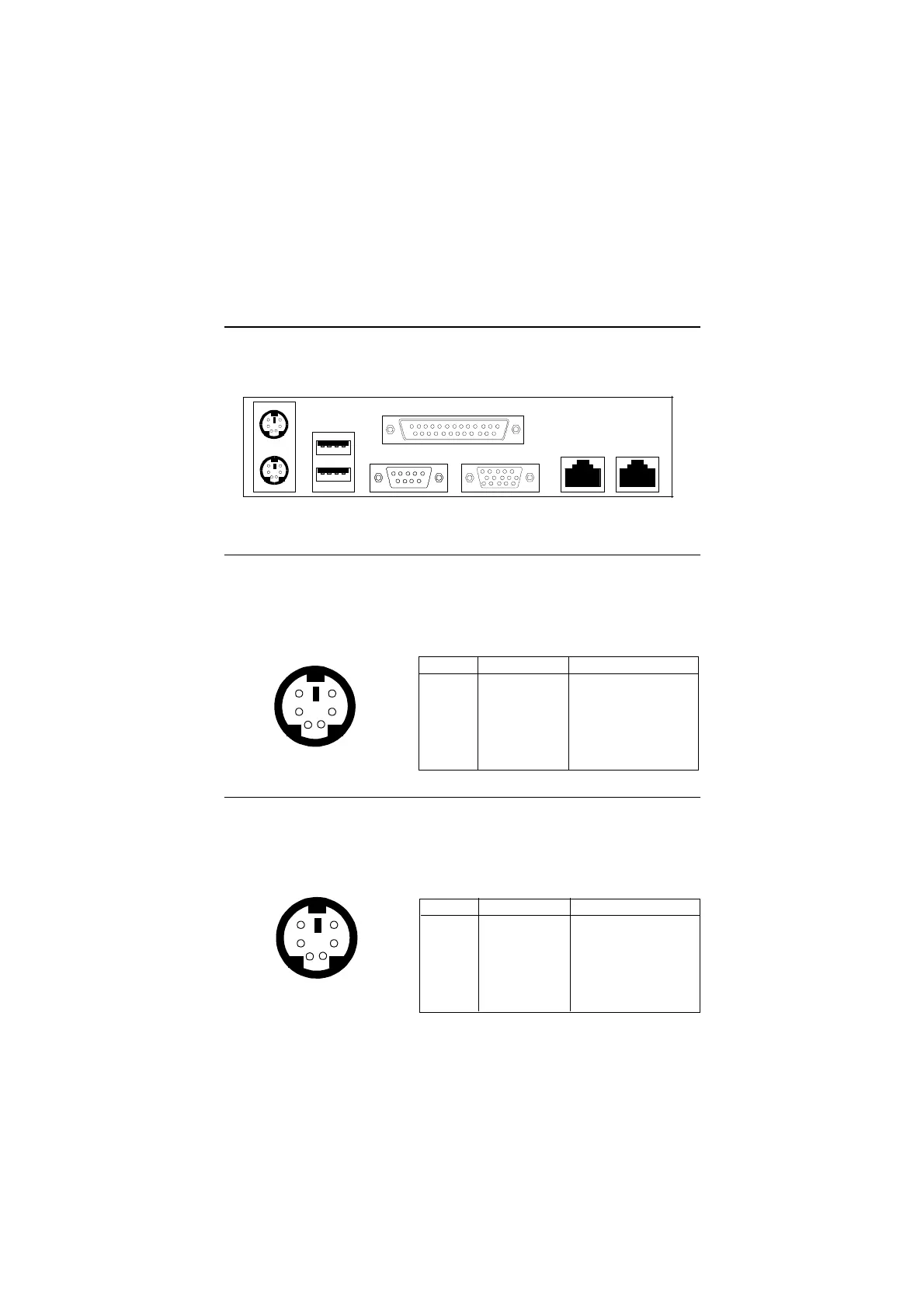

The Back Panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector for at-
taching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this connector.
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
Keyboard Connector
The mainboard provides a standard PS/2
®
keyboard mini DIN connector for
attaching a PS/2
®
keyboard. You can plug a PS/2
®
keyboard directly into this
connector.
21
34
5
6
PS/2 Keyboard (6-pin Female)
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
Mouse
Keyboard USB
Paralle Port
COM A VGA LAN 2LAN 1
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
