Chapter 3
3-8
Boot Seq & Floppy Setup

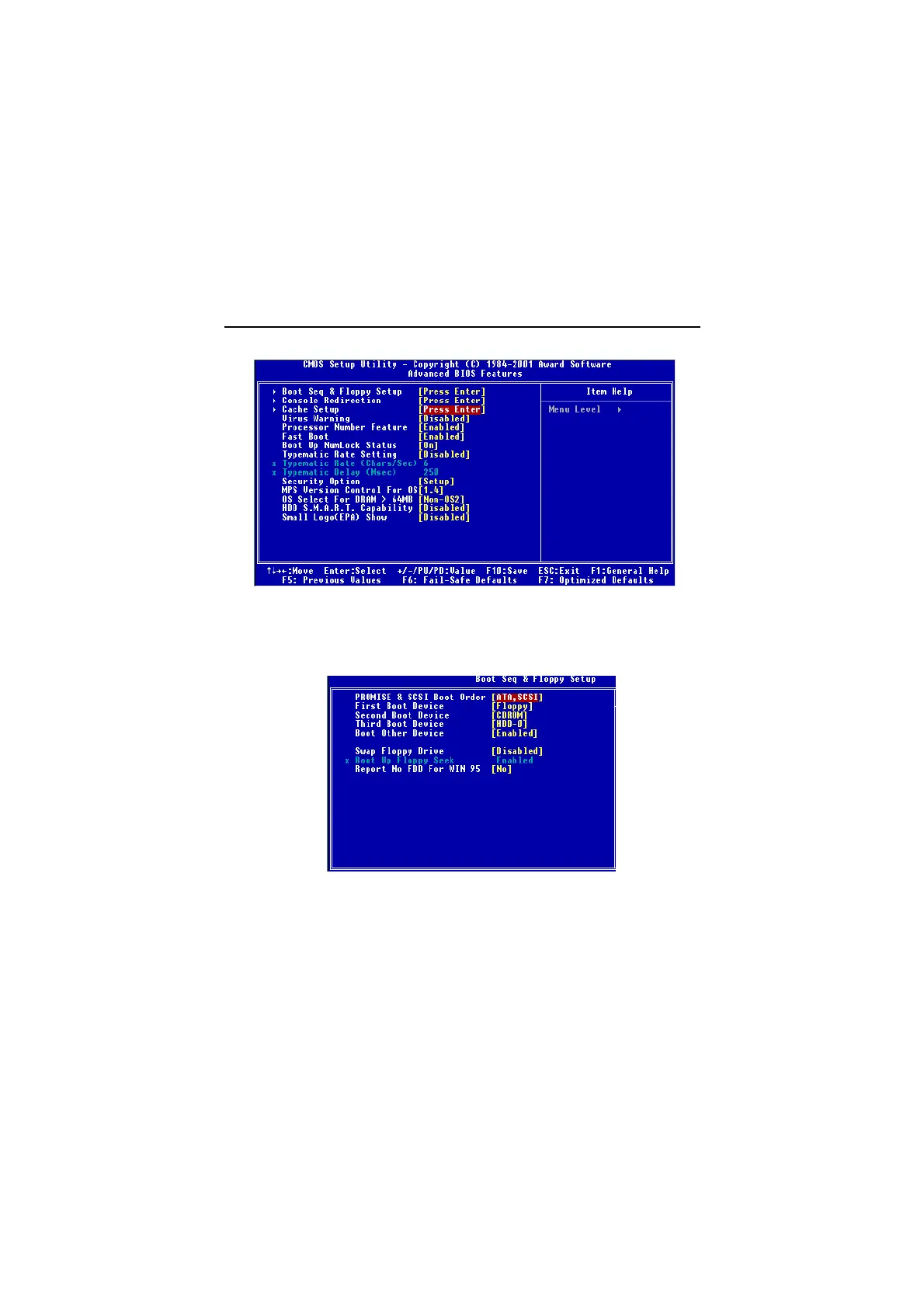

Press <Enter> to enter the sub-menu and the following screen appears:
Promise & SCSI Boot Order
This setting determines the boot order of the onboard IDE RAID device
and the external SCSI device. If no SCSI device is connected, the system
will automatically boot the onboard IDE RAID device. Setting options:
A
T
A, SCSI & SCSI, A
T
A.
Advanced BIOS Features
