Piston Inspection
1. Clean the piston and remove all carbon from the rings
and ring groves.
2. Clean the cylinder bore and remove all carbon.
3. Insert one ring into the cylinder. Push it down about
one inch from the top.
See Figure 10.8.
4. Measure the end gap with a feeler gauge and com-
pare to the chart at the end of this chapter.
See Figure 10.8.
5. Repeat steps 3 and 4 on the other rings.
NOTE: Piston rings are not available as service parts. If
any of the end gaps are out of spec, the engine
must be short blocked.
6. Install rings back onto the piston.
NOTE: The compression rings on the MTD engine have
different profiles. It is important that the proper pro
-
filed ring is on the right grove. See Figure 10.9.
NOTE: To help identify the top surface of the middle piston
ring, it has an “H” etched on it.
See Figure 10.10.

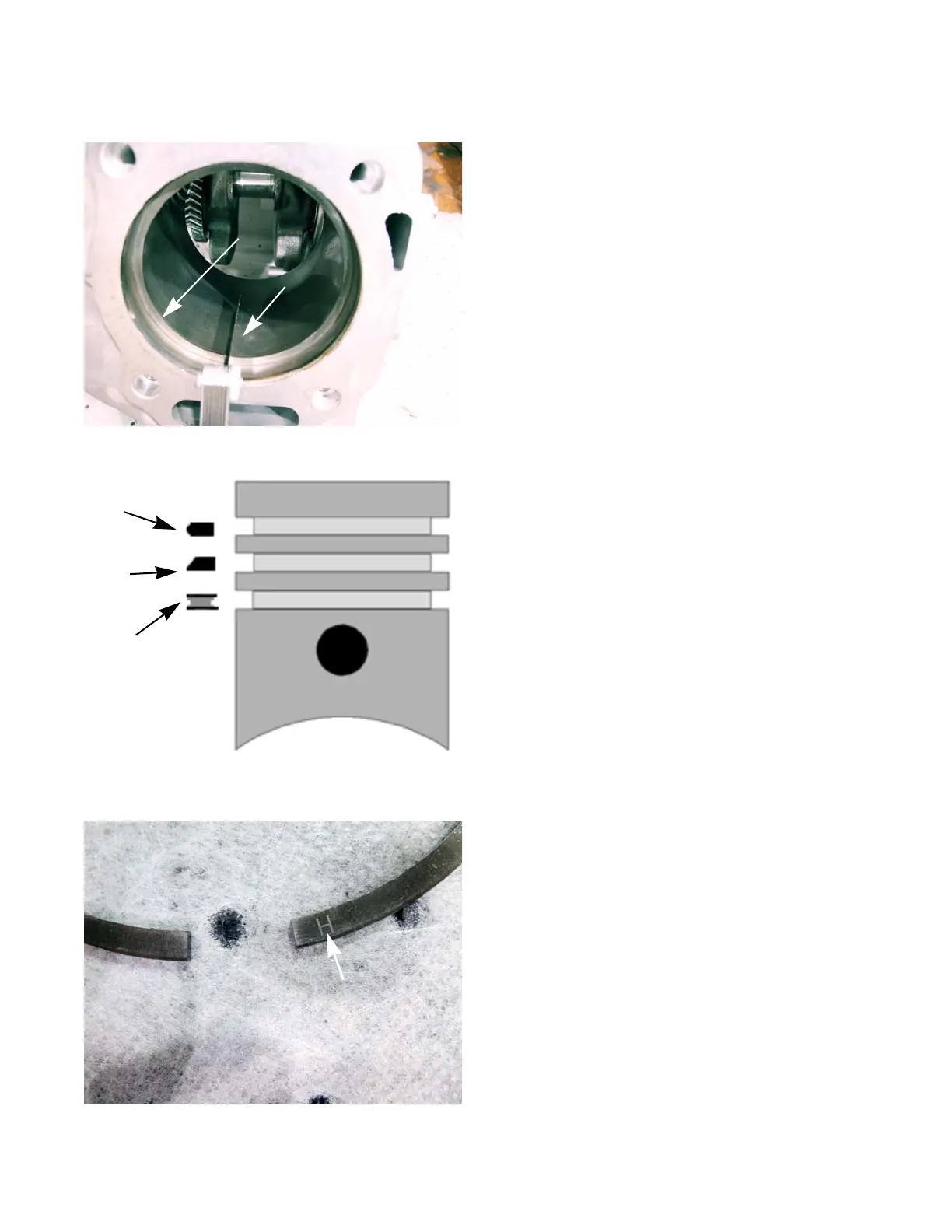

Figure 10.8
Feeler gauge
Piston ring
Figure 10.9
Top piston ring
Middle piston
3-piece oil ring
ring
Figure 10.10
“H” etched on the top surface
of the middle piston ring
