FUEL SYSTEM AND GOVERNOR
47
Roll over valve
To remove the roll over valve:
1. Gently pry the grommet from in between the roll over
valve and the fuel tank.
See Figure 4.18.
NOTE: Leaving the hose connected to the roll over valve
will help prevent it from falling inside the tank once
the grommet is removed.
2. Lift the valve out of the fuel tank.
3. Disconnect the hose.
To install the roll over valve:
1. Inspect the rubber grommet, replace if damaged.
2. Slide the rubber grommet over the roll over valve.
3. Press the roll over valve assembly into the fuel tank
opening.
NOTE: Soapy water can be used as a lubricant.
4. Install the hose from the canister.
5. Test run the engine in a safe area before returning to
service.

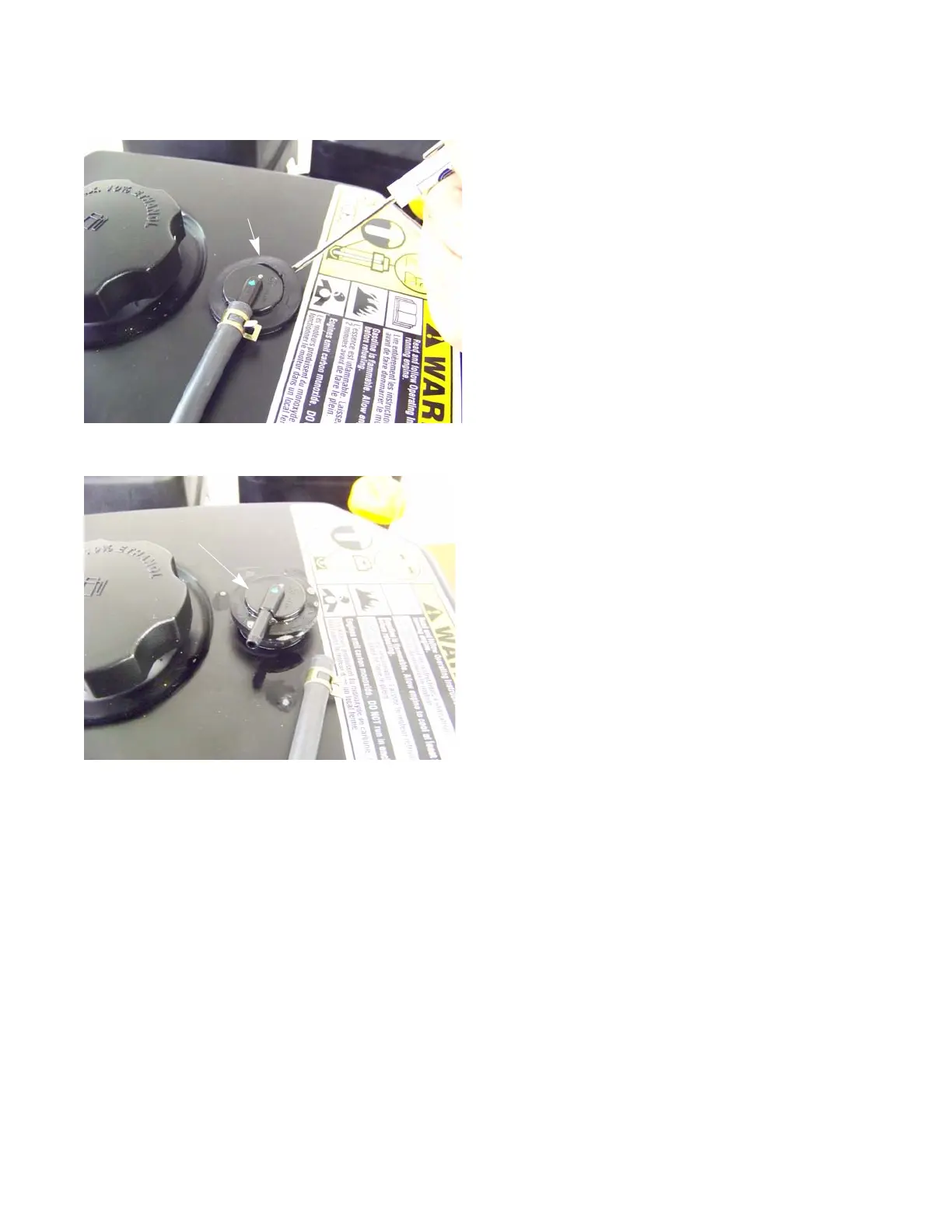

Figure 4.18
Grommet
Figure 4.19
Roll over valve assembly
