78/83/90 Series Horizontal Shaft Engines
34
Carburetor and Insulator
1. Siphon the fuel out of the fuel tank.
NOTE: Dispose of drained fuel in a safe and
responsible manner.
2. Remove the fuel tank front bezel using a 10 mm
wrench.
See Figure 3.11.
NOTE: The bezel may get stuck on the cup for the
recoil starter. If it does, the recoil starter is
easily removed with an 8 mm wrench.
3. Disconnect the fuel line from the fuel tank.
See Figure 3.12.

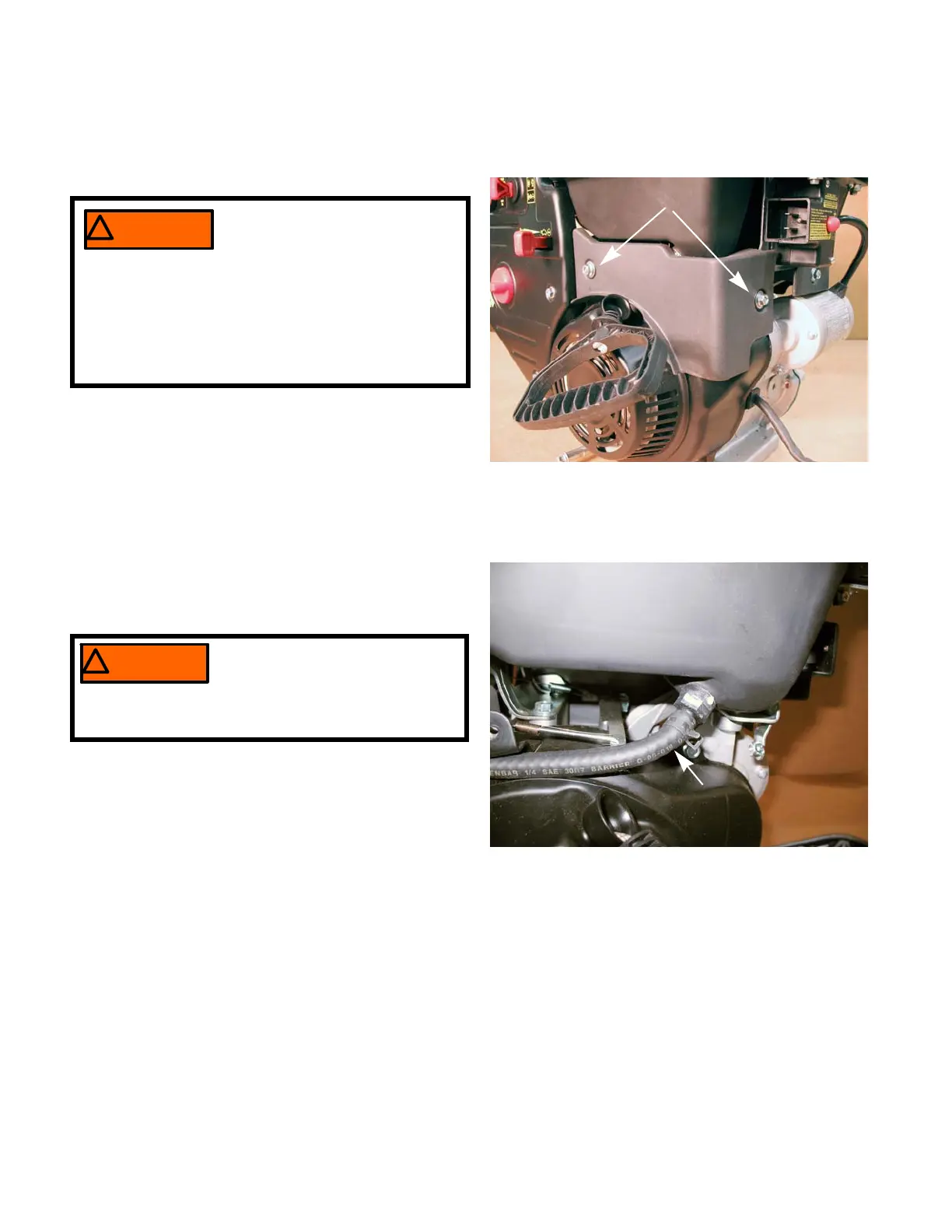

Figure 3.11
Remove these screws
To avoid personal injury or prop-
erty damage, use extreme care in
handling gasoline. Gasoline is
extremely flammable and the vapors are explo-
sive. Keep away from sources of ignition.
Serious personal injury can occur when gaso-
line is spilled on yourself and/or your clothes which
can ignite. Wash your skin and change clothes
immediately
! WARNING! WARNING
Figure 3.12
Remove the fuel line
from the fuel tank
! WARNING! WARNING
Residual fuel in the fuel tank will
come out when the fuel line is
removed. Wear safety goggles to
help prevent gasoline from splashing into your
eyes.
