MTD 78 Series User Manual

FUEL SYSTEM AND GOVERNOR
41
The fuel tank
To remove the fuel tank:
1. Drain the tank.
2. Remove the four screws that secure the fuel tank
using a 12 mm wrench.
See Figure 4.5.
3. Lift up on the fuel tank and disconnect the fuel line.
See Figure 4.6.
NOTE: On engines equipped with an EVAP system, dis-
connect the hose from the roll over valve.
See Figure 4.7.
4. Install the fuel tank by following the above steps in
reverse order.

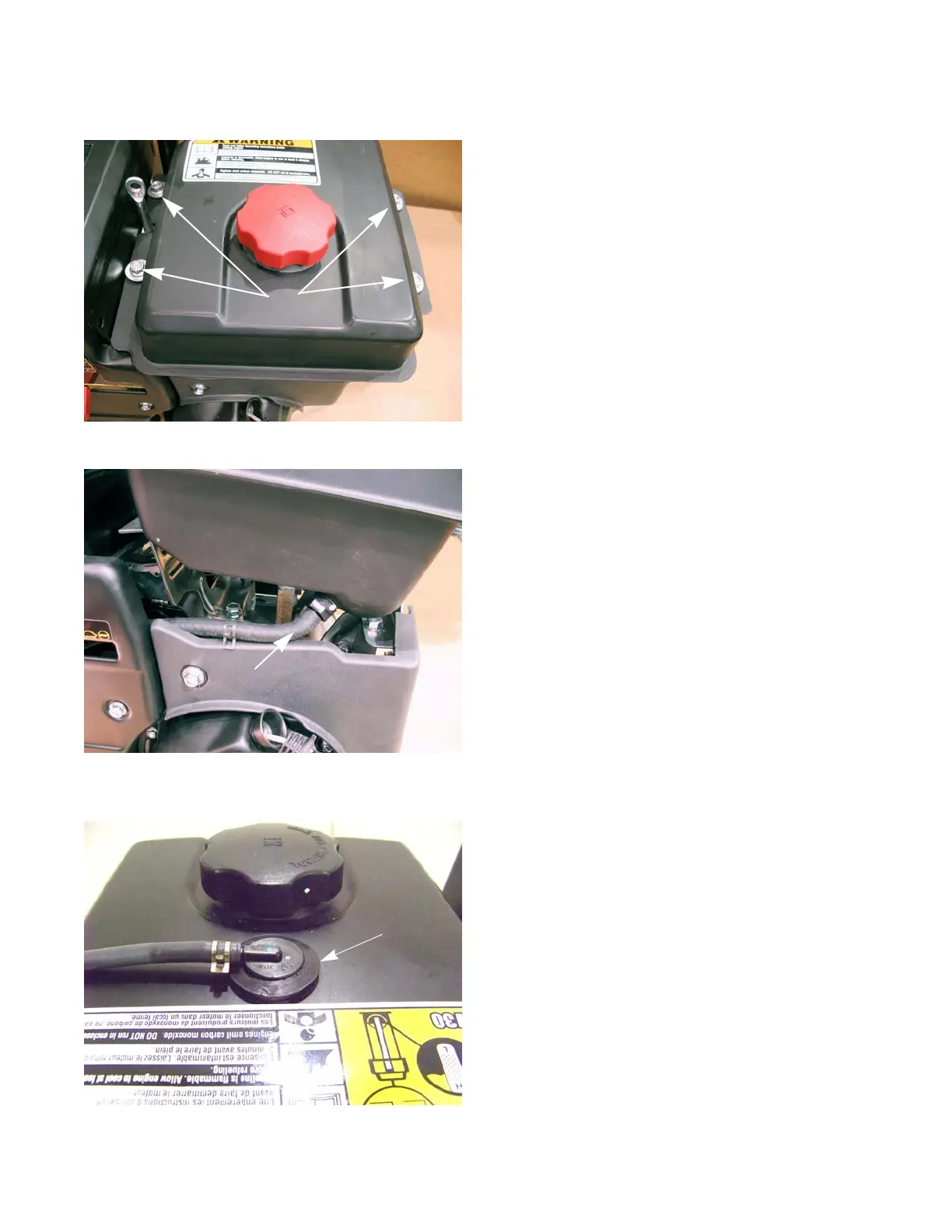

Figure 4.5
Remove these screws
Figure 4.6
Disconnect the fuel line
Figure 4.7
Roll over valve
