Starter and Charging System
75
Electric starter
The electric starter is only available on the snow engine. It is powered by an extension cord that is plugged
into household 120 volt AC current. The starter and switch assembly are one piece and are not serviceable.
To replace the starter assembly:
1. Disconnect the extension cord.
2. Remove the two screws that secures the switch box
to the engine.
See Figure 6.11.
3. Remove the starter by removing the two screws that
hold it to the engine block using a 10mm socket and
a long extension.
See Figure 6.12.

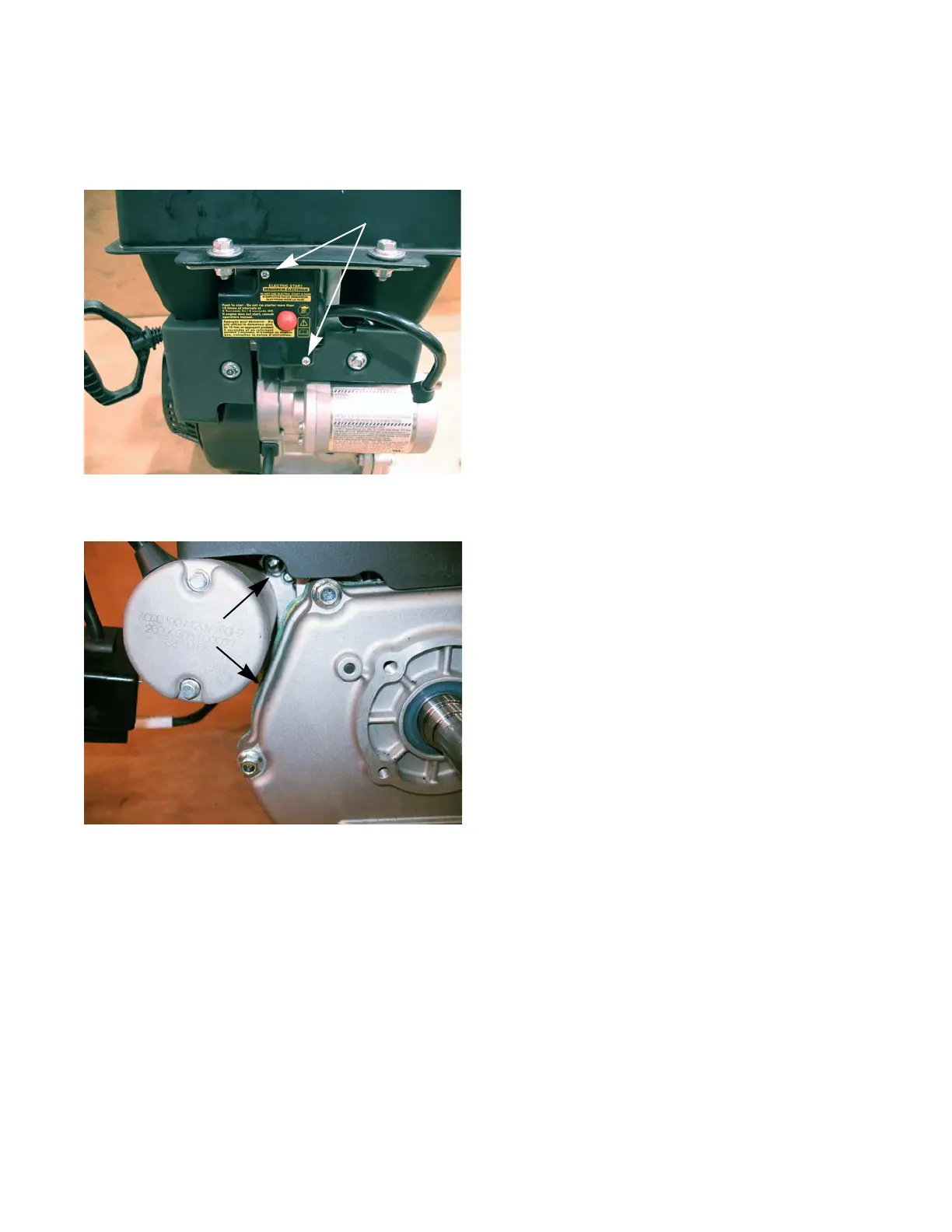

Figure 6.11
Remove these screws
Figure 6.12
Remove these
screws
