Adjustment
of
carbonated
water
ow.

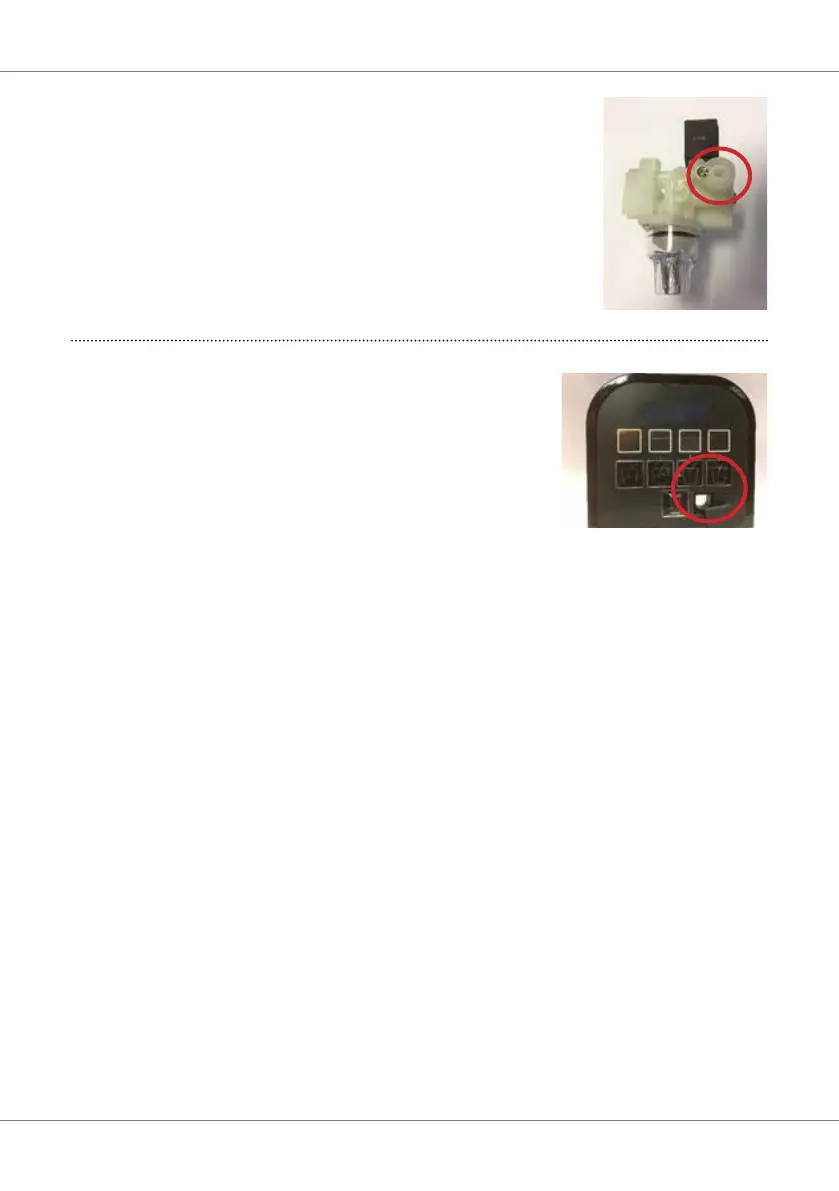

Thisvalvehasasingleowrestrictor,notaow
regulator. These can be adjusted using a 6mm
hexagon Allen key.
Carbonatedwaterowadjusterscrew.
Toincreaseow,turnadjusteranti-clockwise.
The adjuster is accessed by removing the cap in
the membrane switch panel
20
Section 3
19
21
Table of Contents
Table of Contents
3
Section 1 - Warnings
4
Co2 Cylinder Safety Information
8
Section 2 - General Description and Function of the Unit
9
Section 3 - Installation & Commissioning of the Unit
10
Extension Feet Parts
11
Unit Dimensions
12
Utility Connection Locations
13
Commissioning Instructions
13
Albi All-Carb Set up and Programming Instructions
14
Accessing Programming Mode and Button Operation
14
Putting the Unit into Programming Mode
15
Syrup Pump Priming Screen
16
Soda Flow Rate Test pour
17
Disable Carbonated Water Dispense
19
Option-To Switch off the Display Screen
19
Adjustment of Carbonated Water Flow
20
Fault Screens
30
Dispense Mode
30
Carbonator Fill Time out
30
Re- Priming the System if the Bag in Box Syrup Runs out
30
ALBI AQUA – Installation & Commissioning
31
ALBI AQUA - Commissioning Instructions
32
Albi & Albi Aqua Dispenser Wiring Diagram
34
ALBI & ALBI Aqua - Maintenance and Cleaning
35
Section 4 - Maintenance and Cleaning
35
Basic Inspection Checks by the End User
36
Twice Annually
36
Annually
36
Monthly
36
Albi 4 –Dispense Font Cleaning - “Installed Units”
37
Sanitizing
44
Beverage System Cleaning
44
Bag-In-Box System Sanitation
44
Exploded View Showing Panels
46
Section 5 - Spare Parts List
46
General View with no Side Panels
47
Refrigeration System \ Warm Drinks
57
Section 6 - Fault Finding Charts
57
Unit will Not Dispense Drinks And\Or Gas Only
58
Flat Drinks
59
Incorrect Mixture Ratio (Weak or Strong Drinks)
60
ALBI AQUA – Fault Finding
61
Section 7 - Technical Specification
62
Albi Aqua Variants
63
Section 8 - Declaration of Conformity
64
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Multiplex ALBI 4 Series and is the answer not in the manual?
