1 DIGITAL AUDIO IN (COAXIAL 1-3, OPTICAL 1-3)
r Connect to the corresponding optical or coaxial digital output of
sources such as CD or BD/DVD players, digital cable box, digital
tuners and other applicable components.
r Coaxial and Optical digital input association is congurable via the
Source Setup item of the Setup Menu OSD.
DIGITAL AUDIO OUT (OPTICAL, COAXIAL)
r Connect the optical or coaxial DIGITAL OUT to the corresponding
digital audio input of compatible devices such as receivers,
computer soundcard or other digital processors.
2 HDMI (HDMI IN 1-6, HDMI OUT 1-2)
r Connect the sets of HDMI input to the HDMI OUT connectors of
source components such as DVD player, BD player or HDTV satellite/
cable box.
r Connect the HDMI OUT 1 and/or HMDI OUT 2 to compatible HDTV
or projector with HDMI input. Both HDMI output ports display
simultaneously the same audio/video source.
WARNING
Before connecting and disconnecting any HDMI cables, both the T 777
and the ancillary source must be powered OFF and unplugged from the
AC outlet. Failure to observe this practice may cause permanent damage
to all equipment connected via HDMI sockets.
3 AUDIO 1-6/VIDEO 1-3/S-VIDEO 1-3
r These comprise the T 777’s other sets of principal input. Connect
these audio and video input ports to corresponding output ports of
compatible source components such as DVD players, CD players or
cable/satellite boxes.
r AUDIO 5 and S-VIDEO 3 are the assigned default ports for the audio/
video output of the separately sold NAD IPD (NAD IPD Dock for
iPod) 1, NAD IPD 2 and later variants.
AUDIO 3-4 OUT
r Connect AUDIO 3 OUT (and/or AUDIO 4 OUT) to corresponding
recording components or audio input ports of compatible sources
like cassette deck, CD/DVD recorder or outboard audio processors.
r The signal present at AUDIO 3-4 OUT is determined by the current
source selected. There will be no output at AUDIO 3 OUT when
AUDIO 3 is selected. Likewise, there will be no output at AUDIO
4 OUT when AUDIO 4 is the active source input. This prevents
feedback through the recording component thereby preventing
possible damage to your speakers.
r When congured, AUDIO 3 OUT and AUDIO 4 OUT are the same
assigned ports for Zone 3 and Zone 4 respectively. See also Zone
output description below.
IDENTIFICATION OF CONTROLS

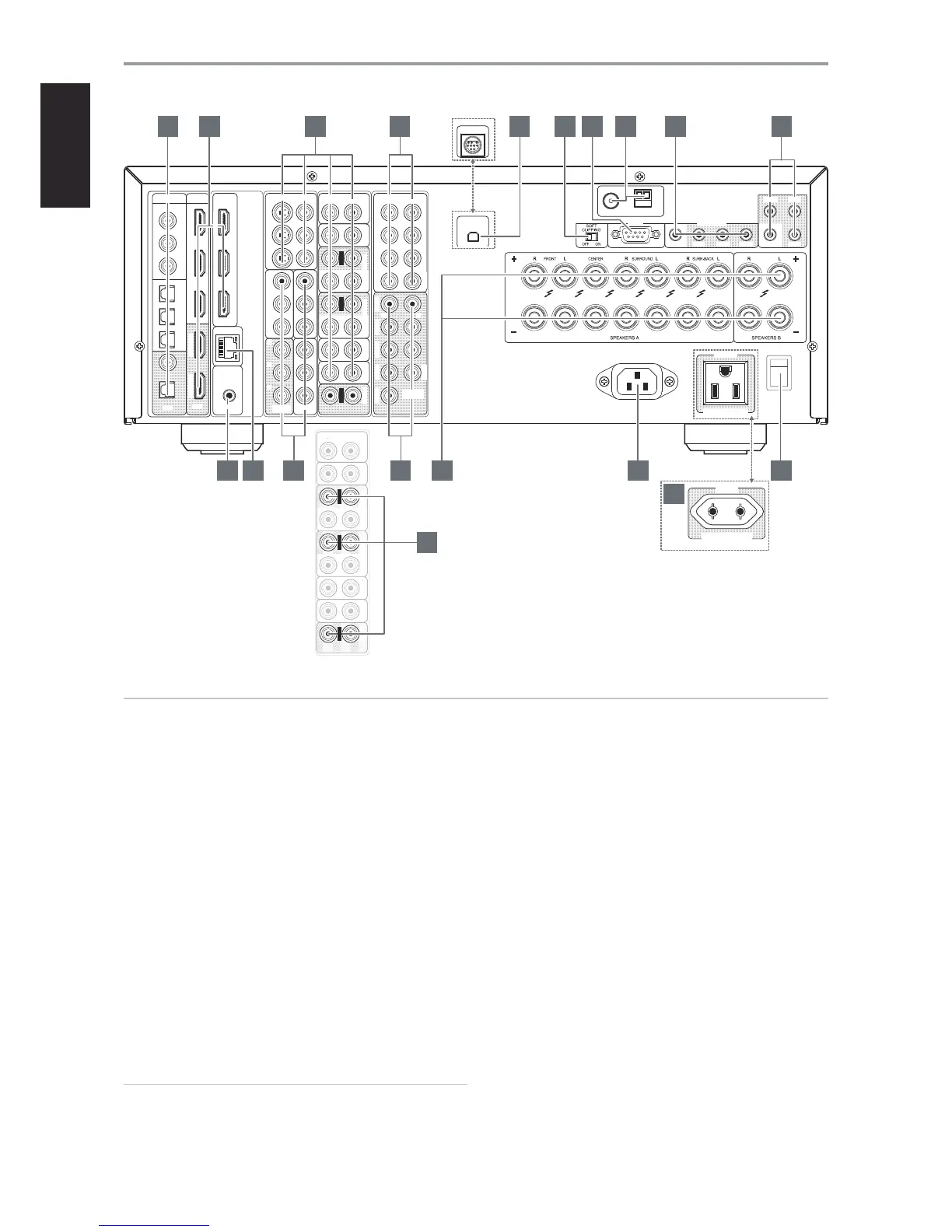

REAR PANEL
© NAD T 777
AUDIO 6 AUDIO 5 OUT AUDIO 4 IN OUT AUDIO 3 IN AUDIO 2 AUDIO 1 ZONE 2
R
AUDIO
L
A
DI
A
DI
T A
DI
4 IN
T A
DI
IN A
DI
A
DI
Z
NE 2
A
DI
ZONE 4 ZONE 3 ZONE 2
SUBW
SUBW 2
SUBW 1 CENTERSURR-BSURRFRONT
R L
AUDIO
PRE-OUT
CENTERSURR-BSURRFRONT
AUDIO 6 AUDIO 5
YP
B PR
Y3 2 1PB PR
YPB PR
YPB PR
OUT AUDIO 4 IN
ZONE 4 ZONE 3 ZONE 2
OUT AUDIO 3 IN AUDIO 2 AUDIO 1 ZONE 2
HDMI IN 6 HDMI IN 5
XM
DAB
230V VERSION ONLY
ANTENNA
FM GND AM
HDMI IN 4
HDMI IN 3
32
COAXIAL OPTICAL
1321
HDMI IN 2 HDMI IN 1 HDMI OUT 2 HDMI OUT 1
SWITCHED
POWER
+12V TRIGGER
OUT 1 OUT 2
INOUT 3OUT 2OUT 1IN OUT 3
RS-232
ON
AC OUTLET 120V ~ 60Hz
120W 1A MAX
SWITCHED
AC OUTLET 230V ~ 50Hz
120W 0.5A MAX
OUT
ETHERNET
MP
DOCK
DATA PORT
OUT
R
7.1 CH INPUT
LR
AUDIO
L
S-VIDEO
IN
32
1
VIDEO
MONITOR
OUT
VIDEO
HDMI
DIGITAL
AUDIO
230V VERSION ONLY
1 2 3 4 5 6
15 16 19
7 8 109
14
171211 13
18
ATTENTION!
Please make sure that the T 777 is powered o or unplugged from the mains power source before making any connections. It is also advisable to power
down or unplug all associated components while making or breaking any signal or AC power connections.
8
