46 | ni.com | NI Digital System Development Board User Manual
cores will not align perfectly with the typical Pmod pinouts for these interfaces. This means that
UART or I2C devices connected to this Pmod may require some of the pins to be swapped
around externally using individual wires between the DSDB and the Pmod.
MXP Connector
The myRIO Extension Port (MXP) Connector is a standard connector interface designed by NI
to provide an interoperable ecosystem of educational add-ons. This connector was included on
the DSDB to provide the Zynq with access to these add-ons. Figure 21 shows the signals on the
DSDB MXP connector.

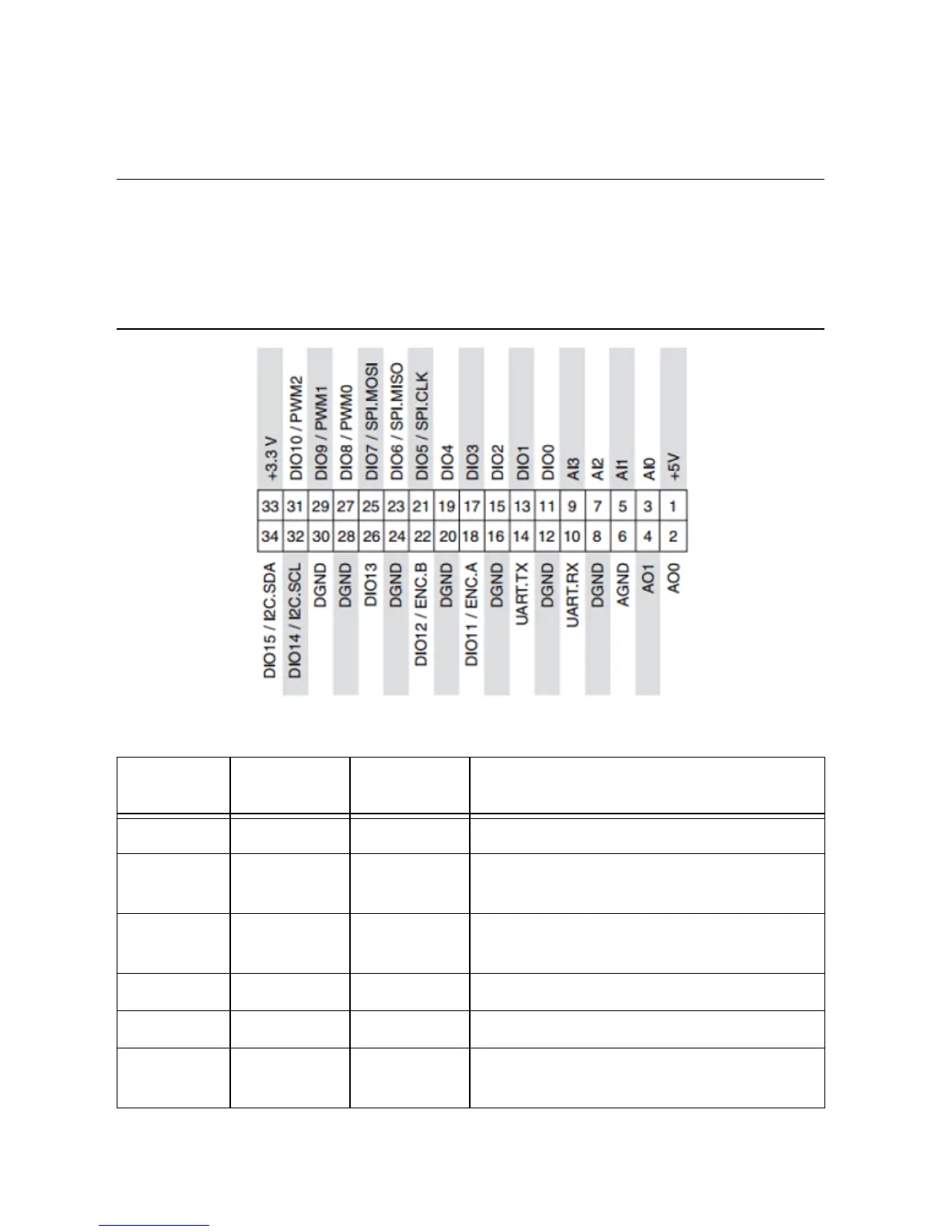

Figure 21. MXP Pins
Table 27. MXP Pin Descriptions
Signal
Name
Reference Direction Description
+5V DGND Output +5 V power output
AI<0:3> AGND Input 0-5 V, referenced, single-ended analog input
channels.
AO<0:1> AGND Output 0-5 V, referenced, single-ended analog
output channels.
AGND N/A N/A Reference for analog input and output.
+3.3V DGND Output +3.3 V power output.
DIO
<0:15>
DGND Input or
Output
General-purpose digital lines with 3.3 V
output, 3.3 V/5 V-compatible input.
