62 | ni.com | NI Digital System Development Board User Manual

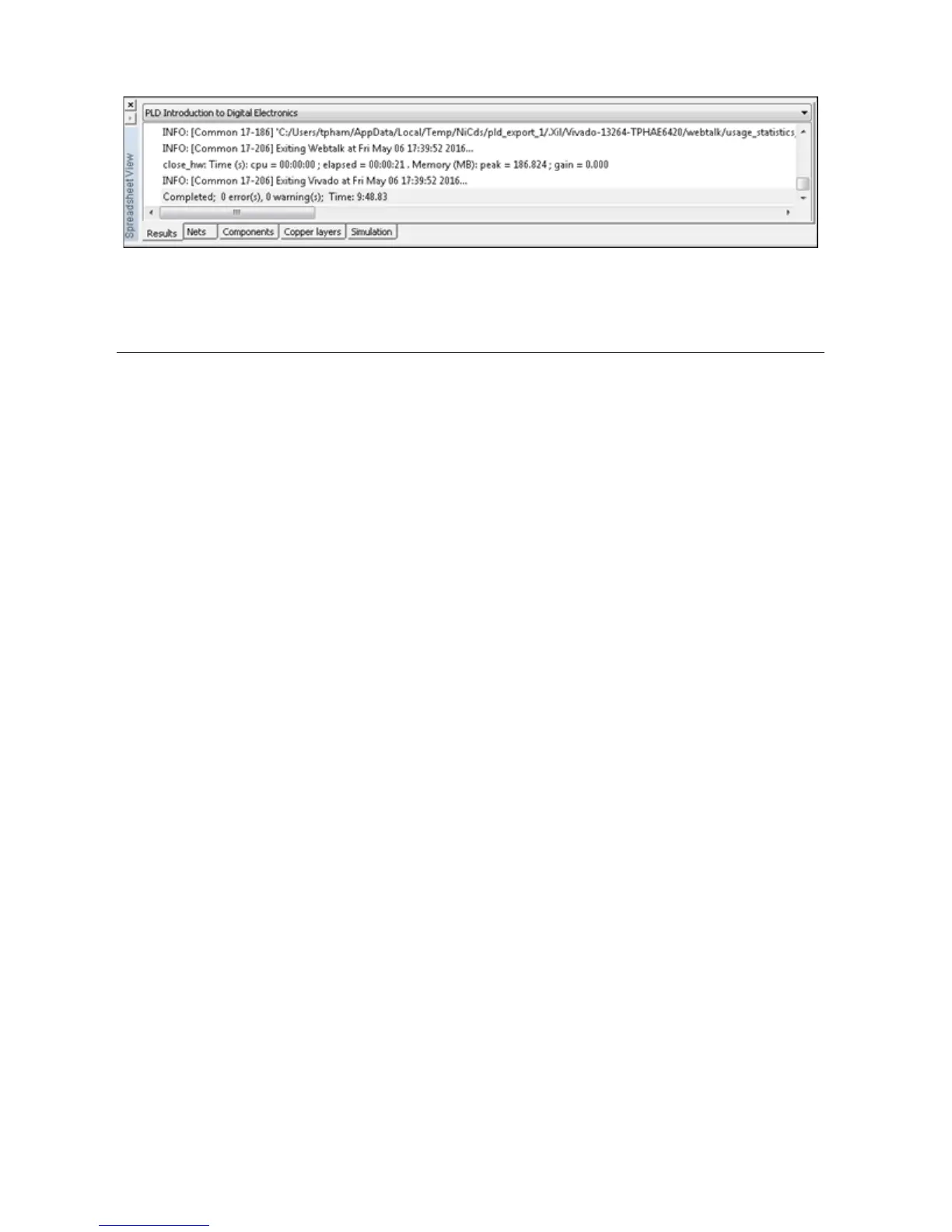

9. Once the FPGA is programmed, Multisim will display a message on the Spreadsheet View.
You can now test the design built in Multisim on the physical hardware.
Installation and Setup
This section describes what you need to get started with the DSDB and how to install your
software and set up your board.
What You Need to Get Started
The following items are necessary to set up and use the NI Digital Electronics FPGA Board:
• The DSDB containing the following:
– The DSDB
– Standard USB type A-to-mini B cable
• DSDB software, readme, and user documentation
• NI ELVIS II Series Benchtop Workstation, AC-DC power supply, high-speed USB 2.0
cable, NI ELVISmx 4.0 or later software CD, and the NI ELVIS II Series Quick Start Guide
• (Optional) +15 VDC, 650 mA power adapter
• Multisim 14.0.1
or
• LabVIEW 2015
or
• NI LabVIEW 2015 and the LabVIEW FPGA Module 2015, and the following:
– PC running Windows Windows 7, 8, or 10
– The LabVIEW Release Notes and the LabVIEW FPGA Module Release Notes
– One of the following software packages:
– LabVIEW FPGA Xilinx Tools Vivado 2014.4
or
– Vivado HL WebPACK 2014.x or higher tier
– DSDB driver
