Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

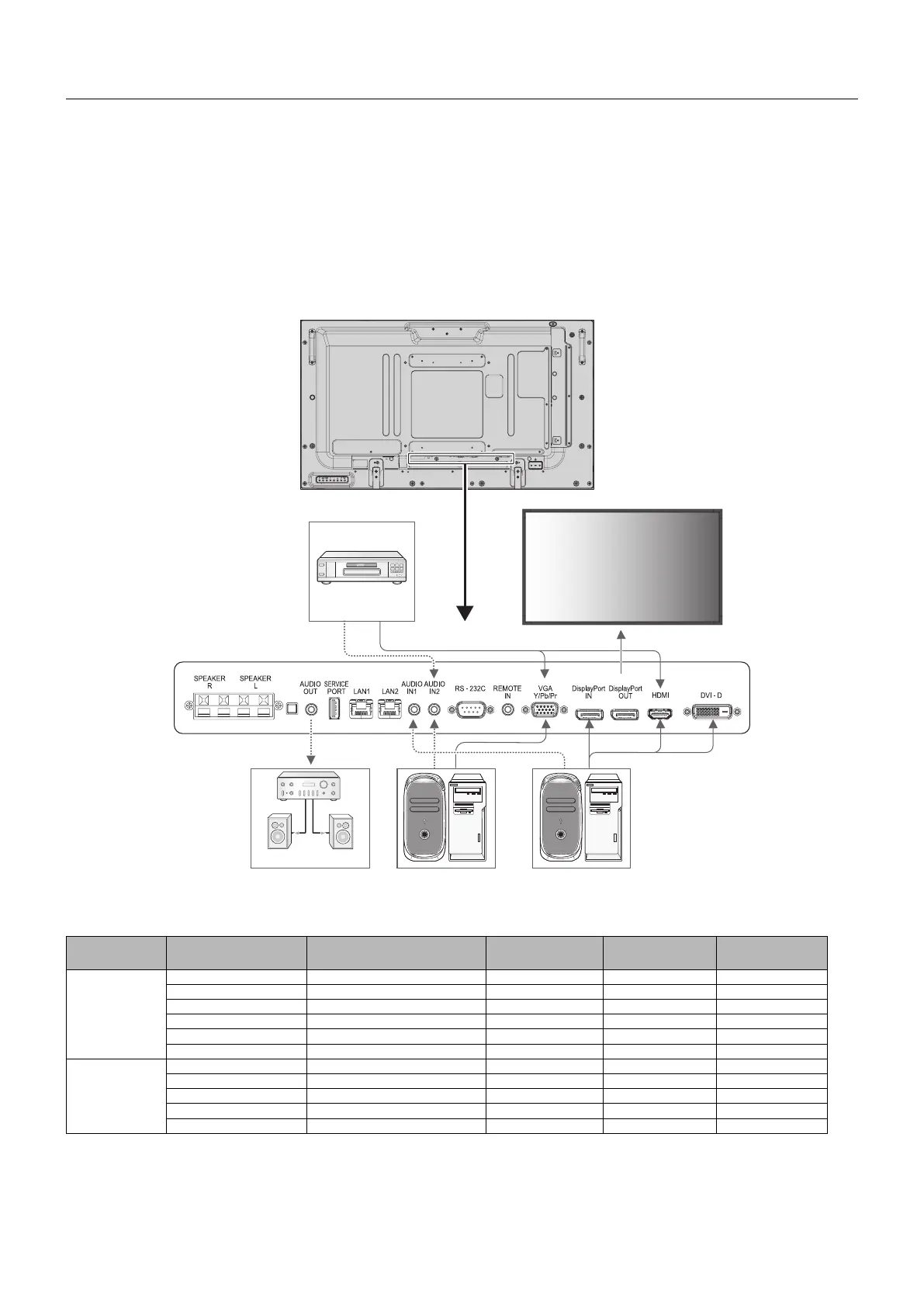

Wiring Diagram
Solid lines = video signal
Dotted lines = audio signal
Stereo Amplifi er
Second monitor*
Computer (Analog) Computer (Digital)
DVD Player
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected
equipment
Connecting
terminal
Setting in terminal mode Input signal name
Connecting
audio terminal
Input button
in remote control
AV
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-HD DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) D-SUB MODE RGB VGA AUDIO IN1/IN2 RGB/HV
VGA (D-Sub) D-SUB MODE COMPONENT COMPONENT AUDIO IN1/IN2 Y/Pb/Pr
Option RAW/EXPAND*
1
OPTION OPTION OPTION
PC
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-PC DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) - VGA AUDIO IN1/IN2 RGB/HV
Option RAW/EXPAND*
1
OPTION OPTION OPTION
*1: depend on signal type.

NEC MultiSync P403 Specifications

General

Panel life	- h
Panel type	SPVA
Pixel pitch	- mm
Response time	8 ms
Display diagonal	40 \
Display brightness	700 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Contrast ratio (typical)	4000:1
Display number of colors	-
Display diagonal (metric)	101.6 cm
Active display area (W x H)	885.6 x 498.15 mm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Ethernet LAN (RJ-45) ports	2
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	15.5 mm
Panel mounting interface	300 x 300 mm
Compatible products	C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Operating hours (hours/days)	24/7
Sustainability certificates	RoHS
RMS rated power	20 W
Power consumption (standby)	1 W
Power consumption (typical)	135 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DVI
Certification	C-tick; CE; FCC;' PSB; RoHS; TÜV GS; UL/C-UL CSA; VCCI

Weight and Dimensions

Depth	66.5 mm
Width	920.6 mm
Height	532.2 mm
Weight	17000 g
