NEC MultiSync P403 User Manual

English-44

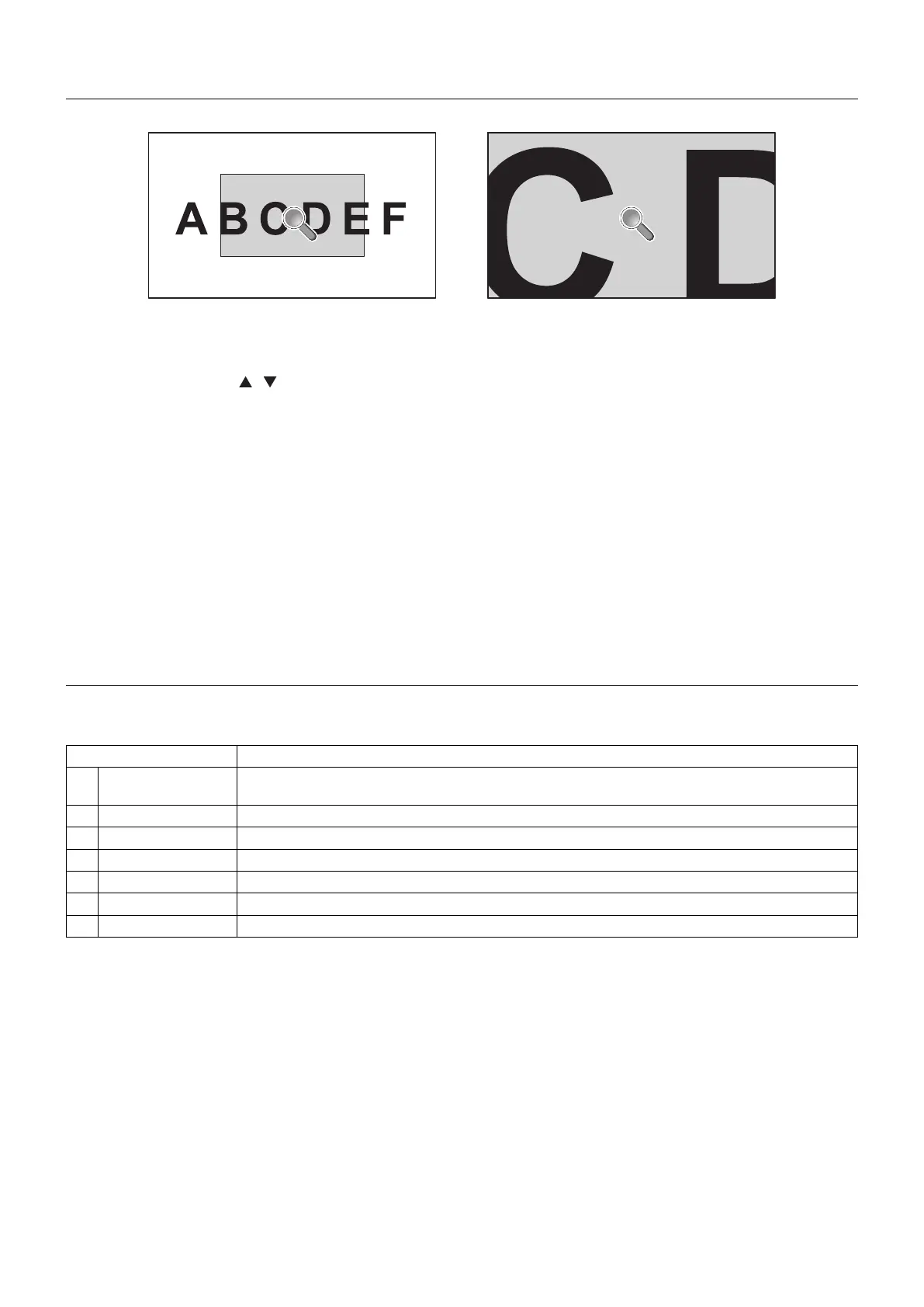

Using “SET/POINT ZOOM” button on a remote control allows to enlarge a partial of image.
Press CH+/- button to zoom up or down. The image can be expanded from 1 to 10 times.
1 Press [SET/POINT ZOOM] button on a remote control. An icon will be a magnifi er.
2 Move magnifi er icon by [
] [ ] [+] [-] button.
3 Press [CH+] to zoom up. Press [CH-] to zoom down.
4 Press [SET/POINT ZOOM] to disappear the icon.
5 Press [EXIT] to return to a normal size.
6 Press [MENU] to display OSD menu.<Setting Procedure>
NOTE: • The image may be distorted during this function.
• This function does not work when set to PIP, POP, PBP, TILE MATRIX, SCREEN SAVER, SUPER in INPUT
CHANGE, IMAGE FLIP.
• When selected DYNAMIC or ZOOM in ASPECT, the image will be changed FULL, then start to POINT ZOOM.
After POINT ZOOM, the ASPECT will be returned previous ASPECT settings. When the ASPECT is changed
during POINT ZOOM, DYNAMIC and ZOOM will be FULL image.
• The magnifi er icon does not move to no image area.
• POINT ZOOM will be released after changing input signal or power off.
• POINT ZOOM will be released when setting IMAGE FLIP or changing ASPECT setting during POINT ZOOM.
PROOF OF PLAY
This function allows to send message for the current status of monitor by self checking.
Check item Message
①
INPUT
DVI, VGA, Y/Pb/Pr, HDMI, DPORT, HDMI2*, HDMI3*, RGB/HV*, Y/Pb/Pr2*, SCART*, VIDEO*,
S-VIDEO*, OPTION*
②
Resolution ex. (H)1920, (V)1080 , (H)1360, (V)768 or No signal or Invalid signal
③
Audio INPUT IN1, IN2, IN3*, HDMI, DPORT, HDMI2*, HDMI3*, OPTION (analog)*, OPTION (digital)*
④
Audio signal Audio in or No Audio in or N/A (IN1, IN2, IN3*, OPTION (analog)*)
⑤
Picture Image Normal Picture or No Picture
⑥
Audio out Normal Audio or No Audio
⑦
Cumulative time (hour)/(minutes)/(second)
*: This function depends on which option board you use.
Sample:
①
HDMI
②
1920 x 1080
③
HDMI
④
Audio in
⑤
Normal Picture
⑥
Normal Audio
⑦
0h/0m/0s
NOTE: For Proof of Play function, please see “External_Control.pdf” on the CD-ROM.
POINT ZOOM

NEC MultiSync P403 Specifications

General

Panel life	- h
Panel type	SPVA
Pixel pitch	- mm
Response time	8 ms
Display diagonal	40 \
Display brightness	700 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Contrast ratio (typical)	4000:1
Display number of colors	-
Display diagonal (metric)	101.6 cm
Active display area (W x H)	885.6 x 498.15 mm
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Ethernet LAN (RJ-45) ports	2
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	15.5 mm
Panel mounting interface	300 x 300 mm
Compatible products	C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Operating hours (hours/days)	24/7
Sustainability certificates	RoHS
RMS rated power	20 W
Power consumption (standby)	1 W
Power consumption (typical)	135 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DVI
Certification	C-tick; CE; FCC;' PSB; RoHS; TÜV GS; UL/C-UL CSA; VCCI

Weight and Dimensions

Depth	66.5 mm
Width	920.6 mm
Height	532.2 mm
Weight	17000 g
