Installing an Optional Sensor Unit

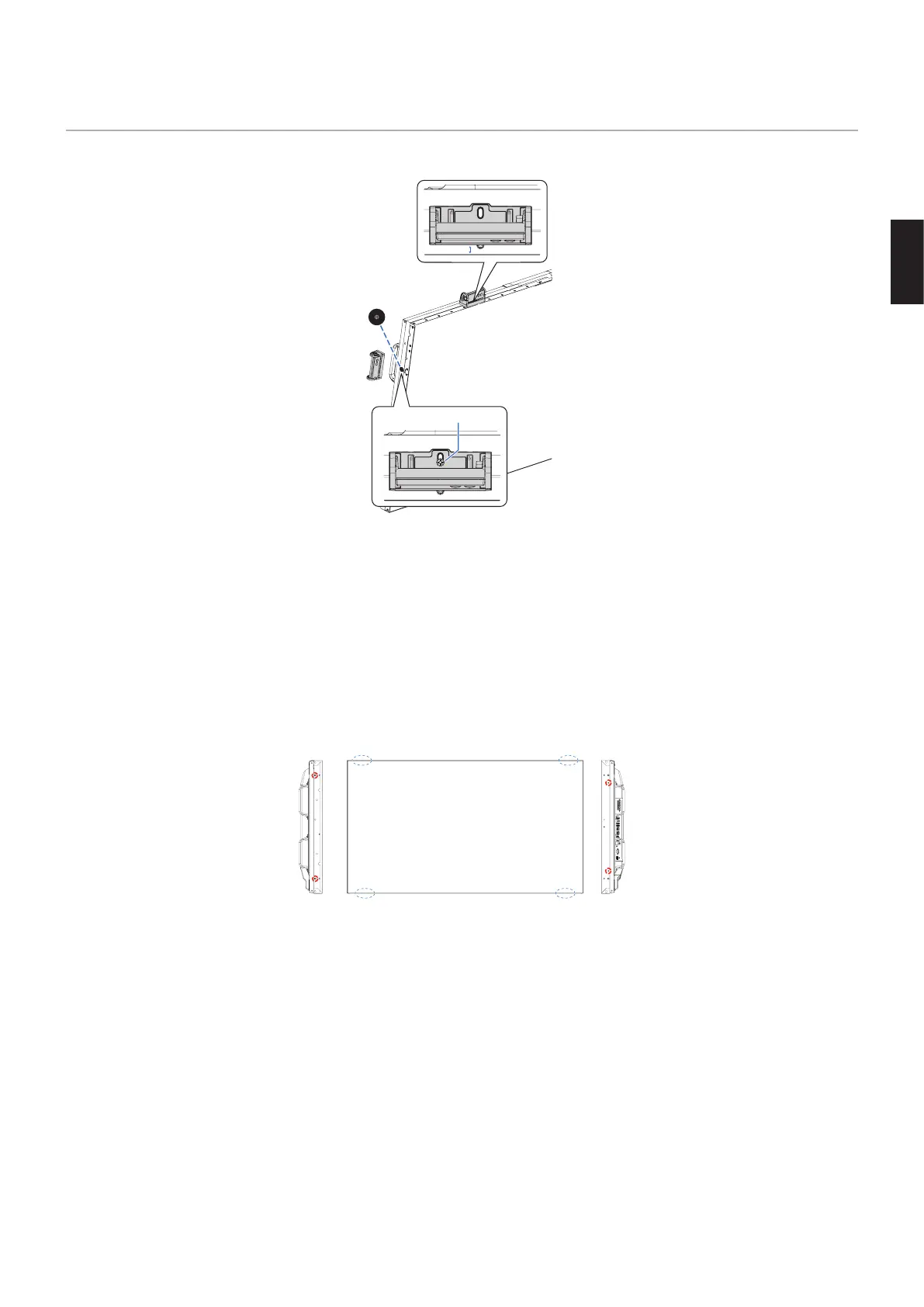

For installing the sensor to the monitor, please use the screw or the double-sided tape as shown below:
Seal
Screw Position
Double-sided tape
8 mm
Fixed by screw: Remove the seal covering screw holes on the bezel. Secure the unit with the attached screw.
Set the sensor unit close to the back side.
NOTE: Depending on the type of the monitor, there are limitations for mounting. For installation, follow instructions below to
avoid damage to the monitor.
For the UN462A/UN462VA/UN552A:
• When installing the sensor unit on the upper side of the monitor, do not use the screw. If the sensor unit is installed
using a screw, it could damage the monitor.
For the UN492S/UN492VS:
• Please use the M3 x 6 screw attached to the monitor. It isn’t possible to use a screw of the Optional Sensor Unit.
For fixing the sensor unit within the bezel, it is recommended using screw holes as below mentioned.
Fixed by double-sided tape: You can set the sensor unit on any side of the monitor.
Set the sensor unit 8 mm away from the front edge.
NOTE: For the UN552S/UN552VS:
• Please use double-sided tape only.
To Next Page
