NEC MultiSync V552 User Manual

English-15
English
Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

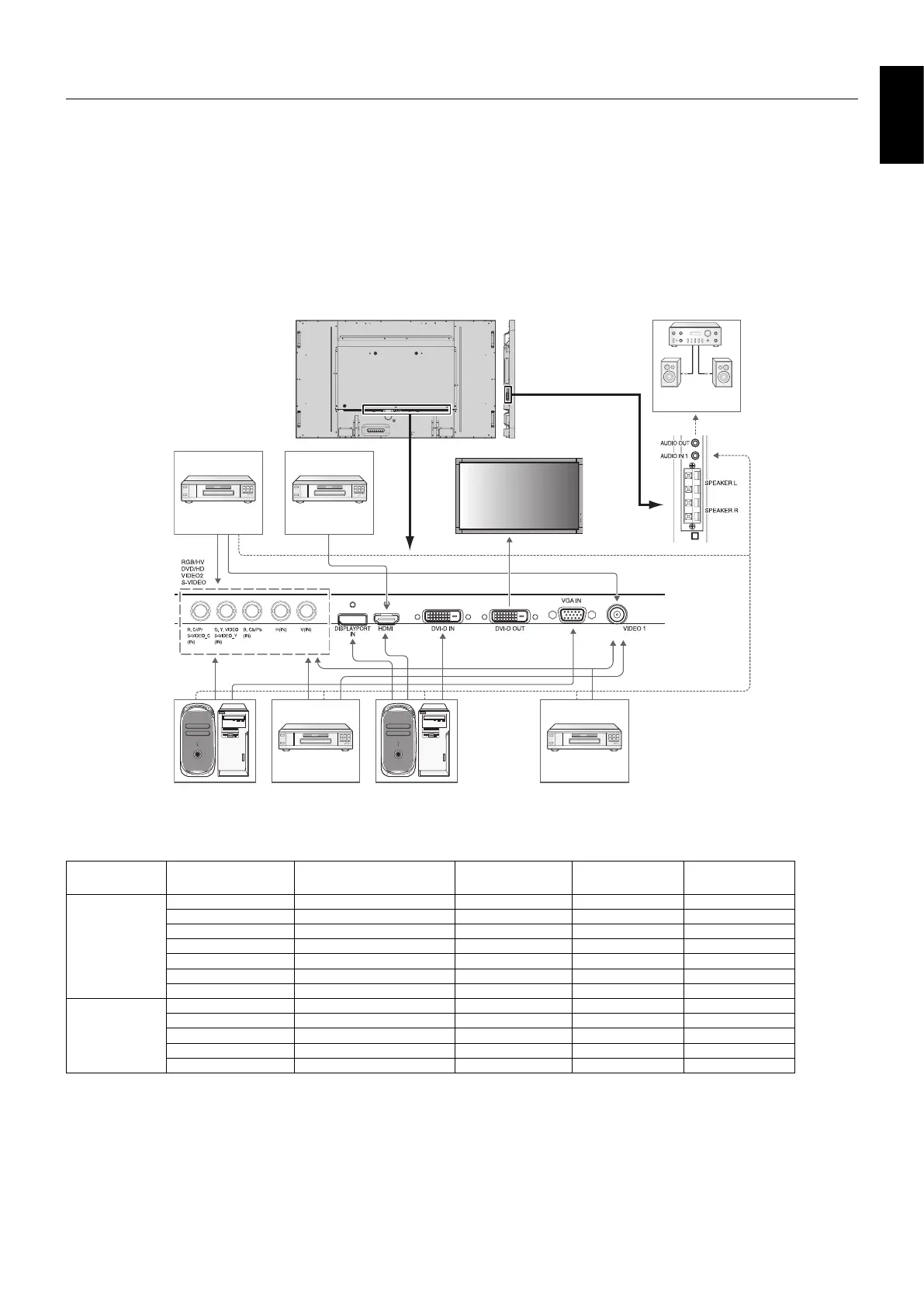

Wiring Diagram
DVD player
with HDMI out
DVD player
VCR or
DVD Player
Stereo Amplifi er
Second monitor*
Computer
(Analog)
Computer
(Digital)
DVD player with
SCART OUT
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected
equipment
Connecting
terminal
Setting in Terminal Mode Input signal name
Connecting
Audio terminal
Input button
in remote control
AV
DVI (DVI-D) DVI MODE: DVI-HD DVI AUDIO IN1 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
5BNC+VIDEO 1 BNC MODE: SCART SCART AUDIO IN1 DVD/HD
VIDEO1 (BNC) - VIDEO1 AUDIO IN1 VIDEO
S-VIDEO (5BNC) BNC MODE: S-VIDEO S-VIDEO AUDIO IN1 S-VIDEO
VIDEO2 (5BNC) BNC MODE: VIDEO VIDEO2 AUDIO IN1 VIDEO
DVD/HD (5BNC) BNC MODE: COMPONENT DVD/HD AUDIO IN1 DVD/HD
PC
VGA (D-Sub) - VGA AUDIO IN1 VGA
DVI (DVI-D) DVI MODE: DVI-PC DVI AUDIO IN1 DVI
RGB/HV (5BNC) BNC MODE: RGB RGB/HV AUDIO IN1 RGB/HV
DisplayPort - DPORT DPORT DISPLAYPORT
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
*1: depend on signal type.
Solid lines = video signal
Dotted lines = audio signal

NEC MultiSync V552 Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	430 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Touchscreen technology	Infrared
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (top)	41.4 mm
Panel mounting interface	300 x 300 mm
Wi-Fi	-
DVI-D ports quantity	2
Cable lock slot type	Kensington
Power consumption (standby)	2 W
Power consumption (typical)	100 W
Package depth	250 mm
Package width	1430 mm
Package height	920 mm
Operating altitude	0 - 3000 m
Non-operating altitude	3000 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Cables included	AC, DVI

Weight and Dimensions

Depth	86.5 mm
Width	1294.4 mm
Height	765.2 mm
Weight	40800 g
