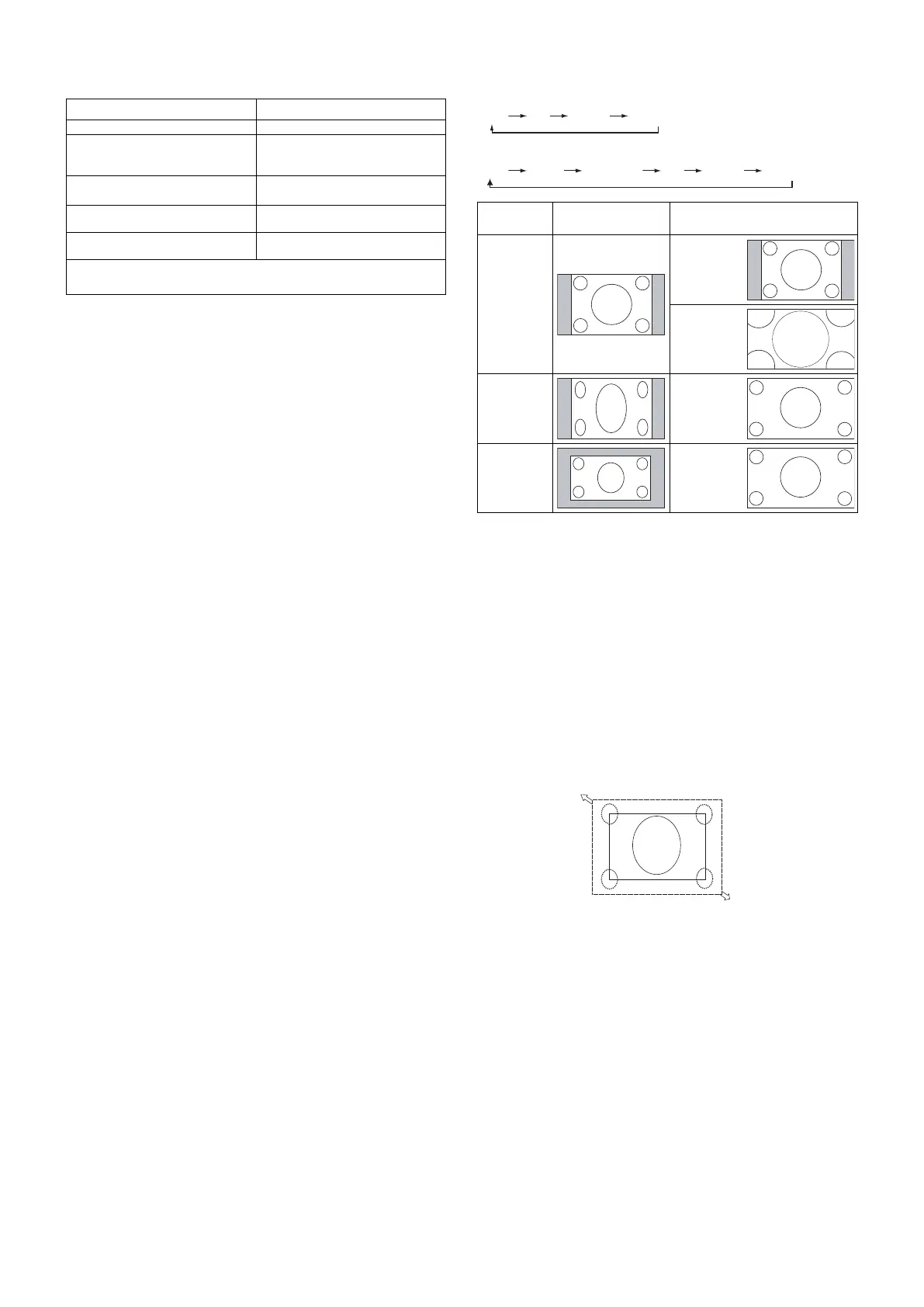

NEC MultiSync V552 User Manual

English-18
Picture Aspect
DVI, VGA, RGB/HV, DPORT
FULL 1:1 ZOOM NORMAL
HDMI, DVD/HD, SCART, VIDEO1, VIDEO2, S-VIDEO
FULL WIDE DYNAMIC 1:1 ZOOM NORMAL
Aspect ratio
of image
Unchanged view*
3
Recommended selection
for picture aspect*
3
4:3
NORMAL
DYNAMIC
Squeeze
FULL
Letterbox
WIDE
*
3
Grey areas indicate unused portions of the screen.
NORMAL: Displays the aspect ratio the same as it is sent
from the source.
FULL: Fills entire screen.
WIDE: Expands a 16:9 letter box signal to fi ll entire screen.
DYNAMIC: Expands a 4:3 pictures to fi ll the entire screen
with non-linearity. Some of the outside image area will be cut
off due to expansion.
1:1: Displays the image in a 1 by 1 pixel format.
ZOOM
The image can be expanded/reduced beyond the active
display area. The image which is outside of active display
area is not shown.
ZOOM
ZOOM
Power Indicator
Mode Status Indicator Light
Power ON Green*
1
Power OFF and Power Save
“AUTO STANDBY”
Power consumption under 0.5 W*
2
Red
Power Save “POWER SAVE”
Power consumption under 2 W
Amber
Power Standby when “SCHEDULE
SETTINGS” enabled
Green and Amber blink alternately
Diagnosis (Detecting failure) Red Blinking
(See Troubleshooting page 40)
*1 If “OFF” is selected in POWER INDICATOR (page 25), the LED will not light when the
LCD monitor is in active mode.
*2 Without any option, with factory settings, VGA input only.
Using Power Management
The LCD monitor follows the VESA approved DPM Display
Power Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fi xed period.
The power management feature on your new display has
been set to the “AUTO STANDBY” mode. This allows your
display to enter a Power Saving Mode when no signal is
applied. This could potentially increase the life and decrease
the power consumption of the display.
NOTE: Depending on the PC and display card used, this
function may not operate.
NOTE: When POWER SAVE is ON (see page 26), the
monitor goes into power management mode,
it takes about several seconds for HDMI and
about 10 minutes for DVD/HD, SCART, VIDEO1,
VIDEO2 and S-VIDEO.
Selecting a video source
To view a video source:
Use the input button to set [VIDEO1], [VIDEO2], [S-VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.

NEC MultiSync V552 Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	430 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Touchscreen technology	Infrared
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (top)	41.4 mm
Panel mounting interface	300 x 300 mm
Wi-Fi	-
DVI-D ports quantity	2
Cable lock slot type	Kensington
Power consumption (standby)	2 W
Power consumption (typical)	100 W
Package depth	250 mm
Package width	1430 mm
Package height	920 mm
Operating altitude	0 - 3000 m
Non-operating altitude	3000 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Cables included	AC, DVI

Weight and Dimensions

Depth	86.5 mm
Width	1294.4 mm
Height	765.2 mm
Weight	40800 g
