NEC MultiSync V552 User Manual

English-32
This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal.
NOTE: When you use this function, EXTERNAL CONTROL should be “RS-232C” (See page 25).
Functions that can be controlled by a personal computer are:
• Power ON or OFF.
• Switching between input signals.
• Sound Mute ON or OFF.

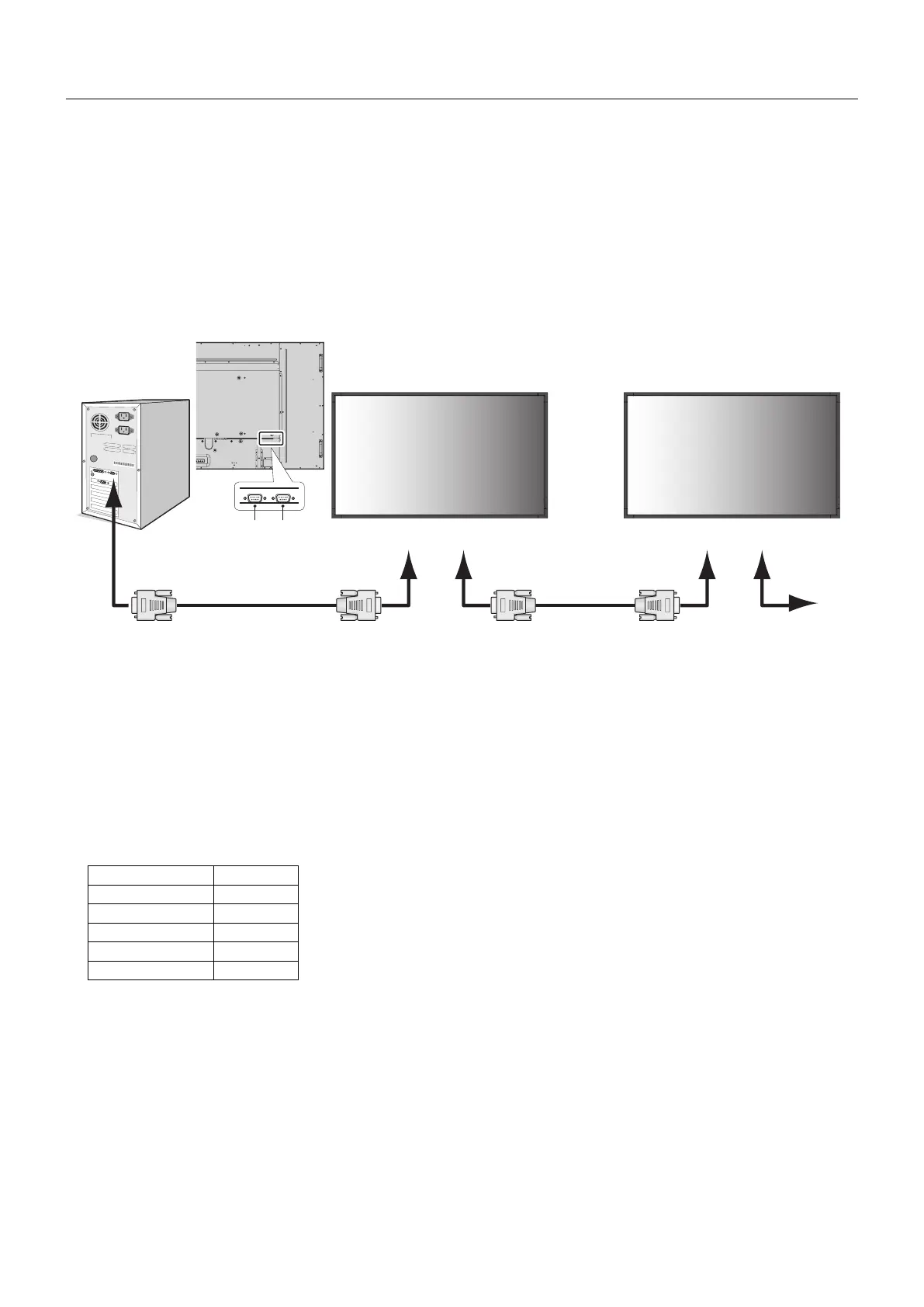

Connection
LCD Monitor + PC
RS-232C Cable
PC
(Out)
RS-232C Cable
RS-232C (OUT)
MultiSync
RS-232C (IN)RS-232C (OUT)RS-232C (IN)
IN OUT
MultiSync MultiSync
NOTE: If your PC is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact your
dealer for details.
Check the “ID=ALL REPLY” setting in “EXTERNAL CONTROL”.
* In order to function, the RS-232C OUT terminal can only be connected to another monitor of the same model.
Do not connect to other types of equipment.
To control monitor or multiple monitors that are daisy-chained together please use the control command. Instructions for the
control command can be found on the CD included with the display. The fi le is called “External_control.pdf”.
Multiple monitors that are daisy-chained have a limit to the conectable monitor.
1) Interface
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY BIT NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not include) should be used for RS-232C control.
Controlling the LCD monitor via RS-232C Remote Control

NEC MultiSync V552 Specifications

General

Panel life	- h
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	430 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Touchscreen technology	Infrared
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (top)	41.4 mm
Panel mounting interface	300 x 300 mm
Wi-Fi	-
DVI-D ports quantity	2
Cable lock slot type	Kensington
Power consumption (standby)	2 W
Power consumption (typical)	100 W
Package depth	250 mm
Package width	1430 mm
Package height	920 mm
Operating altitude	0 - 3000 m
Non-operating altitude	3000 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Cables included	AC, DVI

Weight and Dimensions

Depth	86.5 mm
Width	1294.4 mm
Height	765.2 mm
Weight	40800 g
