NEC MultiSync V554 User Manual

English-10

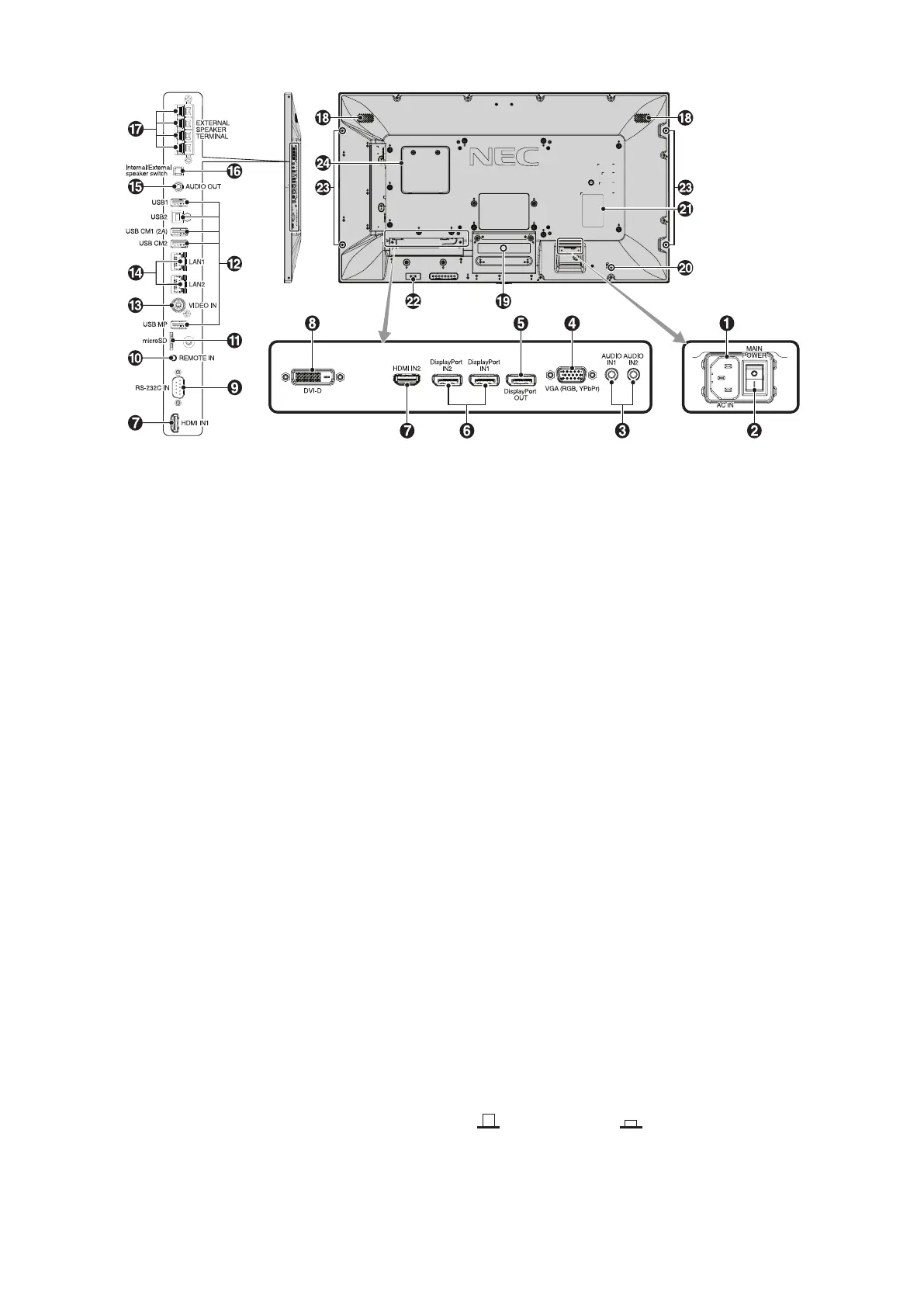

Terminal Panel
USB Upstream
A AC IN Connector
Connects with the supplied power cord.
B Main Power Switch
On/Off switch to turn main power ON/OFF.
C Audio IN1/IN2
Audio signal input from external equipment such as a
computer or player.
D VGA IN (Mini D-Sub 15-pin)
Analog RGB signals input from a personal computer or from
other RGB equipment. This input can be used with an RGB
or YPbPr source. Please select signal type in TERMINAL
SETTINGS. See page 37.
NOTE: When you use this connector for YPbPr, please use a
suitable signal cable. If you have any questions, please ask
your supplier.
E DisplayPort OUT
To output DisplayPort signals.
Outputs DisplayPort1 signal.
F DisplayPort IN1/IN2
DisplayPort signals input.
G HDMI IN1/IN2
Digital HDMI signals input.
H DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device
having a digital RGB output.
* This connector does not support analog input.
I RS-232C IN (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a
computer in order to control RS-232C functions.
J Remote IN
Use the optional sensor unit by connecting it to your monitor.
NOTE: Do not use this connector unless specified.
K microSD Card Slot
Insert a microSD memory card. To use the Media player,
please connect a microSD memory card to this port
(See page 22).
To install the microSD card slot cover, please refer to
“Installing microSD card slot cover” (See page 22).
L USB Port
USB1: Downstream port (USB Type-A).
To connect USB devices.
USB2: Upstream port (USB Type-B).
To connect external equipment such as a
computer. To control the monitor from connected
external equipment, please use this port.
USB CM1 (2A): Power supply port.
USB CM2*: Service port. Please do not connect devices.
* USB functionality is available when the optional Raspberry
Pi Compute Module Interface Board and Raspberry Pi
Compute Module are installed.
USB MP: USB storage device port. This port is for future
software upgrades.
To use the Media player, please connect USB
storage device to this port (See page 18).
MP is an abbreviation of Media Player.
M VIDEO IN (RCA)
Composite video signal input.
N LAN Port 1/2 (RJ-45)
LAN connection. See page 47 and page 50.
NOTE: Please give priority for use to LAN1.
O Audio OUT
Audio signal output from the AUDIO IN1/IN2, DisplayPort and
HDMI to an external device (stereo receiver, amplifier, etc.).
NOTE: This connector is not a Headphone terminal.
P Internal/External Speaker Switch
: Internal speaker : External speaker.
NOTE: Please turn off the monitor’s main power when you
use the Internal/External speaker switch.

NEC MultiSync V554 Specifications

General

Power consumption (standby)	- W
Power consumption (typical)	120 W
Portrait mode	Yes
Annual energy consumption	175 kWh
Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.6 x 680.4 mm
Internal memory	1 GB
Processor cores	4
Processor model	A53
Processor family	ARM Cortex
Processor frequency	1.2 GHz
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, MOV, MP4
Internal storage capacity	16 GB
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
Purpose	-
Operating hours (hours/days)	24/7
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	14.2 mm
Panel mounting interface	300 x 300 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Cables included	AC, DVI

Weight and Dimensions

Depth	62.9 mm
Width	1244 mm
Height	714.8 mm
Weight	24500 g
