NEC MultiSync V554 User Manual

English-16
Connections
NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power,
as this may result in a loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user’s manual included with each separate piece of equipment.
* We strongly recommend connecting or disconnecting a USB storage device or a microSD memory card to the monitor when
the monitor’s main power is off.

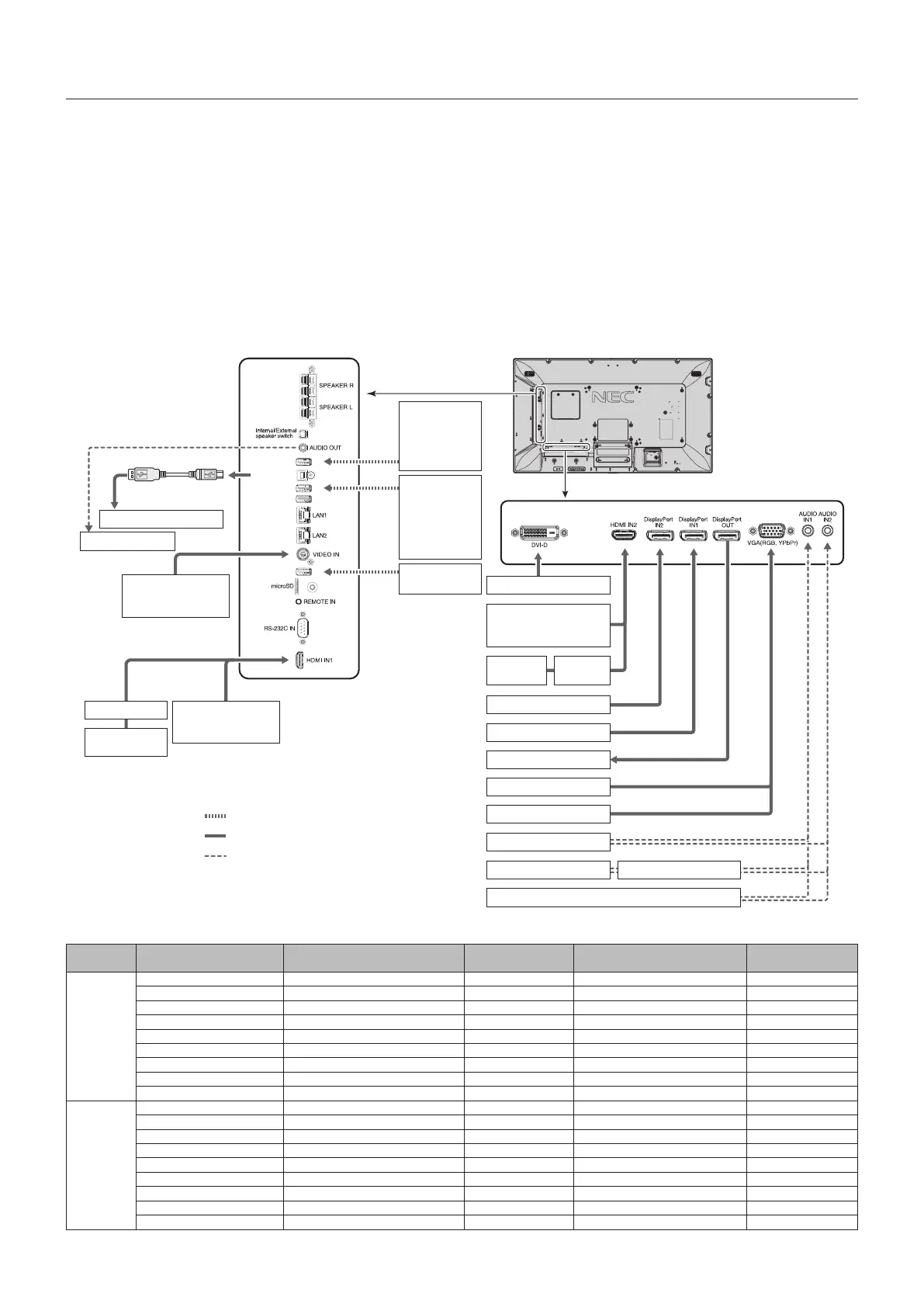

Wiring Diagram
USB1
USB2
USB CM1 (2A)
USB CM2
USB MP
VCR Player or
DVD Player (Video)
Stereo Amplifier
USB port
(Type-A)
USB devices
such as
USB camera or
USB memory
Devices that
require power
supply:
Ex:
MultiPresenter
Stick
USB storage
device
USB port
(Type-B)
USB cable
Computer (USB)*
1
AV Amplifier
DVD Player
(HDMI)
DVD Player or
Computer
Computer (Digital)
DVD Player (HDMI) or
Computer (HDMI)
DVD Player
(HDMI)
AV
Amplifier
Computer (DisplayPort)
Computer (DisplayPort)
Second monitor*
Computer (Analog)
Computer
DVD Player (component)
DVD Player Stereo Amplifier
VCR player or DVD player
Dotted lines = other signal
Solid lines = video signal
Dashed lines = audio signal
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
*1: The device connected to USB2 can control the device connected to USB1.
Connected
equipment
Connecting terminal
Setting in
TERMINAL SETTINGS
Input signal name Connecting audio terminal
Input button in
remote control
AV
DVI (DVI-D) DVI MODE: DVI-HD DVI IN1/IN2 DVI
HDMI IN1 VIDEO LEVEL: RAW/EXPAND*
2
HDMI1 HDMI1 HDMI1
HDMI IN2 VIDEO LEVEL: RAW/EXPAND*
2
HDMI2 HDMI2 HDMI2
DisplayPort IN1 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 1 DisplayPort 1 DisplayPort 1
DisplayPort IN2 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 2 DisplayPort 2 DisplayPort 2
VGA (RGB, YPbPr) VGA MODE: RGB VGA (RGB) IN1/IN2 VGA (RGB/YPbPr)
VGA (RGB, YPbPr) VGA MODE: YPbPr VGA (YPbPr) IN1/IN2 VGA (RGB/YPbPr)
VIDEO IN — VIDEO IN1/IN2 VIDEO
Option board slot (SLOT2) VIDEO LEVEL: RAW/EXPAND*
2
OPTION OPTION (ANALOG/DIGITAL)*
2
OPTION
PC
DVI (DVI-D) DVI MODE: DVI-PC/DVI-HD DVI IN1/IN2 DVI
HDMI IN1 VIDEO LEVEL: RAW/EXPAND*
2
HDMI1 HDMI1 HDMI1
HDMI IN2 VIDEO LEVEL: RAW/EXPAND*
2
HDMI2 HDMI2 HDMI2
DisplayPort IN1 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 1 DisplayPort 1 DisplayPort 1
DisplayPort IN2 VIDEO LEVEL: RAW/EXPAND*
2
DisplayPort 2 DisplayPort 2 DisplayPort 2
VGA (RGB, YPbPr) VGA MODE: RGB VGA (RGB) IN1/IN2 VGA (RGB/YPbPr)
VGA (RGB, YPbPr) VGA MODE: YPbPr VGA (YPbPr) IN1/IN2 VGA (RGB/YPbPr)
VIDEO IN — VIDEO IN1/IN2 VIDEO
Option board slot (SLOT2) VIDEO LEVEL: RAW/EXPAND*
2
OPTION OPTION (ANALOG/DIGITAL)*
2
OPTION
*2: Please set appropriate setting for input signal.

NEC MultiSync V554 Specifications

General

Power consumption (standby)	- W
Power consumption (typical)	120 W
Portrait mode	Yes
Annual energy consumption	175 kWh
Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	55 \
Display brightness	500 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.6 x 680.4 mm
Internal memory	1 GB
Processor cores	4
Processor model	A53
Processor family	ARM Cortex
Processor frequency	1.2 GHz
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, MOV, MP4
Internal storage capacity	16 GB
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
Purpose	-
Operating hours (hours/days)	24/7
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	14.2 mm
Panel mounting interface	300 x 300 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Cables included	AC, DVI

Weight and Dimensions

Depth	62.9 mm
Width	1244 mm
Height	714.8 mm
Weight	24500 g
