NETAJET
™
4G USER MANUAL 43

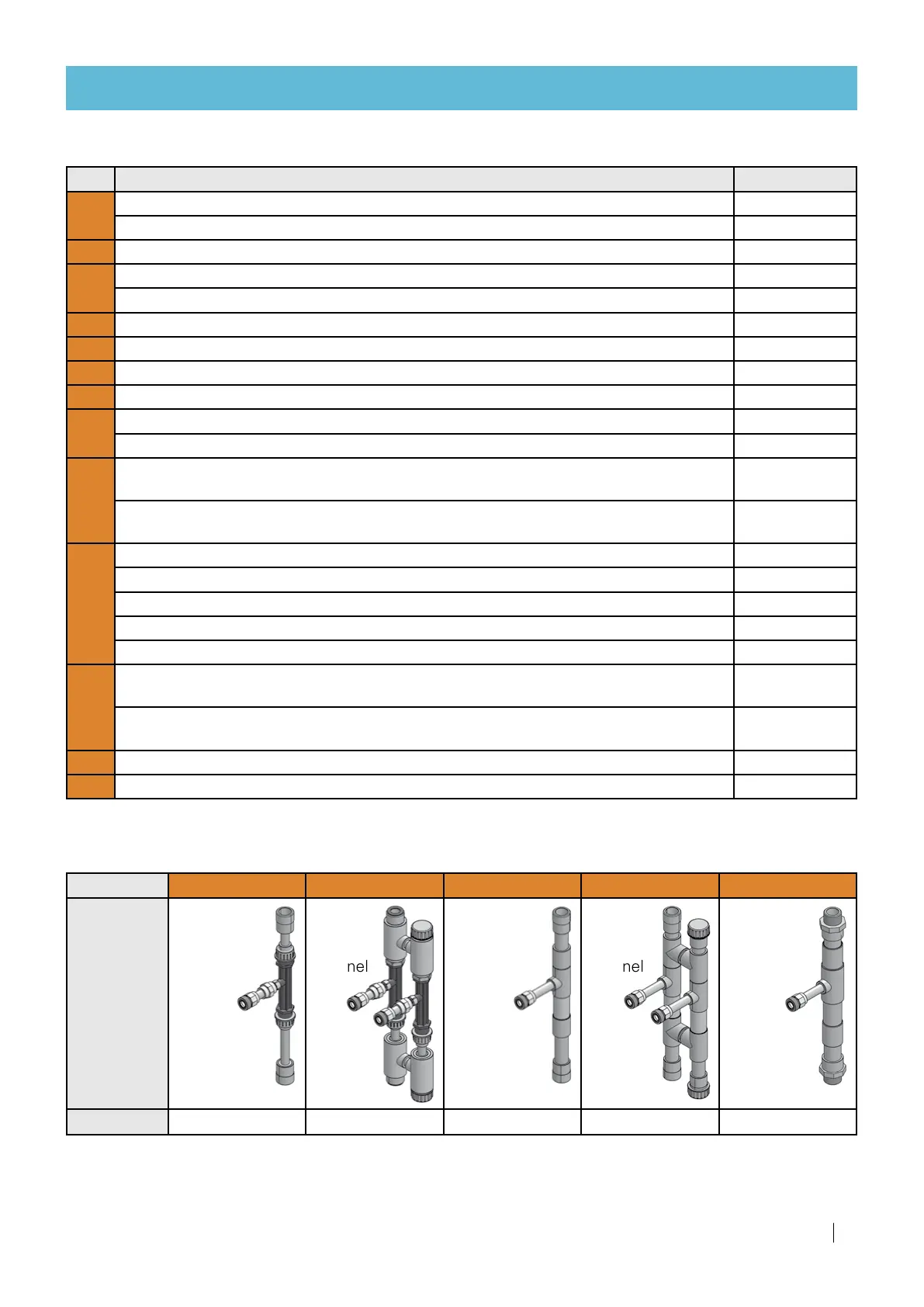

LIST OF PARTS
Dosing channel parts
Part
Description Cat. No.
4.01
Check valve, connecting between analog EPDM dosing valve and Venturi with EPDM 76420-007965
Check valve, connecting between analog Viton dosing valve and Venturi with Viton 76420-007960
4.02 Check valve, connecting between S22 digital dosing valve and Venturi with EPDM ISO 76420-007950
4.03
Analog EPDM dosing valve 70800-001795
Analog Viton dosing valve 70800-001796
4.04 Digital dosing valve, S22 24VAC 50/60 Hz Viton 77540-008500
4.05 Connector and cable for S22 24VAC valve 77540-008520
4.06 Connection between needle valve and analog dosing valve 33240-004650
4.07 Connection between needle valve and S22 ISO dosing valve 1000 l/h (264 GPH) 33240-004450
4.08
Needle valve, ½" for 50, 150 and 400 l/h (13, 39.5 and 105.5 GPH) Rotameter 76 4 0 0 - 011375
Needle valve, ½" for 600 and 1000 l/h (158.5 and 264 GPH) Rotameter 76400-011376
4.09
Connection between needle valve and DFM170 ISO Rotameter,
50, 150 and 400 l/h (13, 39.5 and 105.5 GPH)
33240-004350
Connection between needle valve and DFM185 ISO Rotameter,
600 and 1000 l/h (158.5 and 264 GPH)
33240-004400
4.10
Rotameter, DFM170 5-50 l/hr (1.3 - 13 GPH) 77540-007560
Rotameter, DFM170 15-150 l/hr (4 - 40 GPH) 77540-007575
Rotameter, DFM170 40-400 l/hr (10.6 - 106 GPH) 77540-007570
Rotameter, DFM185 60-600 l/hr (15.8 - 158 GPH) 77540-007577
Rotameter, DFM185 100-1000 l/hr (26.5 - 265 GPH) 77540-007580
4.11
Connection between hoze nozzle and DFM170 ISO Rotameter,
50, 150 and 400 l/h (13, 39.5 and 105.5 GPH)
33240-004250
Connection between hoze nozzle and DFM185 ISO Rotameter,
600 and 1000 l/h (158.5 and 264 GPH)
33240-004300
4.12 Hoze nozzle for dosing channel 33240-004200
4.13 Nipple, ¾"-½" 77300-010470
Part
5.01 5.02 5.03 5.04 5.05
Description
PVDF
M50
single
channel
PVDF
M50
dual
channel
PVC
N600
single
channel
PVC
N600
dual
channel
PVC
N1000
single
channel
Cat. No.
33240-003200 33152- 001315 33240-002370 33152- 001320 33240-002390
Venturis
