Hardware Setup
8
ProSAFE 8-Port and 16-Port Gigabit Web Managed Click Switch
16-Port Switch Hardware

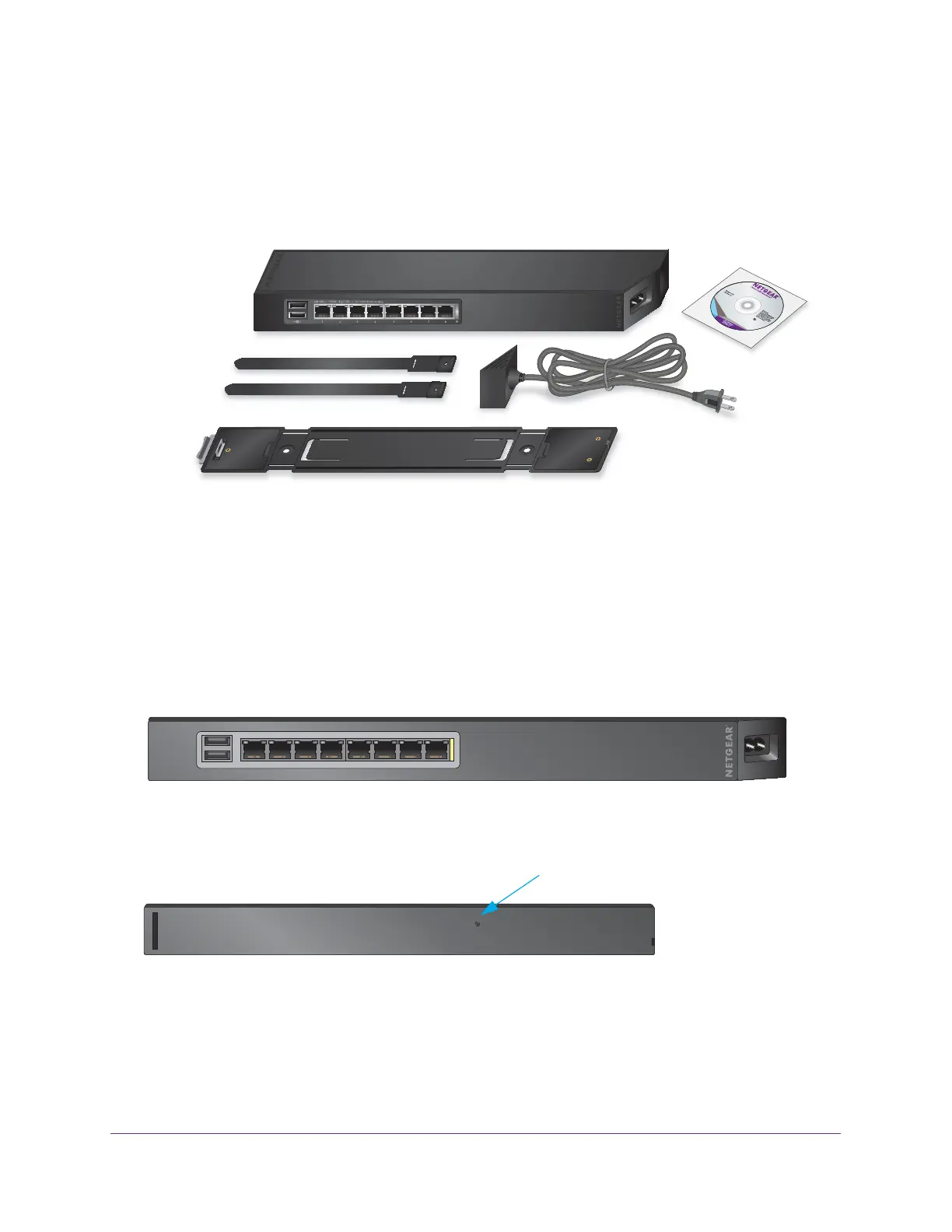

The front panel includes Ethernet ports with LEDs and the power connector.
Figure 4. GSS116E Switch front panel
The rear panel includes a Factory Reset button.
Figure 5. GSS116E Switch rear panel
Use the 1-2-3-4 Mounting System to Place the Switch
You can place the Click Switch directly on a wall, strapped to a pole, under a table, or in a
server closet. The innovative mounting system allows you to put it virtually anywhere.
Wall Mount
To wall-mount the switch:
1. Peel the plastic cover of
f the adhesive squares on the rear of the backplate.
The adhesive helps hold the backplate in place when you are mounting the switch.
2. W
all-mount the backplate.
Note: You must screw the backplate into a wall stud.
