Hardware Setup
11
N300 Wireless Router WNR2000v4
Back Panel
The back panel has the following buttons, ports, and connector:
WiFi On/Off button
Restore Factory Settings button
LAN ports
Internet port
AC power connector
On/Off button

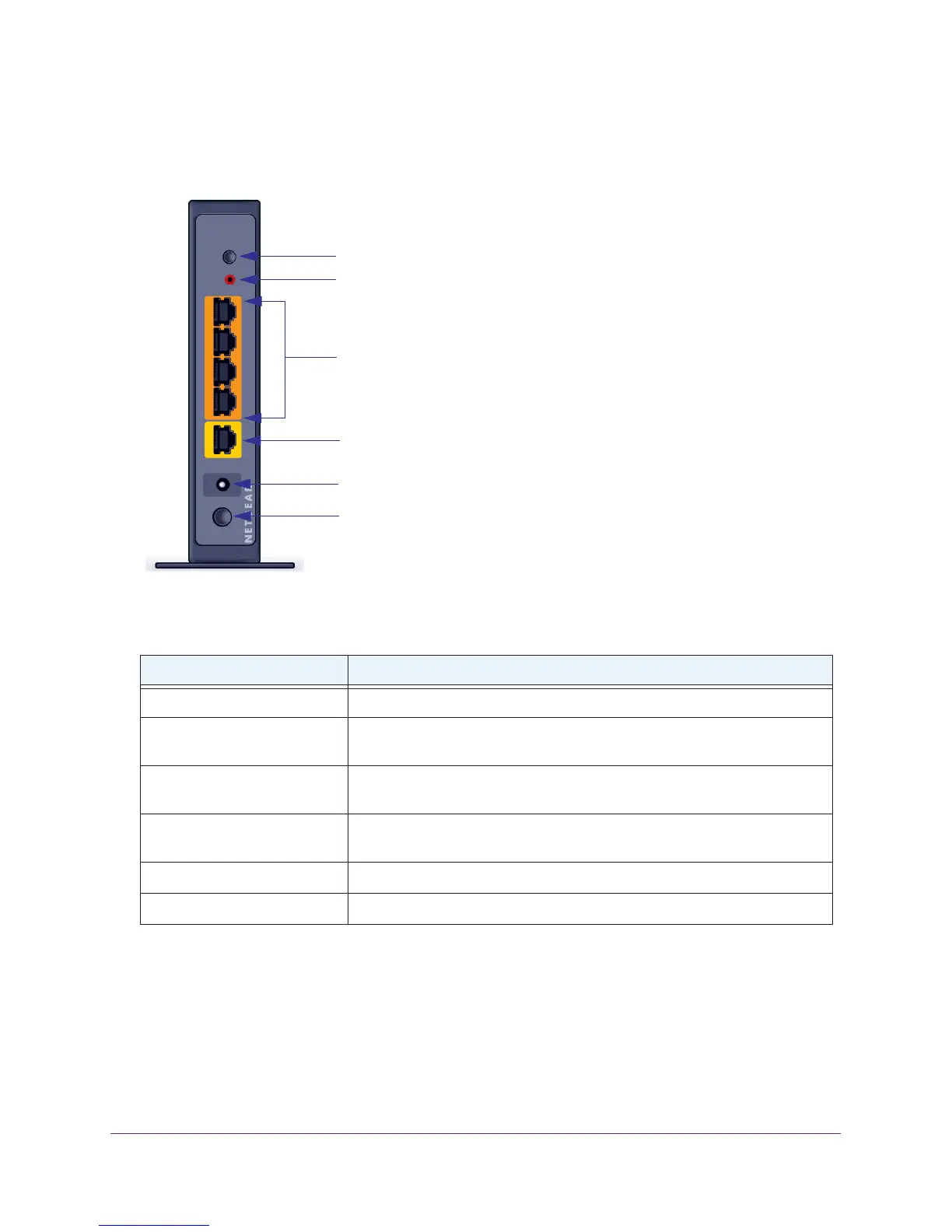

Figure 3. Back panel
Table 2. Back panel button, port, and connector descriptions
Port or Button Description
WiFi On/Off button Turns the wireless radio in the router on or off.
Restore Factory Settings button Press and hold this button for about 7 seconds to reset the router to its
factory default settings.
LAN ports Four local area network (LAN) 10/100 Mbps Ethernet ports for connecting the
router to your local computers.
Internet port Ethernet port for connecting the router to a cable broadband modem or DSL
broadband modem.
The Internet port is also referred to as the WAN port.
AC power connector AC power connector to connect the power adapter to the router.
Power On/Off button Turns the router on or off.
