Hardware Setup
9
N300 Wireless Router WNR2000v4
Front Panel
The router front panel has the following status LEDs and button:
WPS button and LED
LAN LEDs
Wireless LED
Internet LED
Power LED

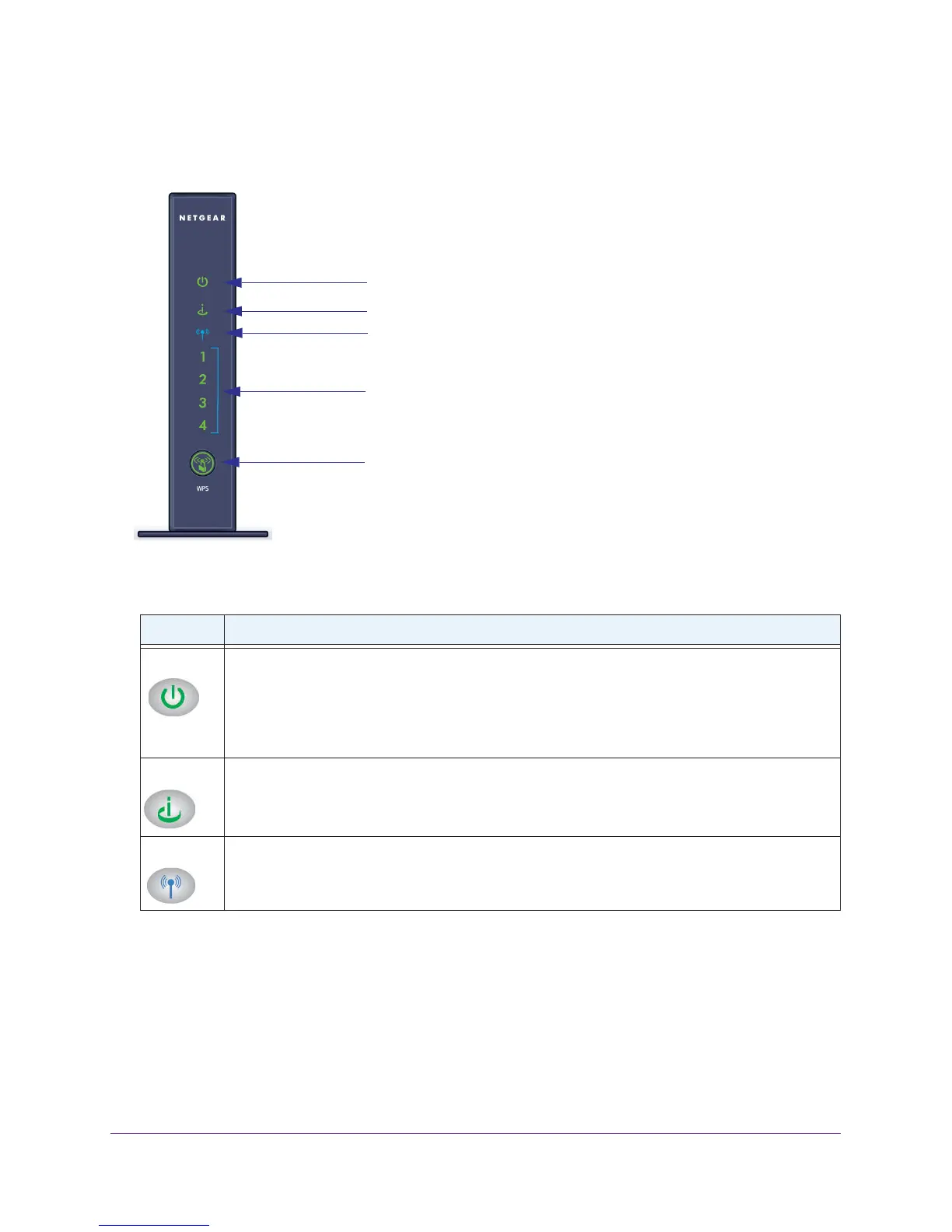

Figure 2. Front panel
Table 1. Front panel LED descriptions
LED Description
Power
• Solid amber. The unit is starting up after being powered on.
• Solid green.
The power is on, and the router is ready.
• Blinking amber. A
firmware update is in progress.
• Blinking green. The
firmware is corrupt.
• Off. Power is not supplied to the router.
Internet
• Solid amber. The IP address has not been acquired.
• Solid green.
An IP address has been received; ready to transmit data.
• Off. No Ethernet cable is connected between the router and the modem.
Wireless
• Solid blue. The wireless radio is operating.
• Off. The
wireless radio is off.
