2. SPECIFICATIONS
2-4

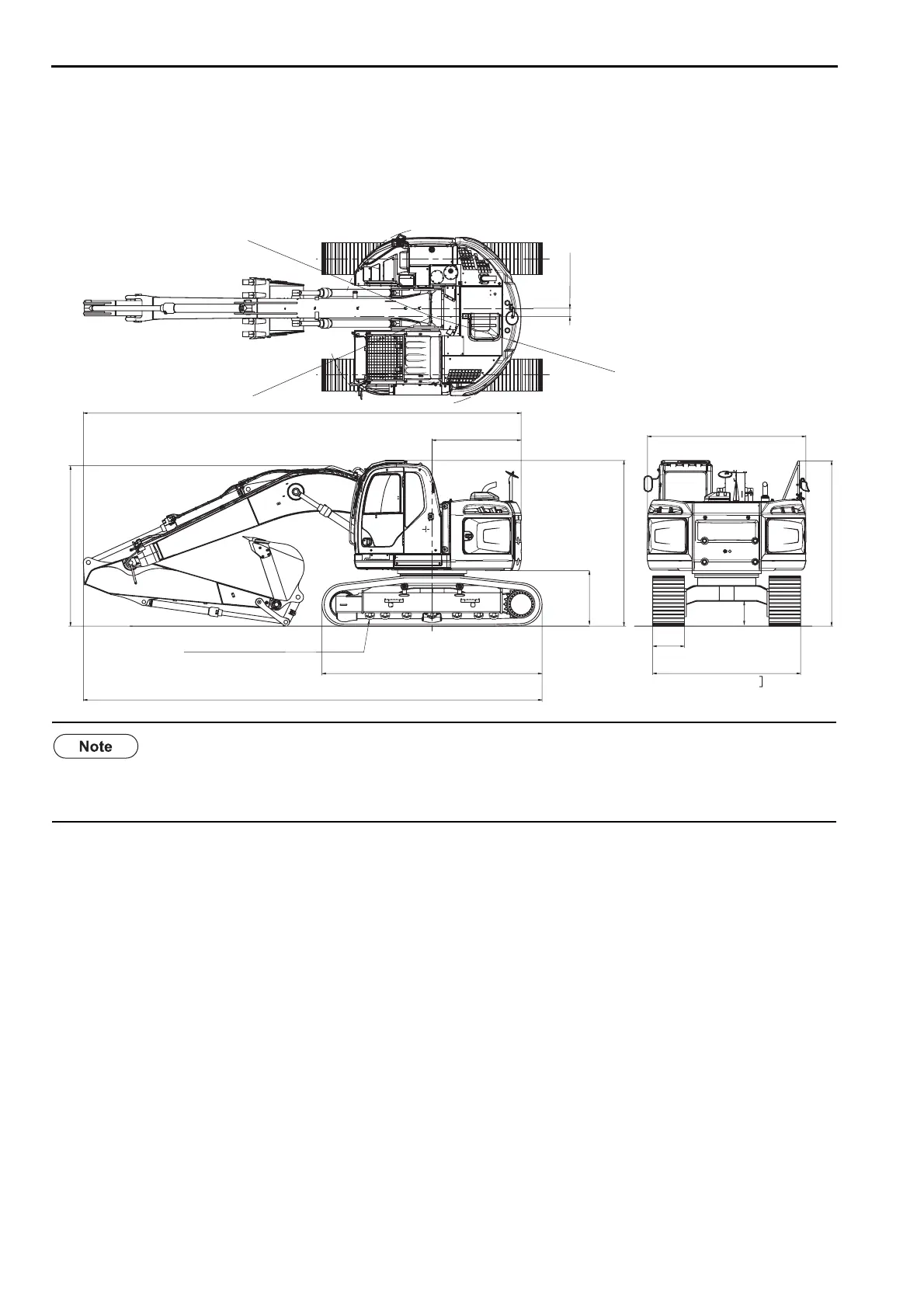

2.2 GENERAL DIMENSIONS
2.2.1 E225BSR/E225BSRLC
[5.62m (18ft-5in) Boom+2.87m (9ft-5in) Standard Arm+0.80m
3
(1.05cu•yd) Bucket]
Unit : mm (ft-in)
Dimensions marked * do not include the height of the shoe lug.
[ ] include LC specifications.
1680 (5'6")
8680 (28'6") [8830 (29')]
4170 (13'8") [4450 (14'7")]
8290 (27'2")
2800 (9'2")
[2990 (9'10")
3130 (10'3")
3130 (10'3")
160 (6.3")
600
(23.6")
3000 (9'10")
3030 (9'11")
Lower roller Q'tys : 7 [8]
R2030 (6'8")
R1680 (5'6")
R1680 (5'6")
*1020 (3'4")
*445
(17.5")
