3. ATTACHMENT DIMENSIONS
3-10
3.3 BUCKET

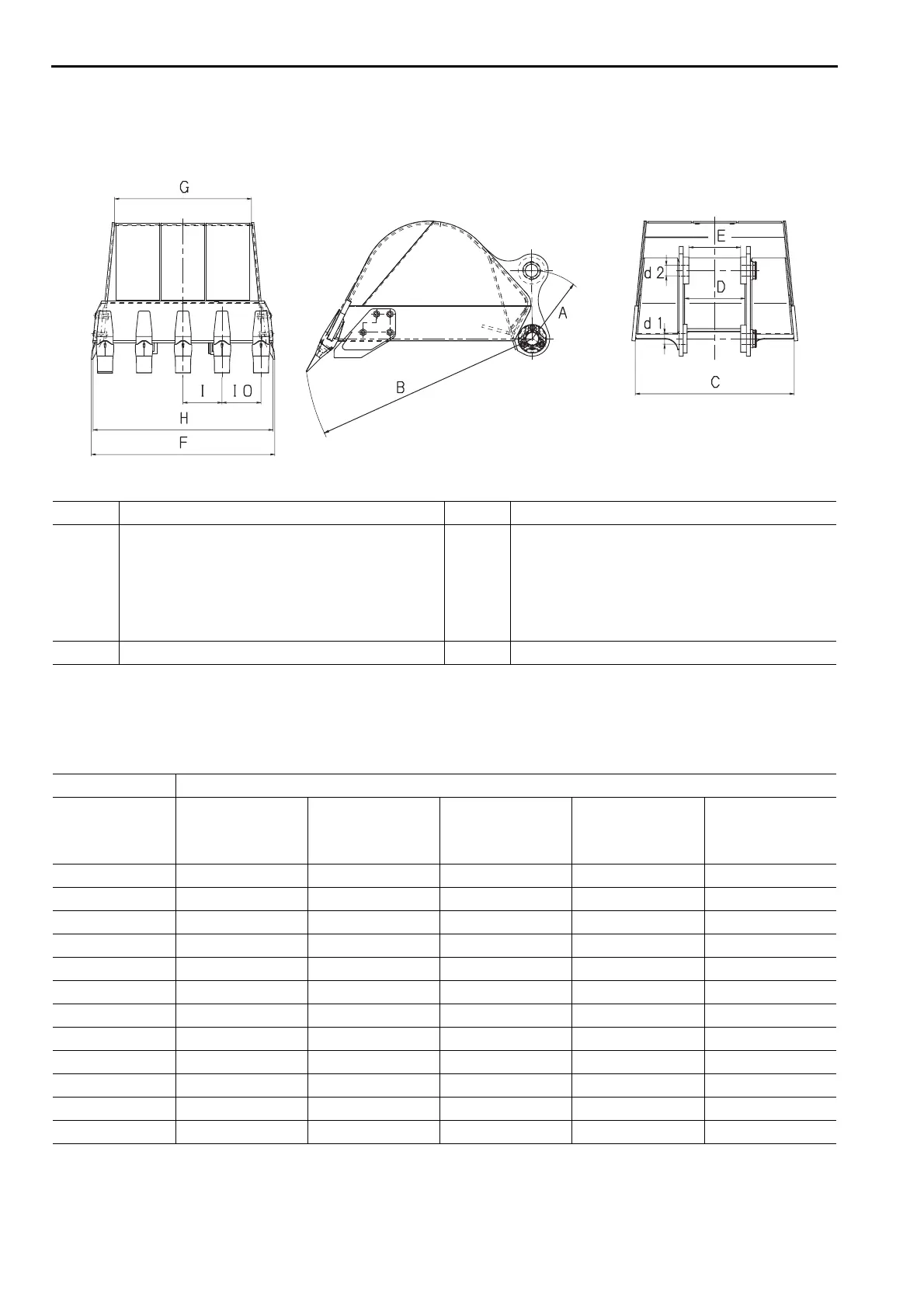

3.3.1 BUCKET DIMENSIONAL DRAWING
(1) Hoe bucket
Fig. 3-7 Bucket dimensional drawing
3.3.2 BUCKET DIMENSIONAL TABLE
No. NAME No. NAME
A Distance between pin and bracket G Outer width of bucket bottom plate
B Distance between bucket pin and tooth end H Bucket outer width of front side
C Inner width of bucket top end I Pitch between teeth
D Inner width of bracket Io Pitch between teeth
E Inner width of lug d1 Outer dia. of bushing
F Outer width of side cutter d2 Pin dia.
Unit : mm (ft-in)
Type Normal digging
Capacity
[STD]
0.80
(0.70)m
3
0.51
(0.45)m
3
0.70
(0.61)m
3
0.93
(0.80)m
3
1.05
(0.90)m
3
A R430 (16.9") ←←←←
B R1,440 (4'9") ←←←←
C 1,003 (3'3") 711 (28.0") 922 (36.3") 1,173 (3'10") 1,303 (4'3.3")
D 399 (15.7") ←←←←
E 327 (12.9") ←←←←
F 1,157 (4') 870 (34.3") 1,080 (3'6.5") 1,330 (4'4.4") 1,460 (4'9.5")
G 863 (34") 572 (22.5") 785 (30.9") 1,036 (3'4.8") 1,166 (3'9.9")
H 1,057 (3'6") 766 (30.2") 979 (38.5") 1,230 (4'0.43") 1,360 (4'5.5")
I 224 (8.82") 300 (11.8") 203 (8.0") 266 (10.5") 240 (9.45")
IO 224 (8.82") 300 (11.8") 203 (8.0") 266 (10.5") 238 (9.37")
d1 ø 95 (3.74") ←←←←
d2 ø 80 (3.15") ←←←←
Bucket capacity : SAE heaped (Stuck)
