Distribution boxes
UN
F1255
FD1
AA1
FA1
AA3
AA2AA23
FC1
FQ10
AA23 AA2AA1 AA3

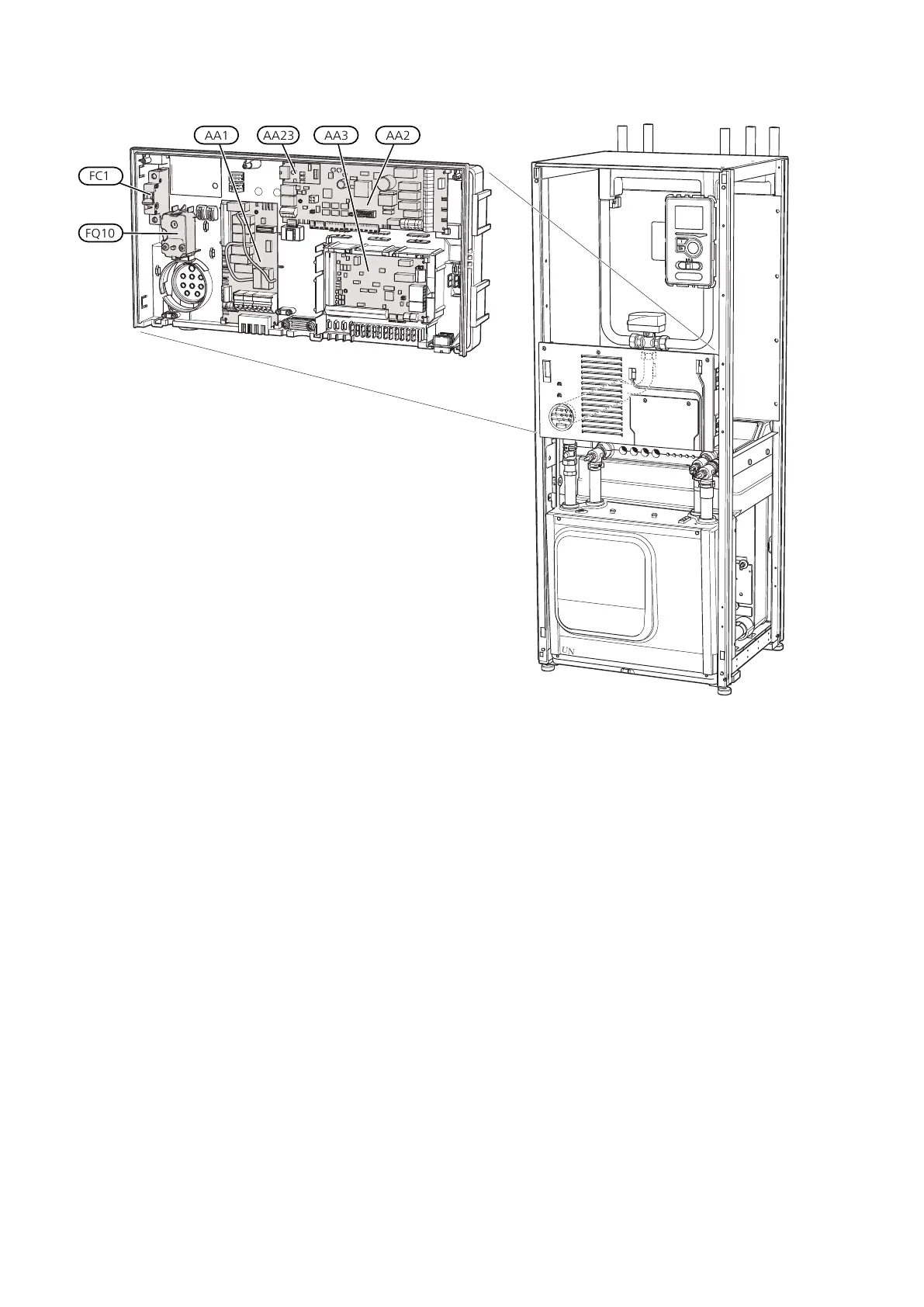

ELECTRICAL COMPONENTS
Immersion heater cardAA1
Base cardAA2
Input circuit boardAA3
Communication boardAA23
Miniature circuit-breakerFC1
Temperature limiter/Emergency mode thermostatFQ10
11Chapter 3 | The heat pump designNIBE F1155
