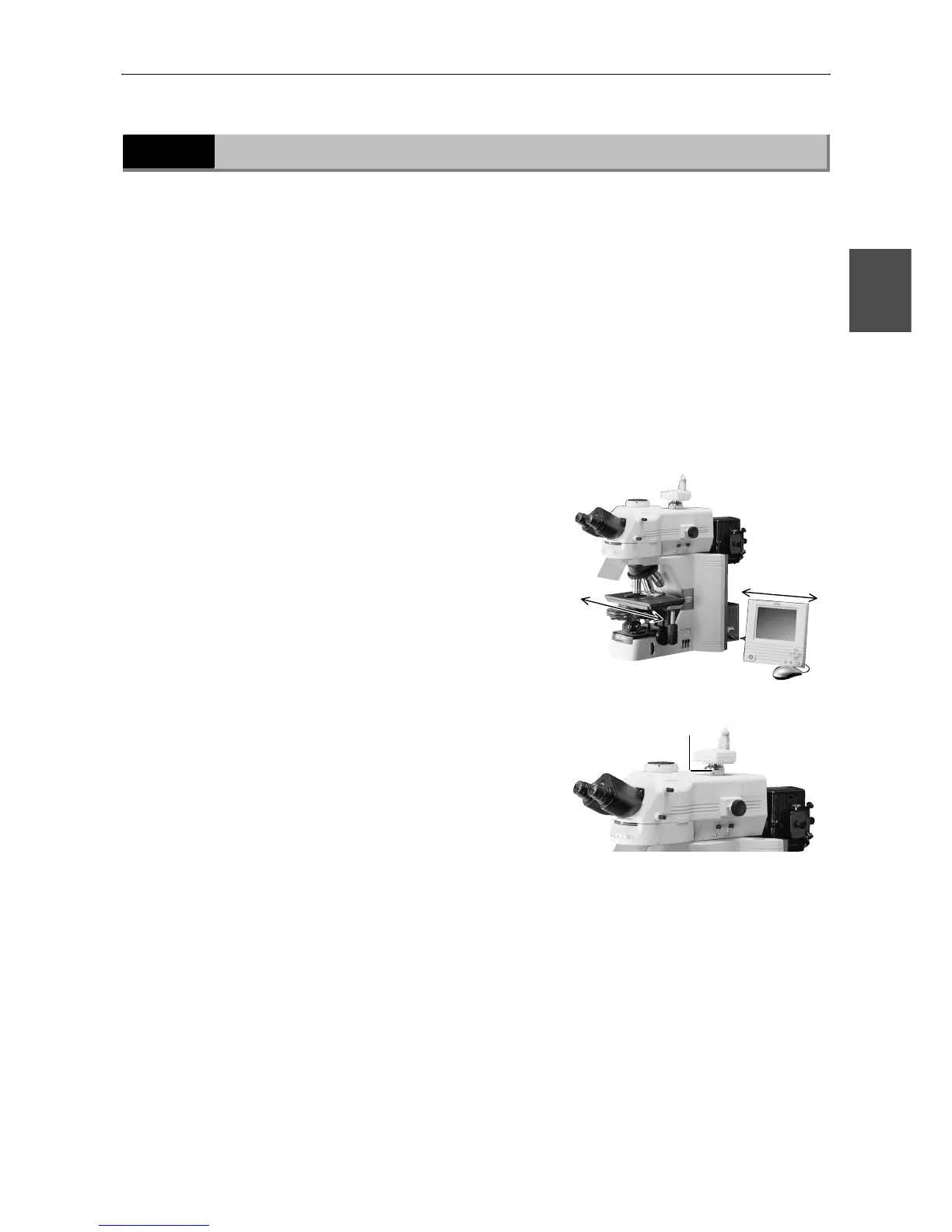

Chapter 3 Part Names and Microscopy Procedures(With DIH-M Mounted)
3.5 Photomicroscopy
49
3
3.5
Photomicroscopy
For detailed discussions of the camera, photomicroscopic software, and PC, refer to the
operating manuals provided with the respective products. The following instructions assume a
DS-5M digital camera and DS-L1 camera control unit.
1
Adjust the microscope for proper image observation.
See the directions given earlier in "1. Bright-Field Microscopy" or "2. Epifluorescence
Microscopy."
2
Adjust the camera head mounting position until the image is
displayed properly.
(1) Adjustment based on stage motion direction
Loosen the C-mount adapter retaining screw
and adjust the camera position so that
moving the stage forward-backward or
left-right moves the image on the monitor in
the same direction. After making the
appropriate adjustments, tighten the screw
firmly.
3
Make camera settings.
For a detailed discussion of this topic, refer to the operating manual provided with the camera.
When using the DS-L1, you must choose and enter at least the following information:
• Folder for data storage
• Name of file to be saved (You can select "Auto.")
• File format and file size
• Date and destination of data
C-mount adapter
retaining screw
