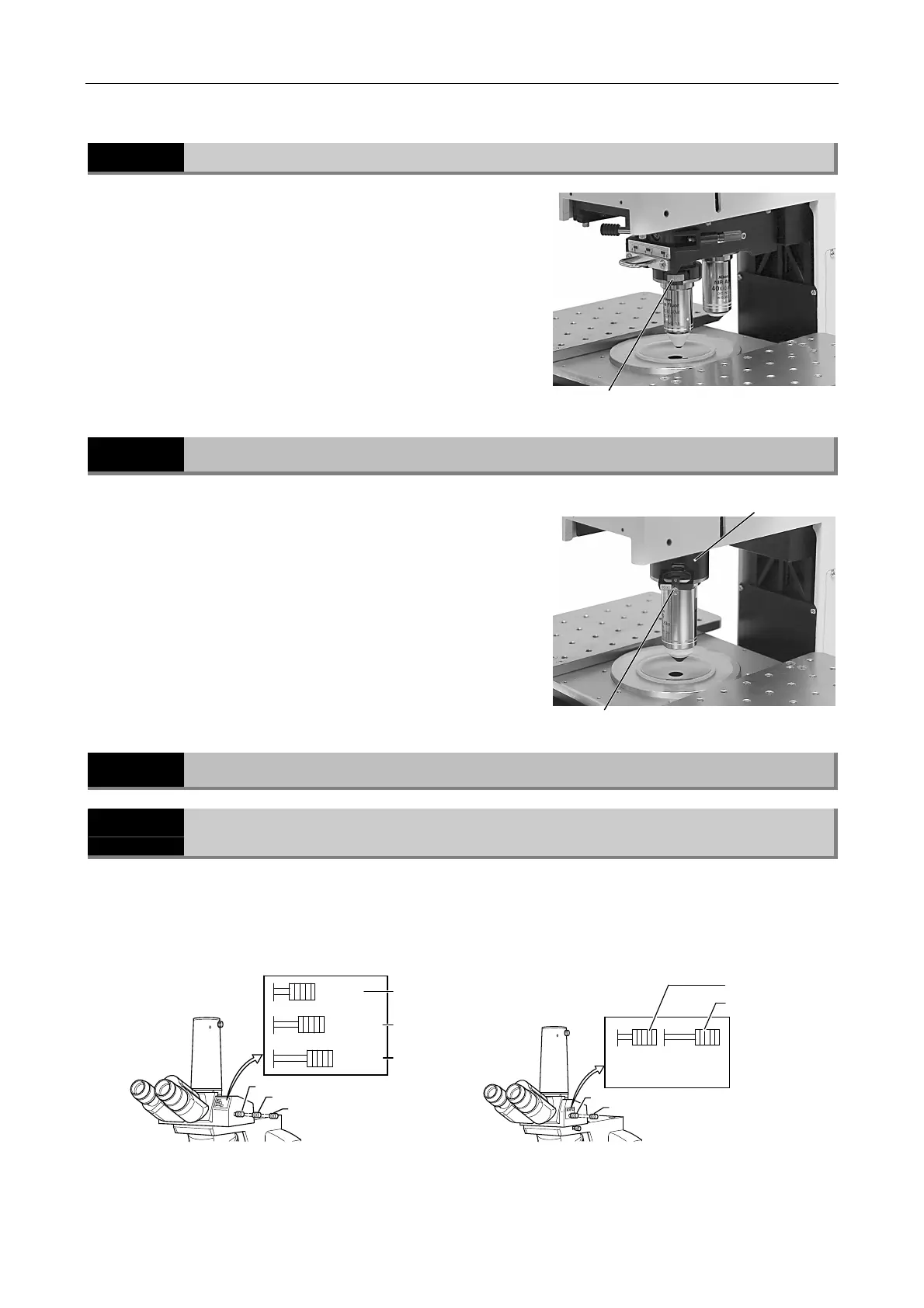

Chapter 3 Operation of Each Part
3 Single Objective Holder
21
3
2.6
Attaching/Detaching the DIC Slider
To attach/detach the DIC slider for the DIC microscopy,
lower the objective.
The DIC sliders are inserted into the DIC slider slots on
the front right side of the both objectives.
DIC slider
3
Single Objective Holder
The single objective holder is used only for the LWD 16x
water immersion type objective.
The DIC slider for the DIC microscopy is inserted into the
DIC slider slot on the upper side of the objective clamp
screw.
4
Eyepiece Tube
4.1
Selecting the Optical Path in the Eyepiece Tube (T Eyepiece Tube, F Eyepiece
Tube)
The optical path selector lever can be used to select the way to distribute light to the binocular part
and the vertical tube.
Lever position
BINO
BINO
&
1
2
3
1
2
3
BINO
1
2
1
2
T eyepiece tube F eyepiece tube
Distribution of light
Binocular part:
vertical tube
100：0
20：80
0：100
Binocular part:
vertical tube
100：0
0：100
DIC slider
Single objective holder
Distribution of light
Lever position
