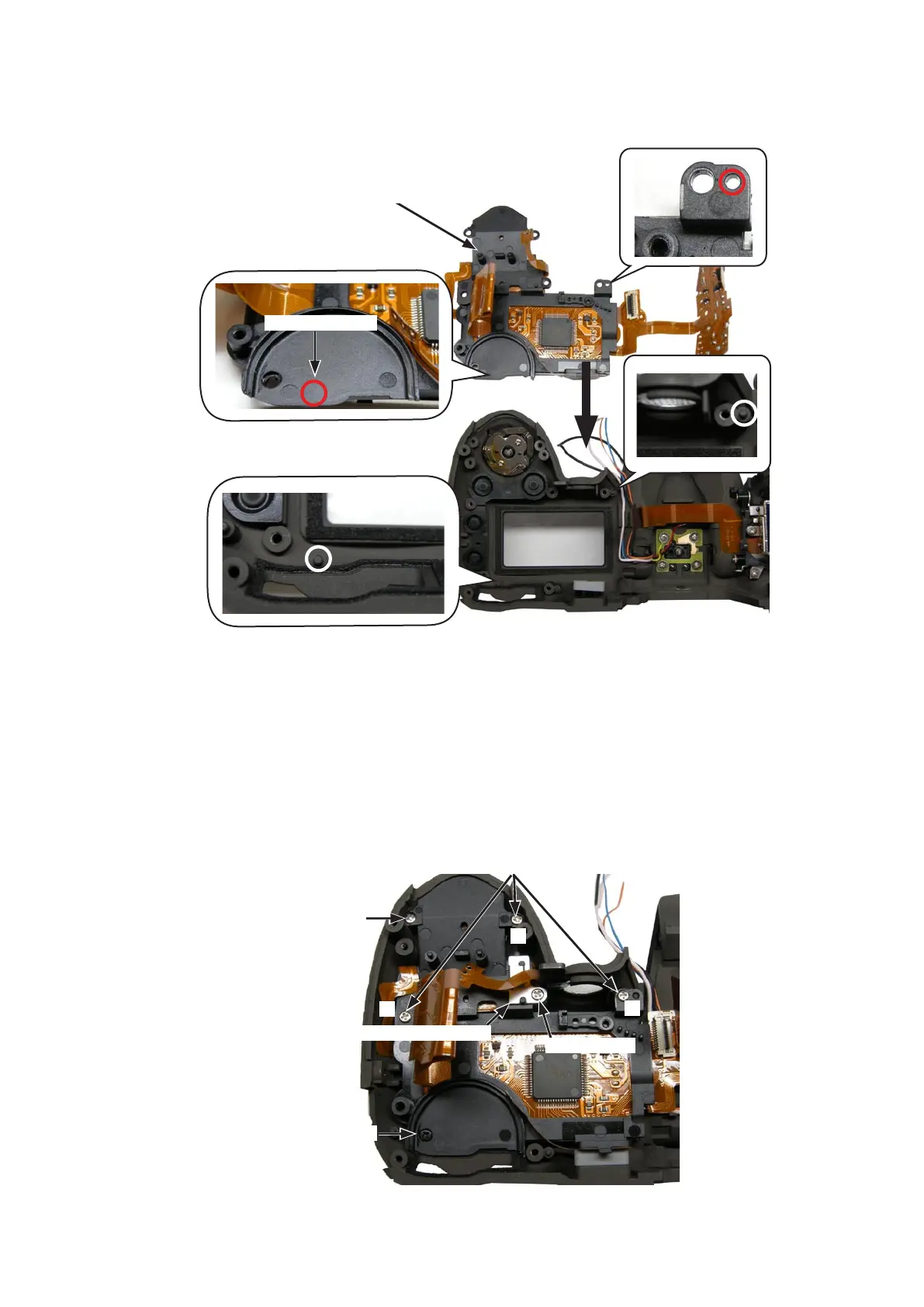

・Mount the top cover FPC unit (#B1007RP) by fitting with the boss.Mount the top cover FPC unit (#B1007RP) by fitting with the boss.

Boss hole at back

・Mount the arrangement plate (#340), and tighten the screw (#612).Mount the arrangement plate (#340), and tighten the screw (#612).

・Tighten the three screws (#612) (which are for the top cover FPC unit) in numeric order ( ①→②→③ ) .Tighten the three screws (#612) (which are for the top cover FPC unit) in numeric order ( ①→②→③ ) .→②→③ ) .②→③ ) .→③ ) .③ ) .

・Tighten the screw (#605).Tighten the screw (#605).

・Tighten the screw (#607).Tighten the screw (#607).

①

②

③

Top cover FPC unit (#B1007RP)

Screw (#607)

Screw (#605)

Screw (#612)

Arrangement plate (#340)

Screw

3 (#612) for the Top cover FPC unit (#B1007)
