Nokia 3310 User Manual

©2001 Nokia Mobile Phones. All rights reserved.
Your phone
20
■ Display indicators
Display indicators inform you of the current operation of the phone.

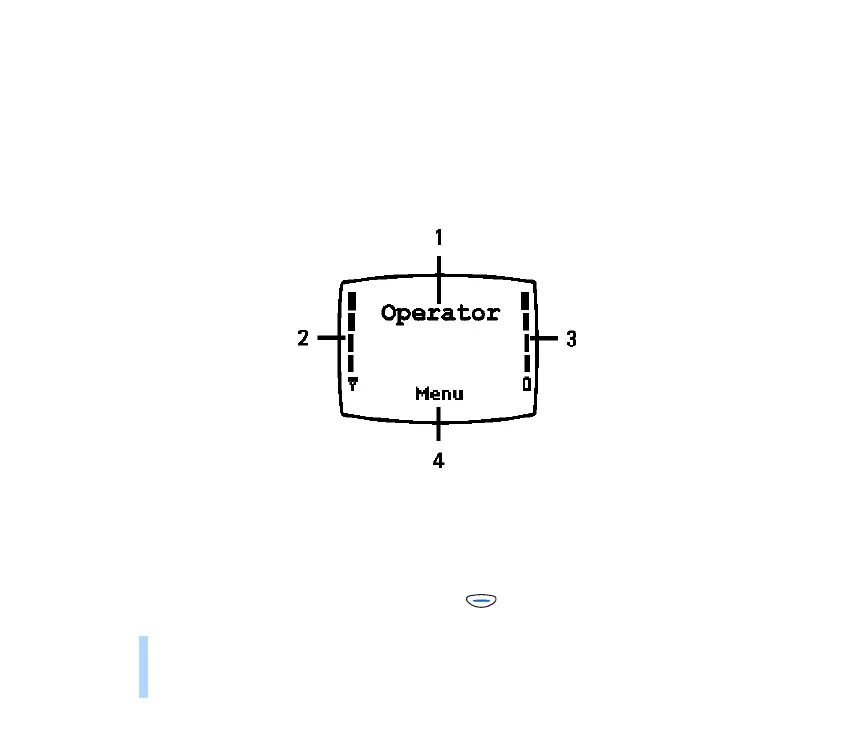

Standby mode
The indicators described below are shown when the phone is ready for use, with no characters keyed in
by the user. When this screen is shown, the phone is in ‘standby mode’.
1. Indicates in which cellular network the phone is currently used.
2. Shows the signal strength of the cellular network at your current location. The higher the bar, the
stronger the signal.
3. Shows the battery charge level. The higher the bar, the more power left in the battery.
4. Shows the current function of the Nokia Navi™ key ( ).

Nokia 3310 Specifications

General

FM radio	No
Ringer type	Monophonic
Networking type	GSM
Operating frequency	GSM 900 / GSM 1800 MHz
Battery type	BLC-2, BMC-3
Standby time (2G)	55 h

Weight and Dimensions

Depth	48 mm
Width	113 mm
Height	22 mm
Weight	133 g
