Nokia DNT2Mi sp/mp User Manual

Construction and interfaces
DN01145897 © Nokia Corporation 17 (128)
Issue 2-0 en Nokia Proprietary and Confidential

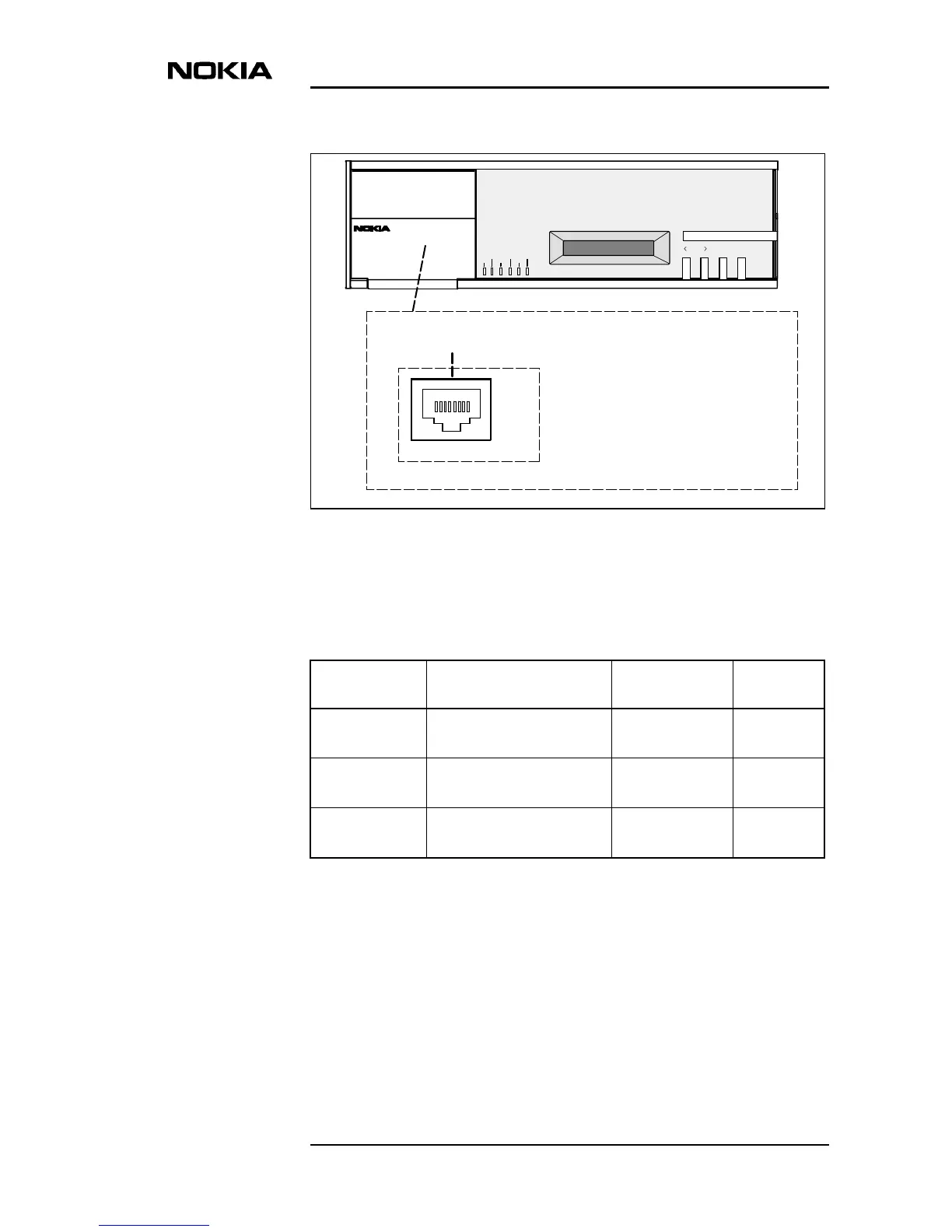

Figure 5. Local management connector
OK EXIT
DTR DSR DCD RTSCTS
STATUS
PWR TEST
P1
P2
P3
18
Local management connector
(RJ-45)
1. 107 (OUT) Tx b (OUT)
2. 108 (IN)
3. 109 (OUT) Tx a (OUT)
4. SG SG
5. 103 (IN) Rx b (IN)
6. 104 (OUT)
7. 105 (IN) Rx a (IN)
8. 106 (OUT)
V.28
V.11
Table 1. Management interface cables
Code Name Connector
type
Length
TX21750 Management cable
(ST -> ACL2i)
Euro c/4
3x7F/D15F
1.5 m
TX25741.06 Management cable
(PC -> ACL2i)
D9M/D9F 3 m
E64320.01 Management cable
(PC -> DNT2Mi)
RJ45/D9F 3 m
