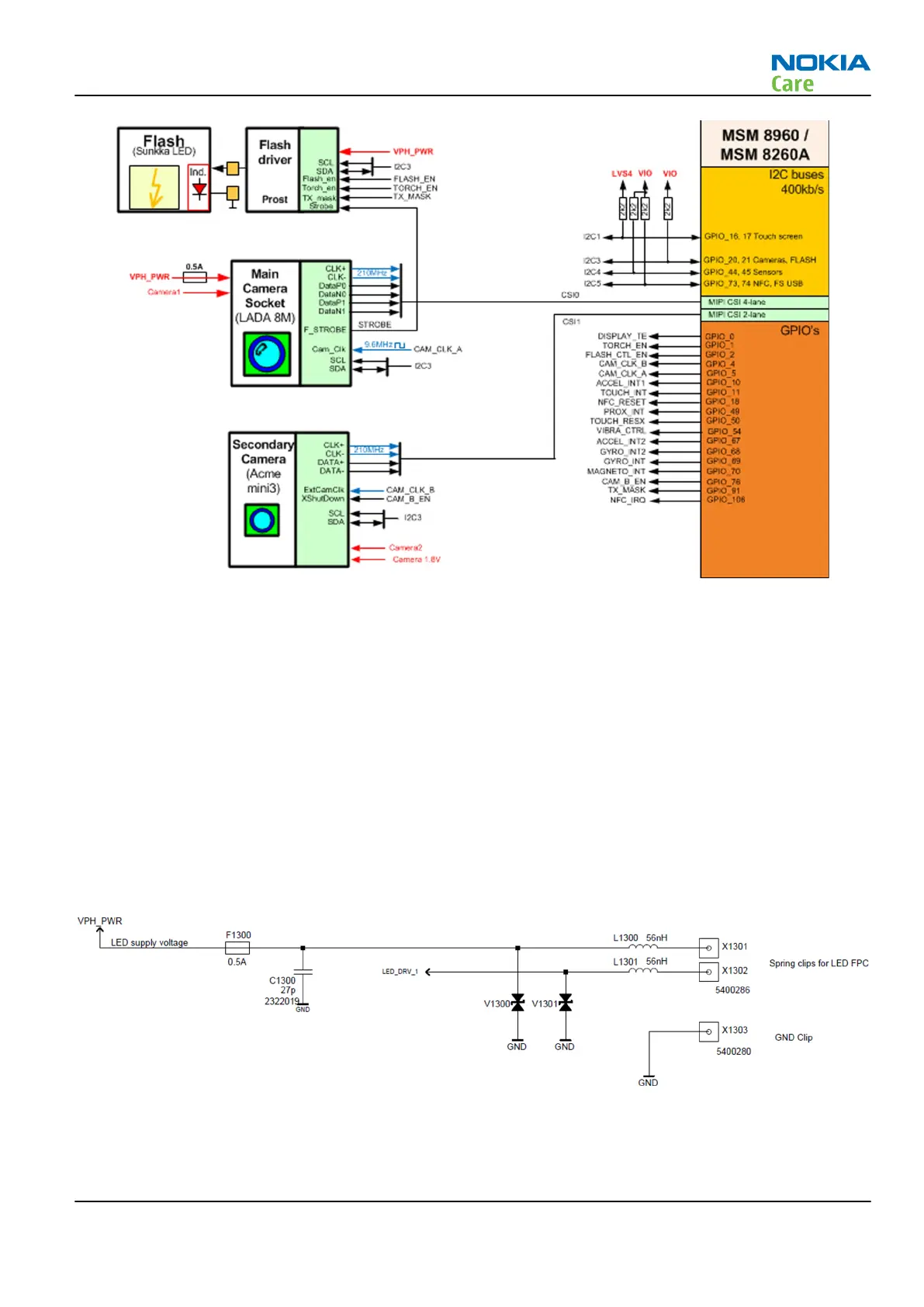

Figure 43 Camera system interface
Secondary camera (VGA Acme mini)
The secondary camera is a 0.3 MPix VGA fixed focus camera module. It is SMIA compliant, directly connected
to MSM8960 and controlled by the I2C bus. Image data is transferred to the MSM8960 for further processing
over a CCP based bus (SEC_CAM_CCP).
Flash (dual LED module)
A dual LED module, high power, white flash LEDs are for use as a camera flash and torch. The torch has
significantly reduced power compared to the image capture flash. There is a red LED inside the flash LED
module for video privacy indicator.
Illumination
BACK, HOME and SEARCH keys illumination is supported and is handled by three white LEDs (assembled in LED
Flex). These LEDs are controlled by PMIC (internal driver).
Figure 44 Illumination diagram
RM-824; RM-825; RM-826
System Module
Issue 2 NOKIA INTERNAL USE ONLY Page 6 – 19
Copyright © 2012 Nokia. All rights reserved.
