Function Description Item ref
WCDMA B8 PA N7520
SP10T antenna switch
module
N7505
Cellular RF technical description
The RM-826 transceiver unit supports GSM 850/900/1800/1900, EGPRS (EDGE), WCDMA Band I (2100), II (1900),
IV (1700/2100), V (850) and VIII (900), and HSPA. The transceiver is compatible with 3GPP Release 6
specification, and supports Bluetooth 2.1+EDR standard and WLAN a/b/g/n (2.4 GHz and 5.0 GHz). The
transceiver consists of a system/RF module which is referred to as the engine, a Bluetooth/WLAN/FM module,
and a GPS module for use while the engine is operating in either GSM or WCDMA mode.
The transceiver consists in one PWB. Located on the top side of the PWB it consists of RF, BT, WLAN and GPS
engines.
The RF module receives and demodulates the radio frequency signals from the base station and transmits
the modulated RF signals to the base station. It consists of the following functional sub-modules: Receiver,
Frequency Synthesizer and Transmitter.

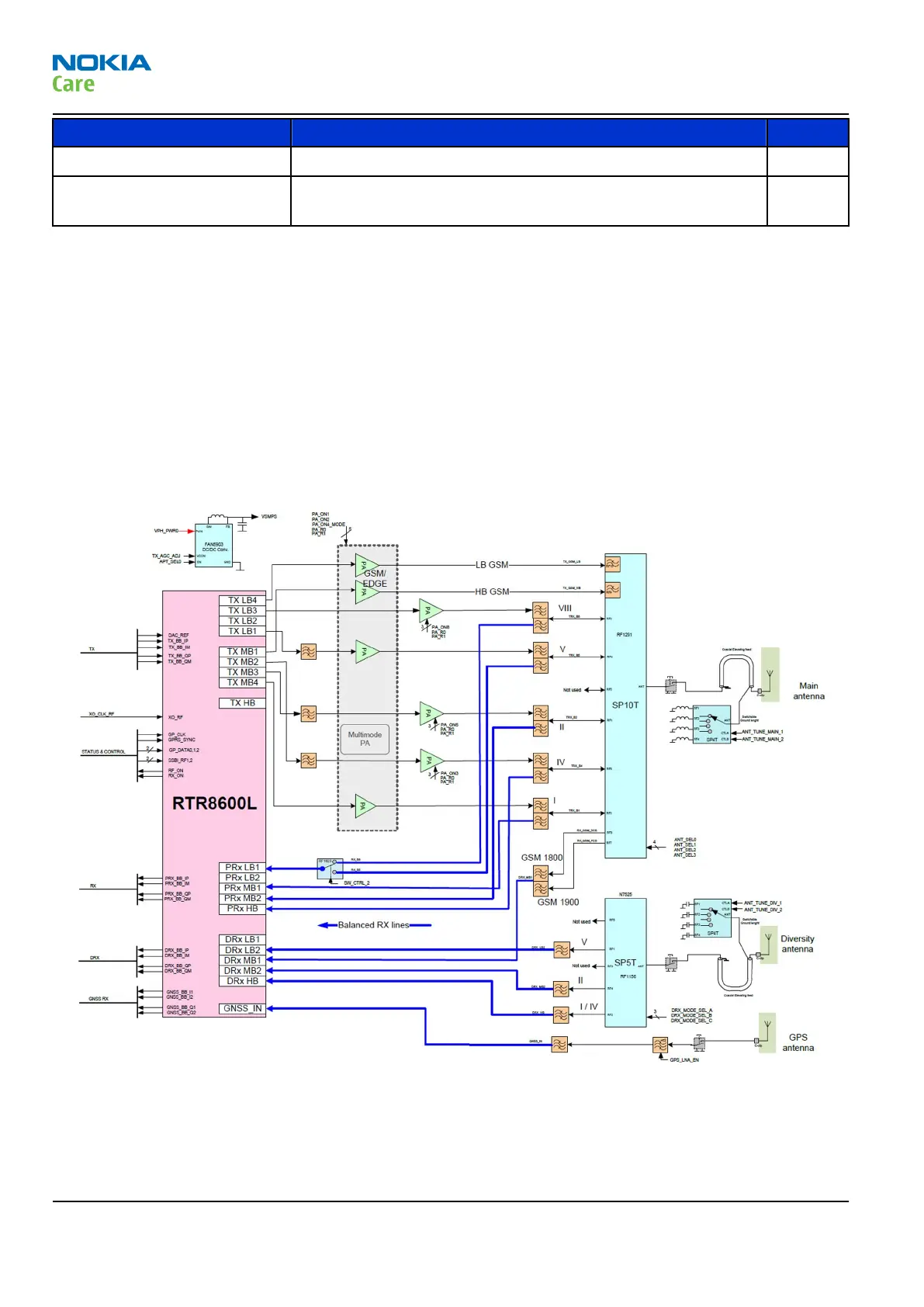

Figure 65 RF block diagram
RM-824; RM-825; RM-826
Service information differences between RM-826 and
RM-824
Page 8 – 12 NOKIA INTERNAL USE ONLY Issue 2
Copyright © 2012 Nokia. All rights reserved.
