Service tools
Product specific tools
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-824; RM-825; RM-826. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.

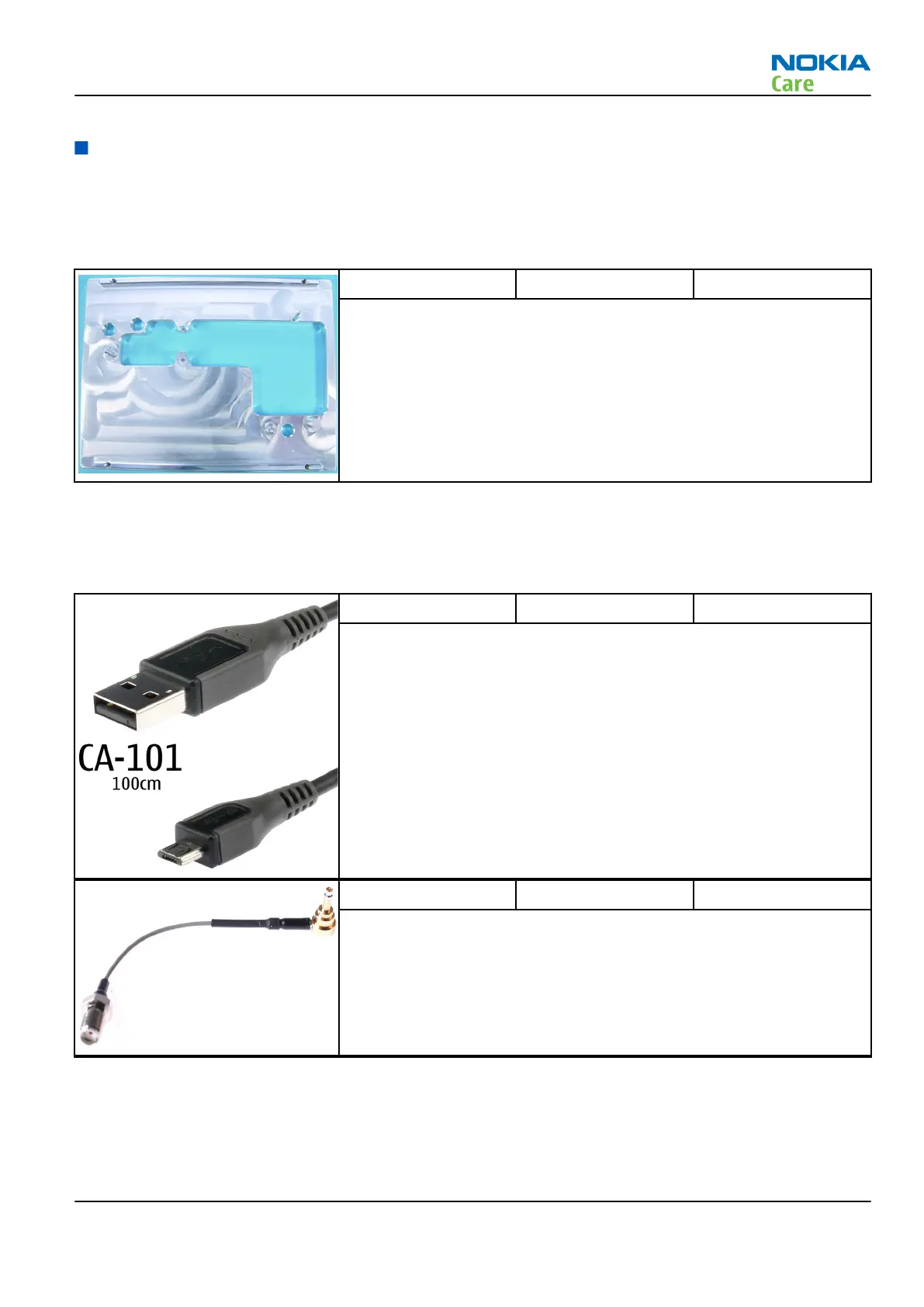

SS-293 RF guiding plate 0781542
SS-293 is an RF guiding plate used with MJ-305 module jig.
General tools
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-824; RM-825; RM-826. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
CA-101 Micro USB cable 0730634
The CA-101 is a USB-to-microUSB data cable that allows connections
between the PC and the phone.
CA-158RS RF tuning cable 0730390
Product-specific adapter cable for RF testing.
RM-824; RM-825; RM-826
Service Tools and Service Concepts
Issue 2 NOKIA INTERNAL USE ONLY Page 2 – 5
Copyright © 2012 Nokia. All rights reserved.
