Nokia RM-824 User Manual

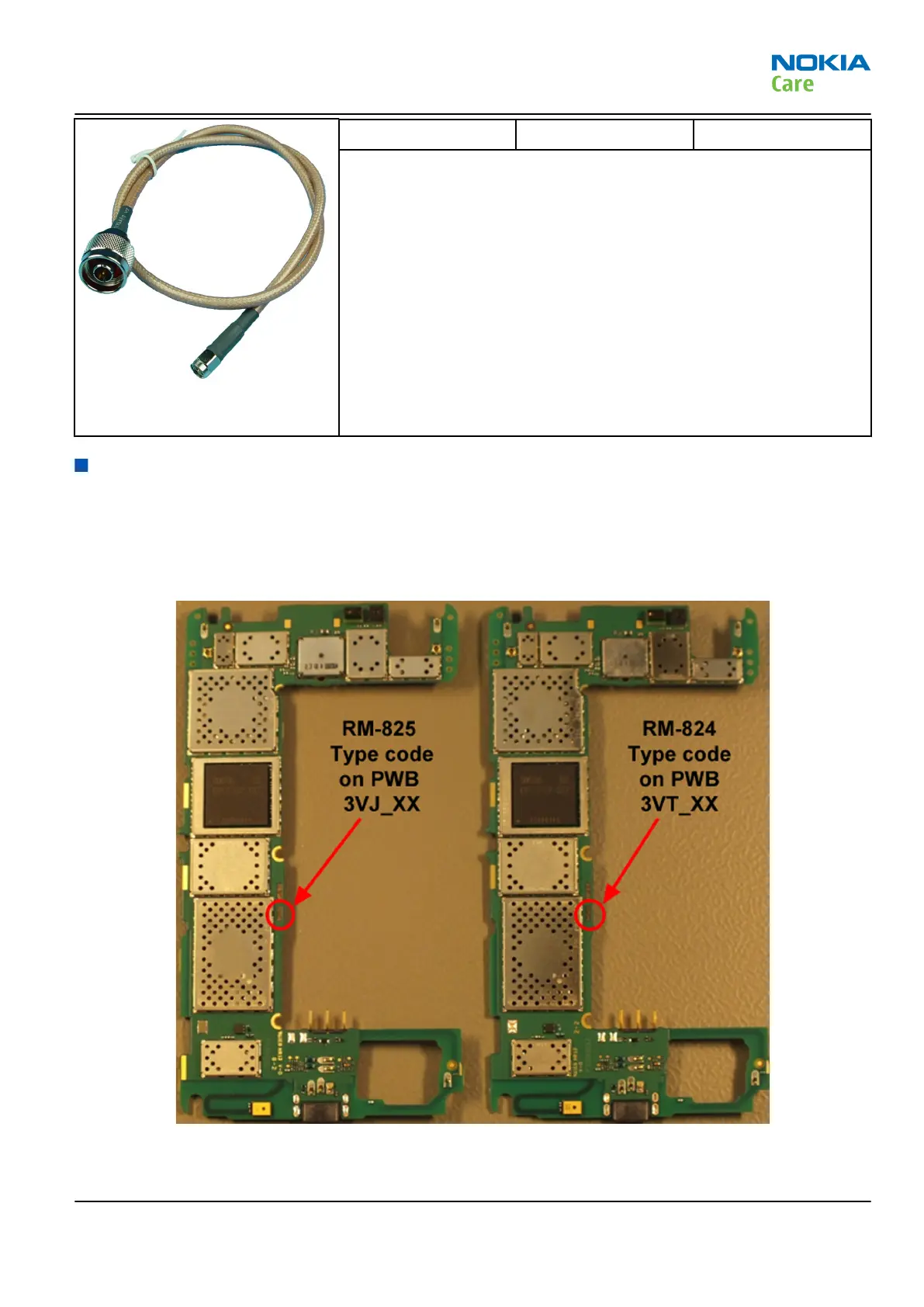

XRS-6 RF cable 0730231
The RF cable is used to connect, for example, a module repair jig to
the RF measurement equipment.
SMA to N-Connector approximately 610 mm.
Attenuation for:
•
GSM850/900: 0.3+-0.1 dB
•
GSM1800/1900: 0.5+-0.1 dB
•
WCDMA V/VIII: 0.3+-0.1dB
•
WCDMA I/II/IV: 0.5+-0.1dB
•
LTE B2/B4: 0.5+-0.1dB
•
LTE B5/B17: 0.3+-0.1dB
•
BT/WLAN: 0.5+-0.1dB
BB troubleshooting
PWB markings in RM-824 and RM-825
Mechanically RM-824 and RM-825 are identical and thus the HW differences are noticeable only by taking a
closer look at the PWB. As illustrated in the figure below, the markings on the PWB enable quick
differentiation between the two variants.
Figure 57 PWB markings in RM-824 and RM-825
RM-824; RM-825; RM-826
Service information differences between RM-824 and
RM-825
Issue 2 NOKIA INTERNAL USE ONLY Page 7 – 13
Copyright © 2012 Nokia. All rights reserved.
