Notifier AM-6000 User Manual

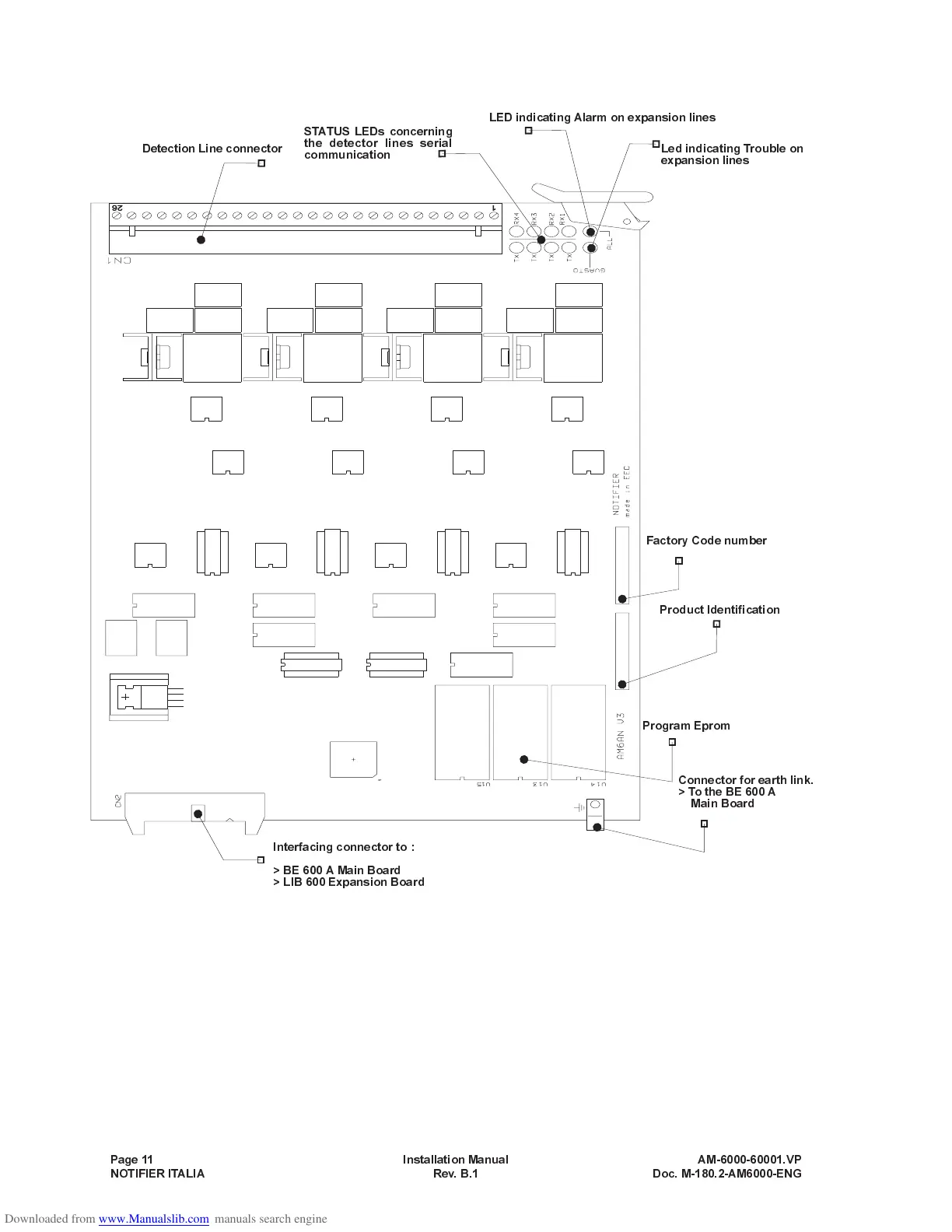

“LIB-600" EXPANSION BOARD LAYOUT
Page 11 Installation Manual AM-6000-60001.VP
NOTIFIER ITALIA Rev. B.1 Doc. M-180.2-AM6000-ENG
1 26
Detection Line connector
Led indicating Trouble on
expansion lines
LED indicating Alarm on expansion lines
STATUS LEDs concerning
the detector lines serial
communication
Factory Code number
Product Identification
Program Eprom
Connector for earth link.
> To the BE 600 A
Main Board
Interfacing connector to :
> BE 600 A Main Board
> LIB 600 Expansion Board
