ALARM CONDITION CURRENT LOAD
The table 3 allows the system designer to determine the current load that must be supported by the main power
supply during an alarm condition.
The total current drawn from the Main Power Supply in alarm condition cannot exceed 3.0 Amps.
Enter the number of devices, for each type, the control panel must power simultaneously during alarm
conditions.
»
NOTE
for conventional detectors : in table 3 use the current value indicated for the alarm condition
(refer to manufacturer’s instructions for detector current draws).

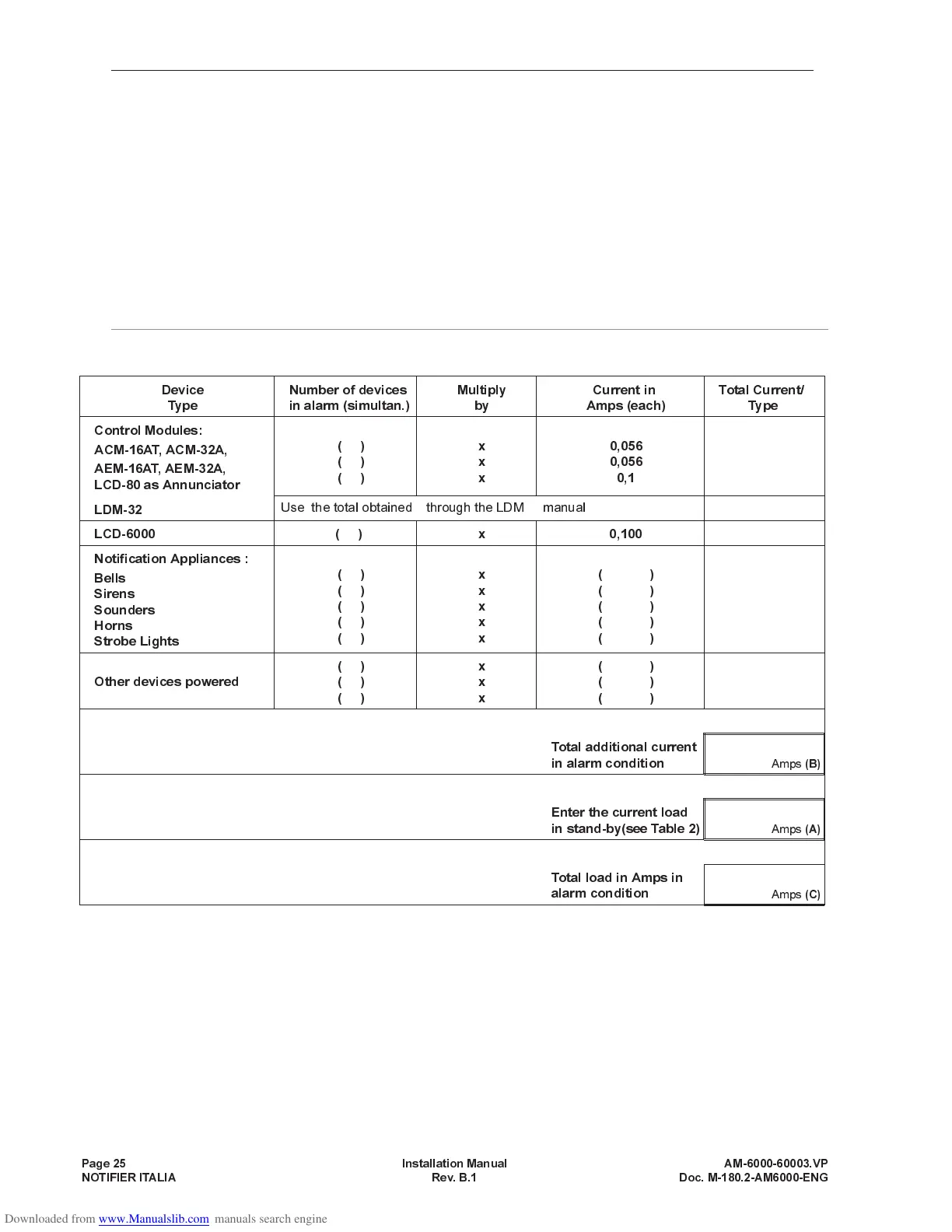

Table 3 : alarm condition current requirements
»
N.B. : If the total load obtained exceeds 3.0 Amps (provided by the power supply), the batteries will
supply the current to support alarm conditions.
Page 25 Installation Manual AM-6000-60003.VP
NOTIFIER ITALIA Rev. B.1 Doc. M-180.2-AM6000-ENG
Device
Type
Number of devices
in alarm (simultan.)
Multiply
by
Current in
Amps (each)
Total Current/
Type
Control Modules:
ACM-16AT, ACM-32A,
AEM-16AT, AEM-32A,
LCD-80 as Annunciator
()
()
()
x
x
x
0,056
0,056
0,1
LDM-32
Use the total obtained through the LDM manual
LCD-6000 ( ) x 0,100
Notification Appliances :
Bells
Sirens
Sounders
Horns
Strobe Lights
()
()
()
()
()
x
x
x
x
x
()
()
()
()
()
Other devices powered
()
()
()
x
x
x
()
()
()
Total additional current
in alarm condition
Amps
(B)
Enter the current load
in stand-by(see Table 2)
Amps
(A)
Total load in Amps in
alarm condition
Amps
(C)
