Notifier AM-6000 User Manual

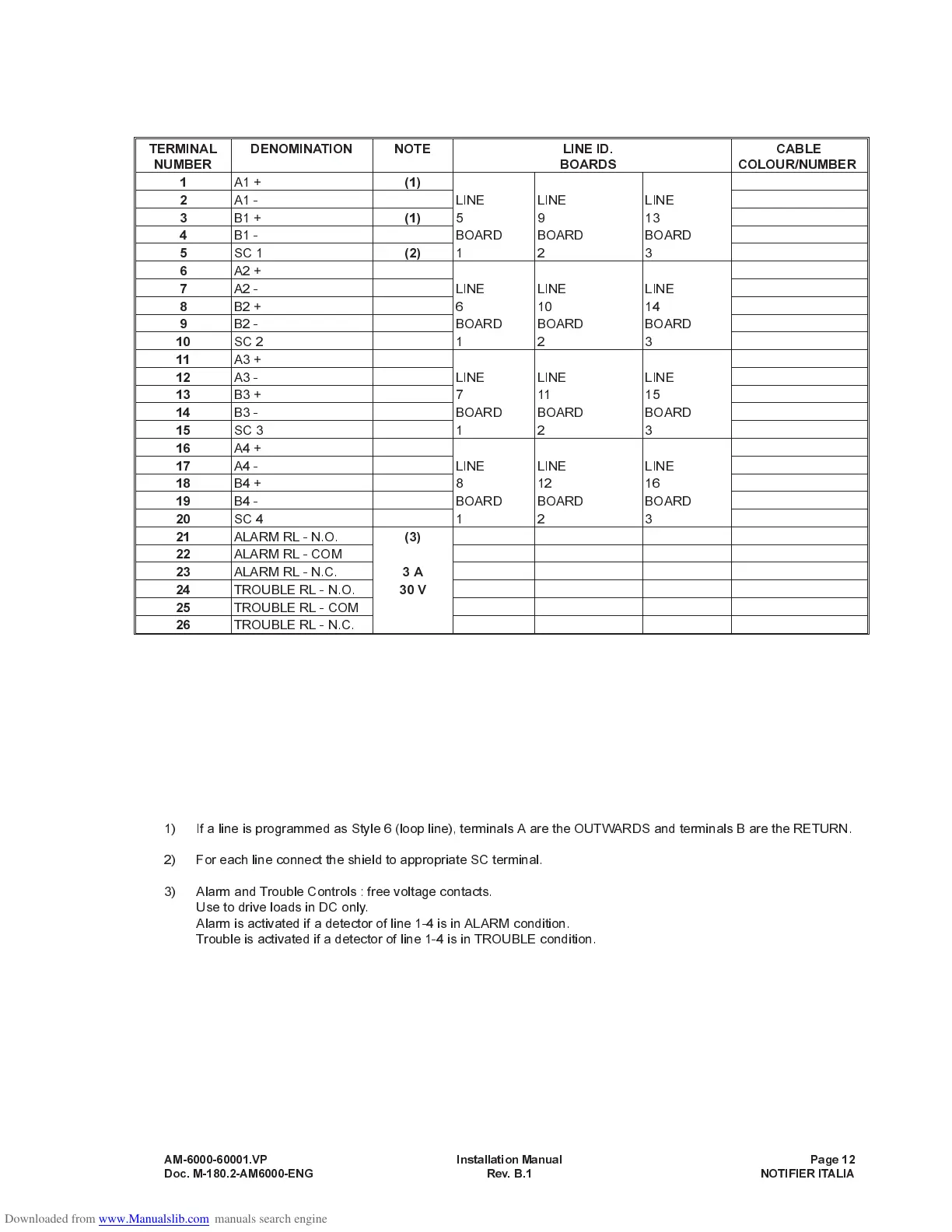

CONNECTOR CN1 on “LIB-600" EXPANSION BOARD
»
NOTE :
1) If a line is programmed as Style 6 (loop line), terminals A are the OUTWARDS and terminals B are the RETURN.
2) For each line connect the shield to appropriate SC terminal.
3) Alarm and Trouble Controls : free voltage contacts.
Use to drive loads in DC only.
Alarm is activated if a detector of line 1-4 is in ALARM condition.
Trouble is activated if a detector of line 1-4 is in TROUBLE condition.
AM-6000-60001.VP Installation Manual Page 12
Doc. M-180.2-AM6000-ENG Rev. B.1 NOTIFIER ITALIA
TERMINAL
NUMBER
DENOMINATION NOTE LINE ID.
BOARDS
CABLE
COLOUR/NUMBER
1 A1 + (1)
2 A1 - LINE LINE LINE
3 B1 + (1) 59 13
4 B1 - BOARD BOARD BOARD
5 SC 1 (2) 12 3
6 A2 +
7 A2 - LINE LINE LINE
8 B2 + 6 10 14
9 B2 - BOARD BOARD BOARD
10 SC 2 1 2 3
11 A3 +
12 A3 - LINE LINE LINE
13 B3 + 7 11 15
14 B3 - BOARD BOARD BOARD
15 SC 3 1 2 3
16 A4 +
17 A4 - LINE LINE LINE
18 B4 + 8 12 16
19 B4 - BOARD BOARD BOARD
20 SC 4 1 2 3
21 ALARM RL - N.O. (3)
22 ALARM RL - COM
23 ALARM RL - N.C. 3A
24 TROUBLE RL - N.O. 30 V
25 TROUBLE RL - COM
26 TROUBLE RL - N.C.
