2 Starting the System

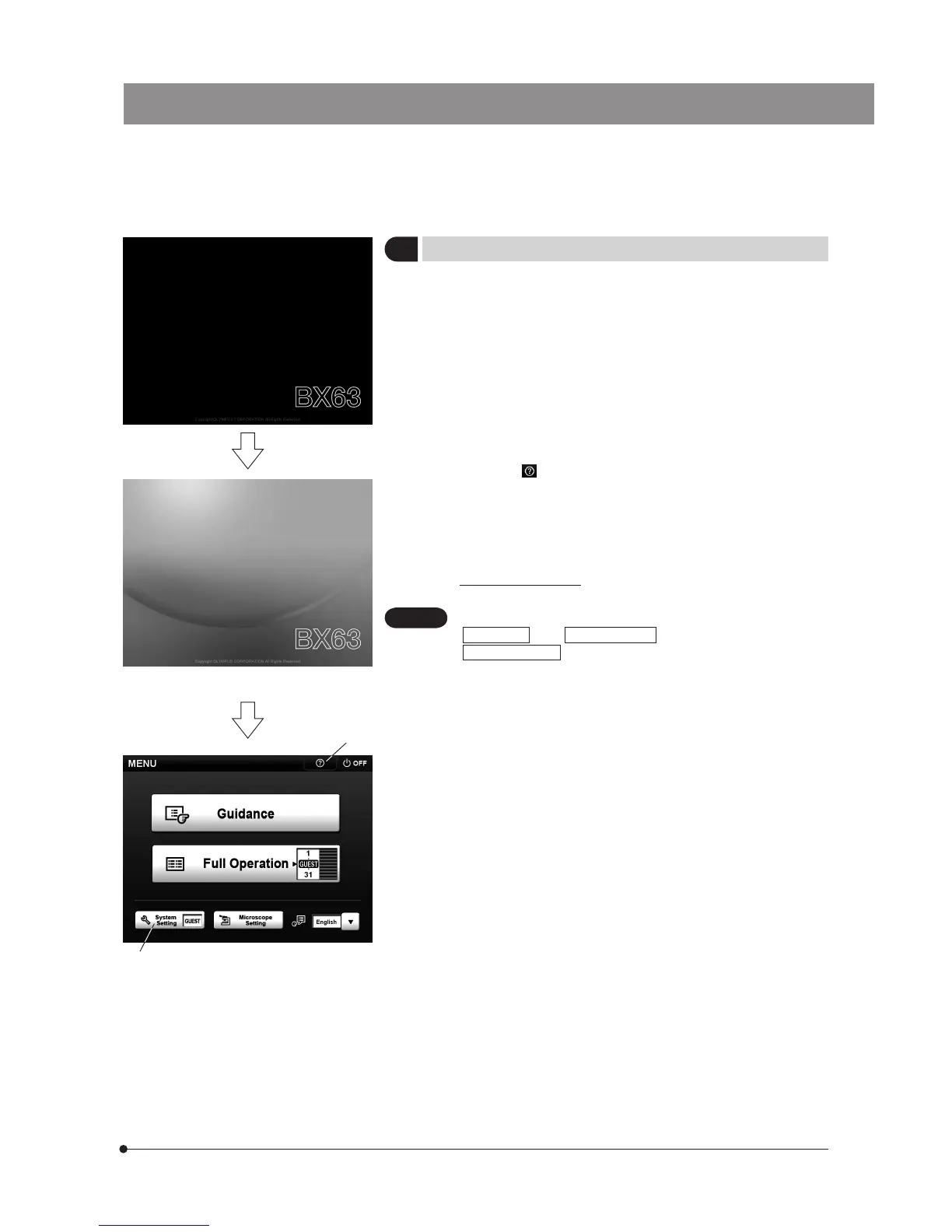

(Fig. 5)
1. Set the main switch of the BX3-CBH control box to “ I ” (ON).
2. Set the main switch on the rear panel of the touch panel controller to
ON.
3. If you are using the supersonic stage, set the main switch of its control
box to “ I ” (ON).
4. The black startup display is displayed (for about 20 seconds), and then
the blue startup display appears.
When the initialization completes, the [Mode selection display] appears.
} When the main switches of the BX3-CBH and touch panel controller are
already ON and the touch panel controller is in the standby mode, the
display starts with the blue display.
5. Touch the Help
button @ with your fingertip.
First read the following descriptions to understand how to operate the
touch panel controller.
· Basic operations of touch panel controller
· How to read the Help
· Guidance mode and Full Operation mode
The Function Description is to be referenced as required after starting
the actual operation.
When the touch panel controller is used for the first time,
Guidance
and
Full Operation
cannot be selected unless
System Setting
2 has been completed.
}The controller in the standby mode starts with
this display.
Fig. 5
2
1
