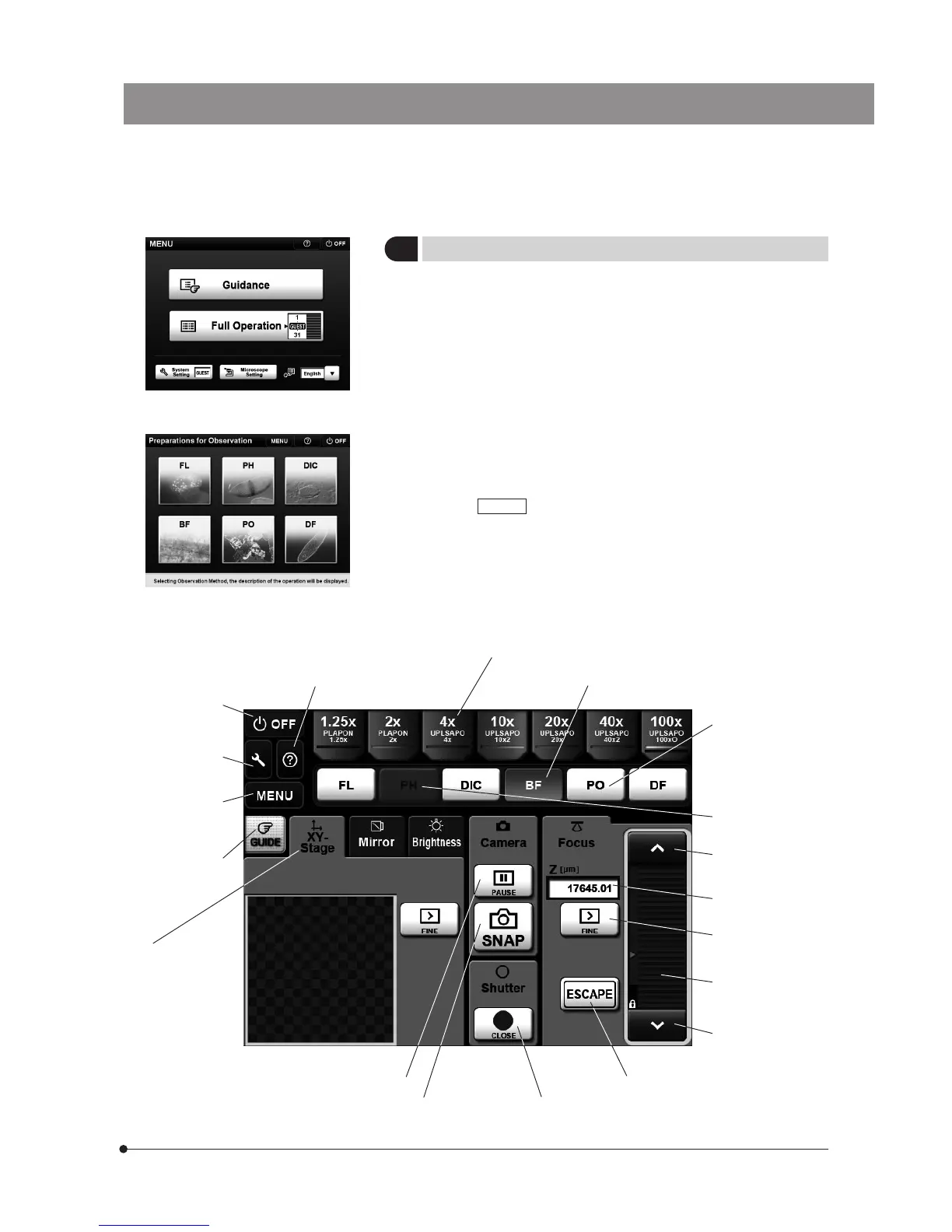

Fig. 17
Help button
OFF button
Setting button
Return (to MENU)
button
GUIDE button 1
Tab
(XY Stage/Mirror
Unit/Brightness)
10X objective selected (Displayed in blue)
BF observation selected (Displayed in blue)
Selection possible
item
(Displayed in white)
Selection impossible
items
(Displayed in gray)
Focus value
Focus Up button
Coarse/fine selector
button
Focus slider
Focus Down button
Escape Objective button
Shutter buttonExposure button
LIVE (Observing) button
Fig. 15
Fig. 16
4 Selecting the Mode
(Figs. 15 to 17)
1. Tap the desired mode in the [MENU] display.
· Guidance: The basic settings of microscope are performed automa-
tically with simple operations.
· Full Operation: In addition to the functions available with the Guidance
mode, details settings of the microscope can be modi-
fied.
2. When the [Preparation for Observation] screen is displayed (Guidance
mode only), tap the observation method to be used (Fig. 16).
When the [Observation Menu Description] screen is displayed, read it
and then tap the [X] button.
3. The control screen is displayed. The example shown in Fig. 17 is the
control screen for the Guidance mode, 10X objective and BF (brightfield)
observation.
} Tap the
GUIDE
button 1 to view the observation procedure (Guidance
mode only).
To Next Page
