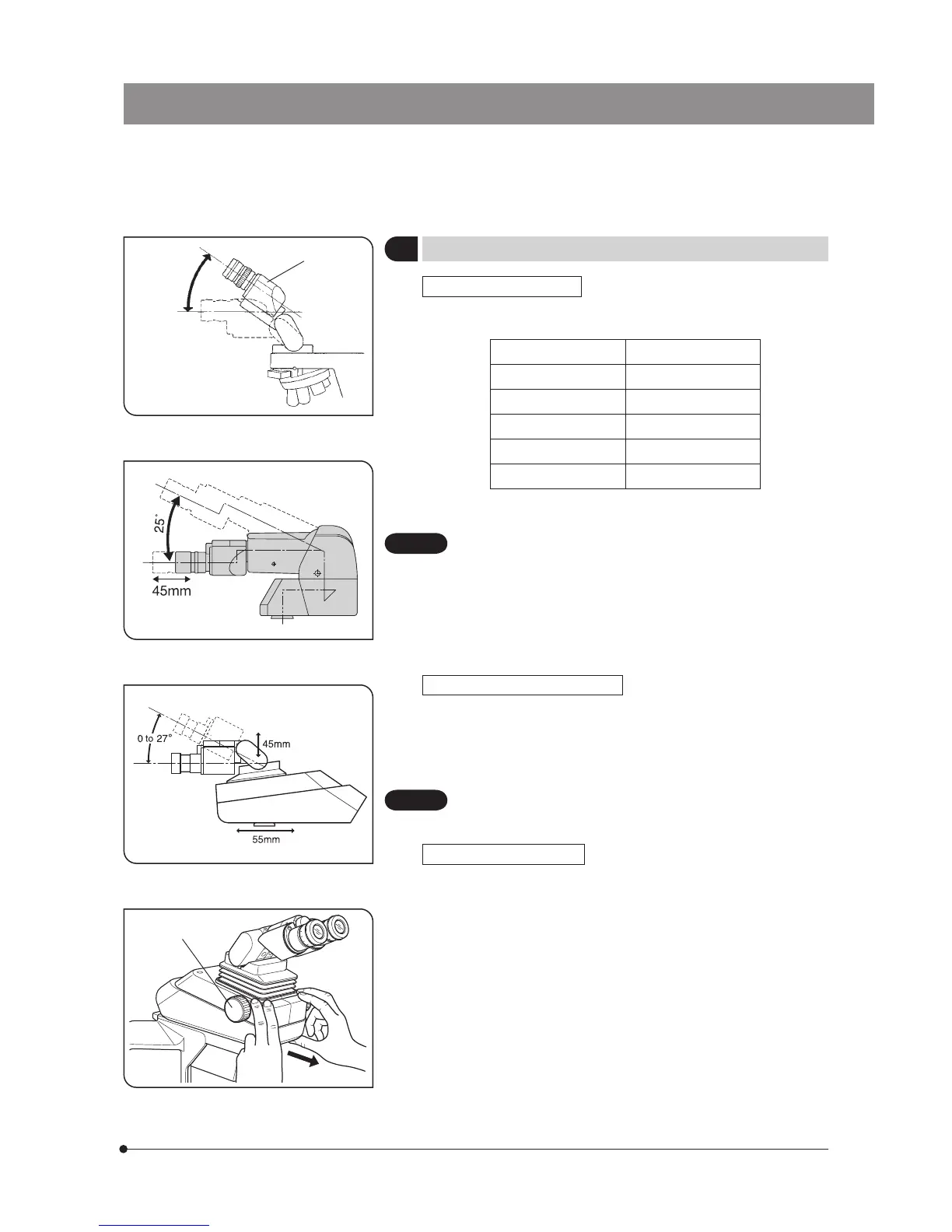

6 Adjusting the Tilt
(Figs. 39 to 42)
With the U-TBI-3 (Fig. 39)
} Adjust the height and tilt of the observation tube to obtain the most
comfortable viewing position.
U-TBI-3 5 to 35°
U-TBI-3-CLI 5 to 35°
U-ETBI 0 to 25°
U-TTBI 0 to 25°
U-TTR-2 5 to 35°
U-TTLBI 0 to 27°
Holding the binocular section @ with both hands, raise or lower it to the
desired position.
Never attempt to force the binocular section past the upper or
lower stop position. Applying excessive force could destroy the
limiting mechanism.
} The U-TBI-3/U-TBI-3-CLI/U-TTLBI can be used in combination with only
one intermediate attachment.
} If you need photography using the U-TBI-3/U-TBI-3-CLI/U-TTLBI, use the
U-TRU trinocular tube.
With the U-ETBI/U-TTBI (Fig. 40)
The U-ETBI and U-TTBI are ergonomic observation tubes with normal
field, capable of the adjustments of the positioning angle (0 to 25°) as
well as front-rear positioning (by 45 mm) of the eyepieces. The U-ETBI is
the erect image model and the U-TTBI is the inverted image model, and
both models are of the same size.
The intermediate attachments that can be combined with the
U-TTBI are limited. For details, please contact Olympus.
With the U-TTLBI (Fig. 41)
The U-TTLBI is a lifting and telescopic binocular tube with the following
adjustment capabilities.
· Angle adjustment (0 to 27°)
· Up-down position adjustment (45 mm)
· Front-rear position adjustment (55 mm)
} When adjusting front-rear position of the observation tube, hold the base
of the observation tube as shown in Fig. 42.
} When storing the microscope, increase the angle of the eyepieces so as
to prevent the eyepieces from dropping.
} To adjust the up-down position of the eyepiece, turn the dial 2.
Fig. 39
Fig. 40
Fig. 41
Fig. 42
1
2
CAUTION
CAUTION
5 to 35°
