Fig. 20
Fig. 21
Fig. 22

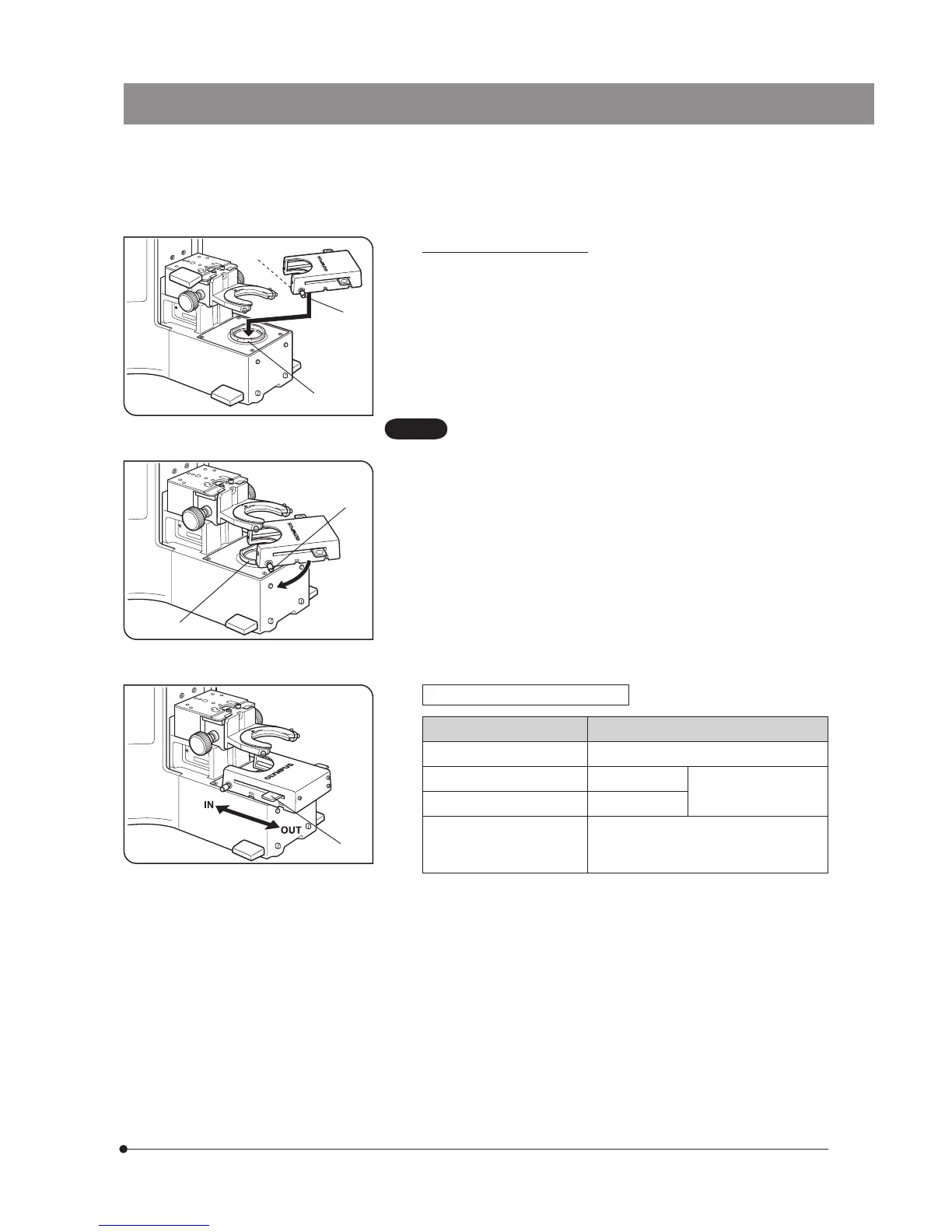

Mounting the Filter Cassette
} Before mounting the filter cassette, remove the dummy cover (or the
U-MCZ controller) first.
1. Fully loosen the filter cassette clamping screw 3. (Fig. 20)
2. Align the key | on the bottom surface of the filter cassette with the
positioning slot 5 on the filter mount, then snap the filter cassette into
place from above.
3. Rotate the filter cassette to align its sides with the base. (Fig. 21)
4. Align the clamping screw 3 with the positioning hole 6 on the filter
mount, then tighten the screw to fasten the filter cassette.
When the filter cassette is installed, the condenser may hit the
filter cassette when lowered. Therefore, exercise caution when
lowering the condenser with the filter cassette installed.
CAUTION
Using the Filter Cassette (Fig. 22)
Usable Filters Applications
45-ND6, 45-ND25 Neutral density filter
45G-530, 45IF550-W45 Green
B&W contrast filters
45O-560 Orange
45-LBD-IF
Color temperature conversion filter (day-
light)[For exclusive use with halogen bulb
light source]
Up to three of the above filters can be loaded in the filter cassette. Moving
the levers † on the left and right sides of the cassette to the IN position
brings the corresponding filter into the light path.
6
4
3
5
7
3
