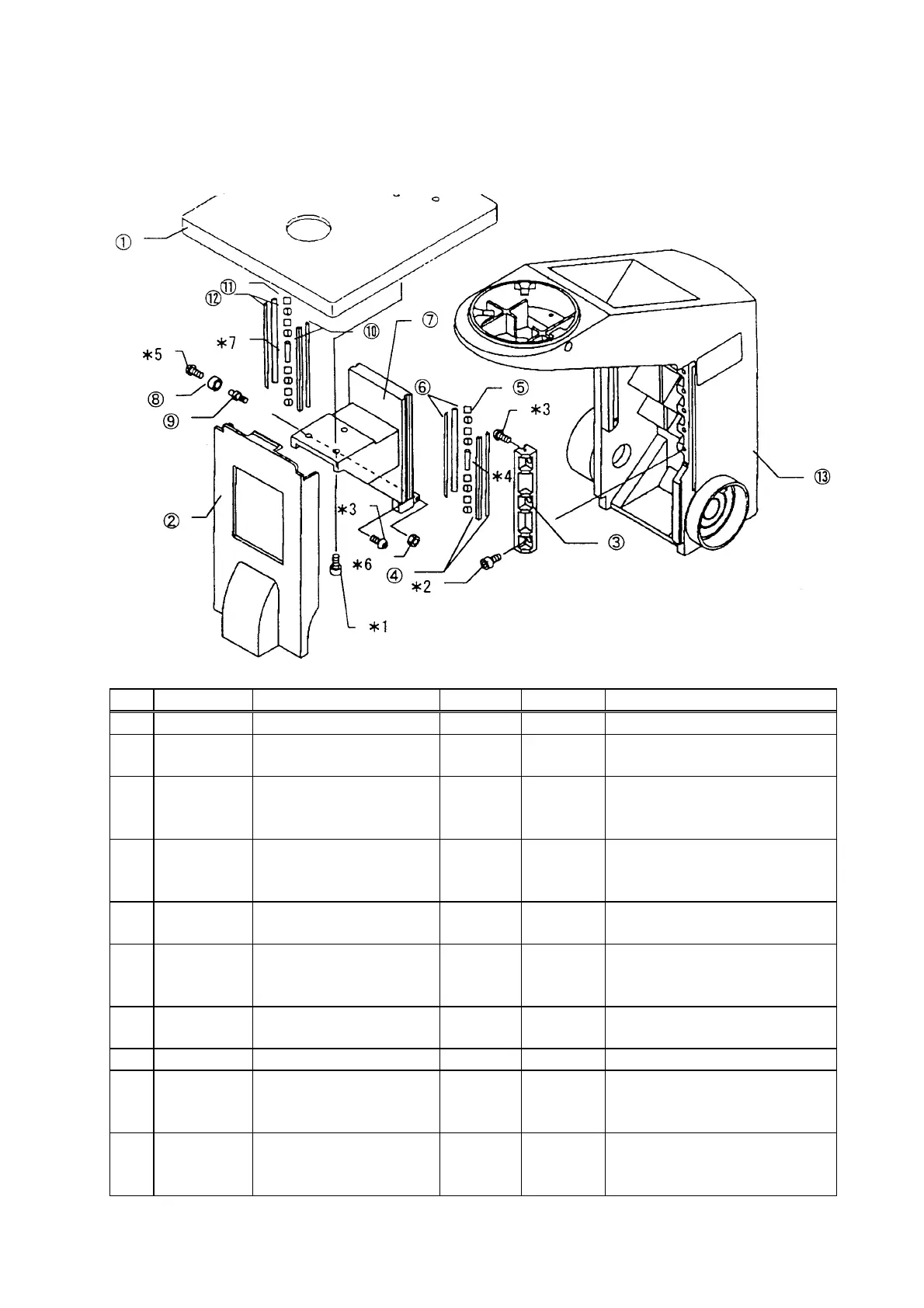

CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-4
1-3 Guide unit
No. Parts name Screw Grease Adhesive Remarks
•
STAGE AB3X8SA (*1) 3 pcs.
‚
FRONT
COVER
Remove the base. ( See C-1.)
ƒ
OUTER
GUIDE
AB3X12SA (*2) 3 pcs.
CUTB2X4SA (*3)
2 pcs.
OT2008 Apply grease on the fitting
surface of wire guide „ thinly.
„
WIRE
GUIDE
(2 pcs.)
OT2008
…
ROLLER
(8 pcs.)
NP2.5X22UO (*4)
†
WIRE
GUIDE
(2 pcs.)
OT2008
‡
INNER
GUIDE
CUTB2X4SA (*3)
2 pcs.
OT2008
ˆ
BEARING 3PUK2X3SA (*5)
‰
SHAFT 6N3SA (*6) OT1028 Apply adhesive on the M2 tap
hole and the outside diameter of
screw.
±
10
WIRE
GUIDE
(2 pcs.)
OT2008
