CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-10

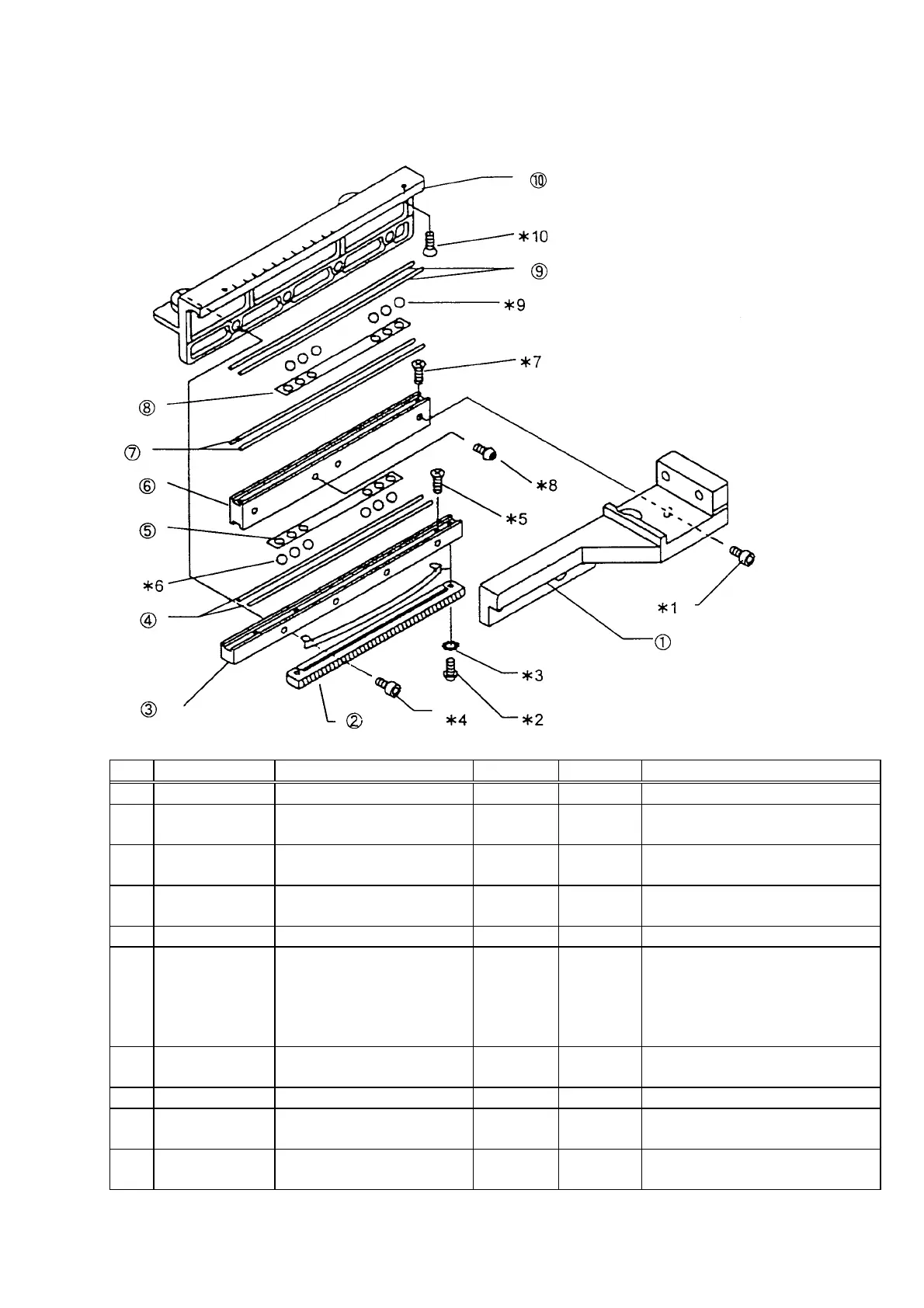

3-3 Y-guide unit
No. Parts name Screw Grease Adhesive Remarks
•
BODY AB3X10SA (*1) 3 pcs.
‚
Y-RACK 3PUK2X6SA (*2) 2 pcs.
HWB2SA (*3) 2 pcs.
OT1131 Apply adhesive on the screw head.
ƒ
VERTICAL
GUIDE-3
AB3X10SA (*4) 4 pcs.
PSTB1. 7X3SA (*5) 2 pcs.
Apply grease on the fitting surface
of wire guide „ thinly.
„
WIRE GUIDE
(2 pcs.)
OT2008
…
CASING B3SO (*6) 6 pcs. OT2008 Apply grease on the balls.
†
VERTICAL
GUIDE-2
CUK3X8SA (*8)
PSTB1. 7X3SA (*7) 4 pcs.
OT2008 Apply grease on the fitting surface
of wire guide ‡ thinly.
Rotation force at assembling the
X/Y-knob: 0.49 - 1.96N {50 - 200
g}
‡
WIRE GUIDE
(2 pcs.)
OT2008
ˆ
CASING B3SO (*9) 6 pcs. OT2008 Apply grease on the balls.
‰
WIRE GUIDE
(2 pcs.)
OT2008
±
10 VERTICAL
GUIDE-1
PSTB1. 7X3SA (*10)
2 pcs.
OT2008 Apply grease on the fitting surface
of wire guide ‰ thinly.
