176
Programming Console Operations Section 4-2
Note The operating mode can be changed without altering the current monitor dis-
play by holding down the SHIFT Key and then changing the operating mode.

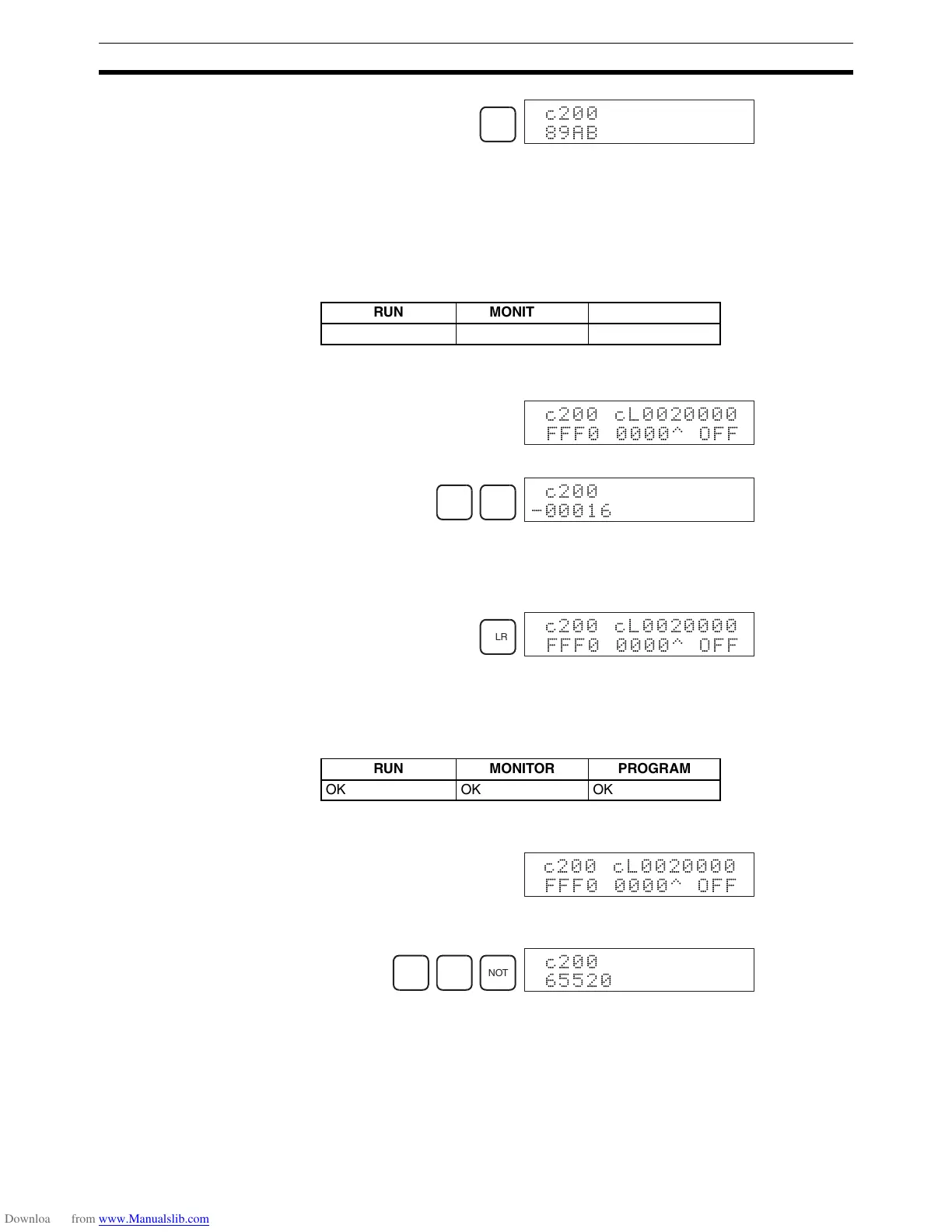

4-2-18 Signed Decimal Monitor
This operation converts the contents of the specified word from signed hexa-
decimal (twoâs complement format) to signed decimal for display. The opera-
tion can be executed while using I/O monitoring, multiple address monitoring
or 3-word monitoring.
1,2,3... 1. Monitor the word that is to be used for decimal monitor with sign. During
multiple address monitoring, the leftmost word will be converted.
(Multiple address monitor)
2. Press the SHIFT+TR Keys to display the leftmost word as signed decimal.
At this point, the contents of the displayed word can be changed with a
signed-decimal input. Refer to
4-2-24 Signed Decimal Data Modification.
3. Press the CLR Key or the SHIFT+TR Keys to end the unsigned decimal
display and return to normal monitoring.
4-2-19 Unsigned Decimal Monitor
This operation is used to convert hexadecimal data in a word to unsigned dec-
imal for display. The operation can be executed while using I/O monitoring,
multiple address monitoring or 3-word monitoring.
1,2,3... 1. Monitor the word that is to be used for decimal monitor without sign. During
multiple address monitoring, the leftmost word will be converted.
Multiple address monitoring
2. Press the SHIFT+TR+NOT Keys to display the leftmost word as unsigned
decimal.
At this point, the contents of the displayed word can be changed with an
unsigned-decimal input. Refer to
4-2-25 Unsigned Decimal Data Modifica-
tion
.
3. Press the CLR Key or the SHIFT+TR Keys to end the unsigned decimal
display and return to normal monitoring.
CLR
? îî
&')*
RUN MONITOR PROGRAM
OK OK OK
c200 cL0020000
FFF0 0000^ OFF
SHIFT TR
c200
-00016
CLR
c200 cL0020000
FFF0 0000^ OFF
RUN MONITOR PROGRAM
OK OK OK
c200 cL0020000
FFF0 0000^ OFF
SHIFT TR
NOT
? îî
$## î
