Unit Components Section 3-3

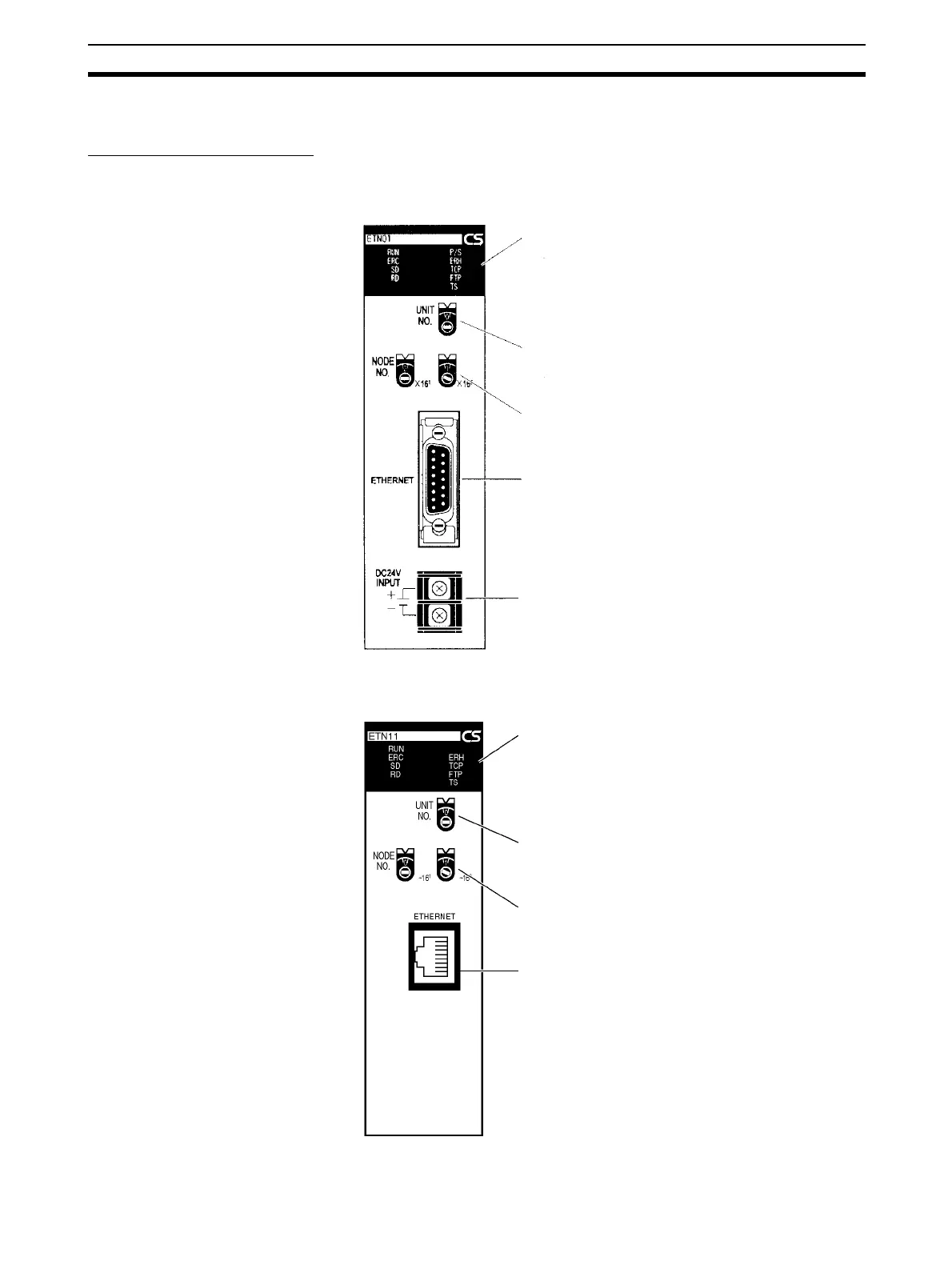

3-3-1 Nomenclature
CS-series Ethernet Units
CS1W-ETN01 (10Base-5)
CS1W-ETN11 (10Base-T)
Indicators
Display the operating status
of the Unit.
Unit Number Switch
Used to set the Ethernet Unit's unit
number in one digit hexadecimal.
Node Number Switches
Used to set the Ethernet Unit's FINS node
number in two digits hexadecimal.
Ethernet Connector
Used to connect the Ethernet transceiver cable.
Power Supply Terminals
Used to connect an external 24-VDC
power supply for the transceiver.
Front
Indicators
Display the operating status
of the Unit.
Unit Number Switch
Used to set the Ethernet Unit's unit
number in one digit hexadecimal.
Node Number Switches
Used to set the Ethernet Unit's FINS node
number in two digits hexadecimal.
Ethernet Connector
Used to connect the Ethernet transceiver cable.
Front
