42
Connecting to the Network Section 3-6
2. Connect the cable to the hub. Be sure to press in the cable until it locks into
place.
Examples of the above two steps are provided in Appendix A. Request ca-
ble installation from a qualified professional.

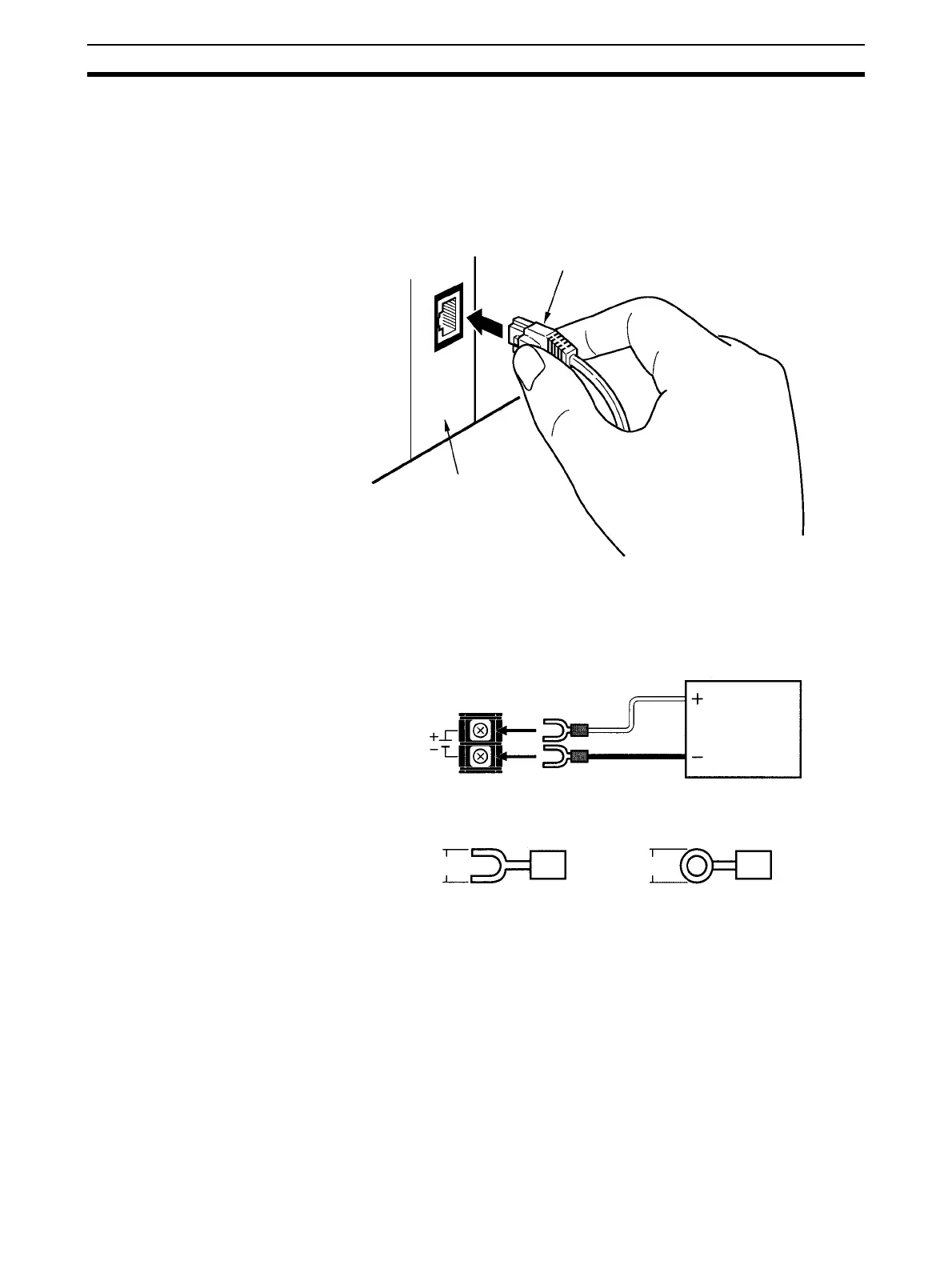

3. Connect the cable to the connector on the Ethernet Unit. Be sure to press
in the cable until it locks into place.
3-6-4 Connecting the Power Supply (CS1W-ETN01 Only)
Connect a 24-VDC power supply to the power supply terminals. The Ethernet
Unit converts this 24-VDC power supply to the power supply voltage for the
transceivers and provides it through the transceiver cable.
Crimp terminals must be used for the power supply cable. The applicable M3
crimp terminals and recommended products are shown below.
RJ45 Modular Connector
CS1W-ETN11
Example: CS1W-ETN11
24-VDC input
24-VDC power supply
6.2 mm max. 6.2 mm max.
