Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
20

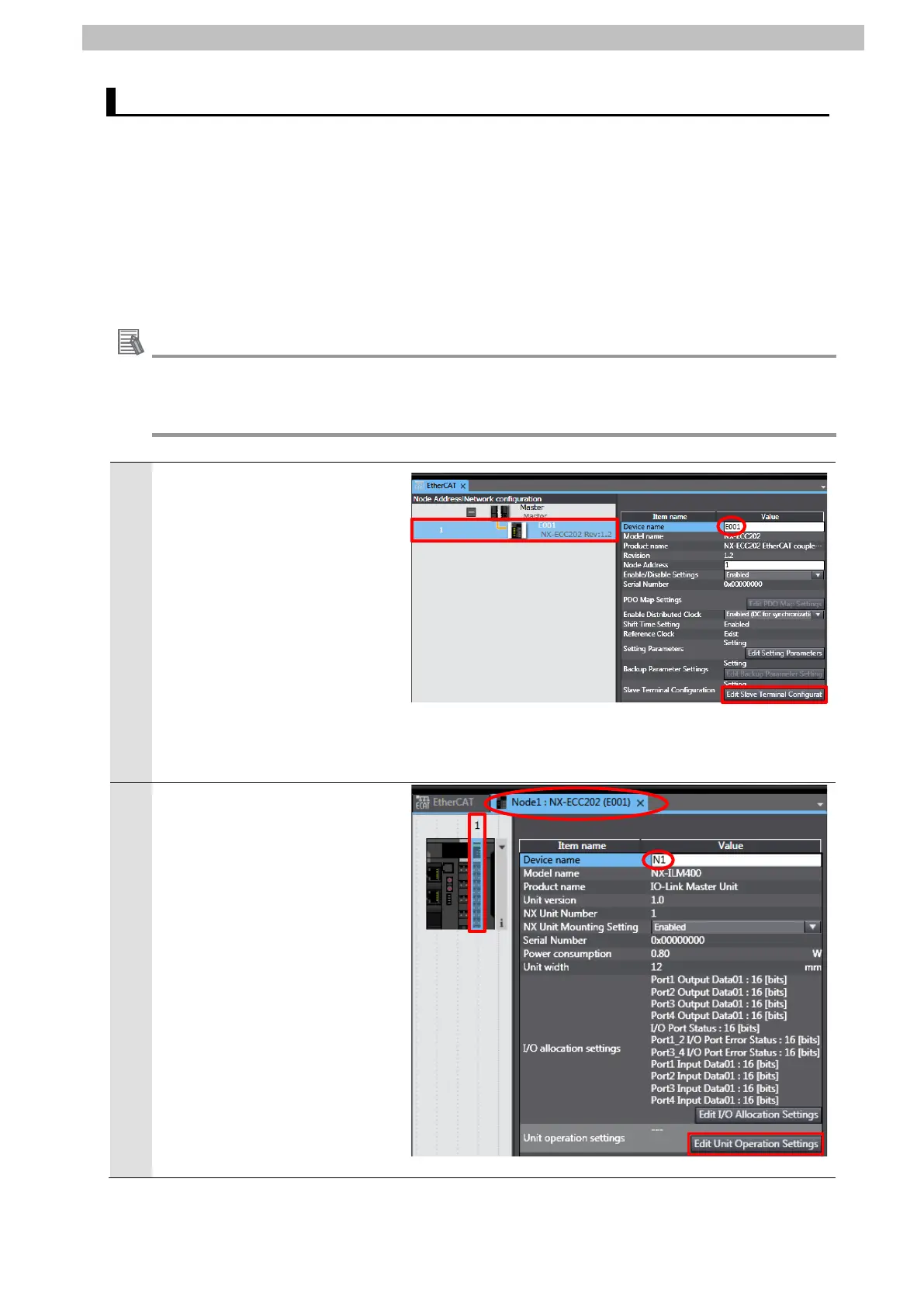

7.4. IO-Link Master Unit Setup
Set up IO-Link Master Unit.
Parameter Settings 7.4.1.
Set the parameters for IO-Link Master Unit.
In this document, the default values are used for the parameter settings of IO-Link Master Unit.
Check that IO-Link Mode is set as the communications mode for Port 1 to which Photoelectric
Sensor is connected.
Additional Information
If you use the functions such as the connected device verification and the backup and
restoration of parameter settings in IO-Link devices, refer to the NX-series IO-Link Master
Unit User’s Manual (Cat. No. W567) and the IO-Link System User’s Manual (Cat. No. W570).
1
Select NX-ECC202 Rev:1.2 on
the EtherCAT Tab Page in the
Edit Pane.
Check that the device name is
E001.
*The device name can be
changed as desired.
The device name you set is
used at the beginning of the
device variable name.
Click Edit Slave Terminal
Configuration.
2
The Node1:NX-ECC202 (E001)
Tab Page is displayed.
Select the NX Unit number 1
(IO-Link Master Unit).
The setting details are displayed
on the right side of the tab page.
Check that the device name is
N1.
*The device name can be
changed as desired.
The device name you set is
used at the beginning of the
device variable name.
Click Edit Unit Operation
Settings
.
